SM5389V

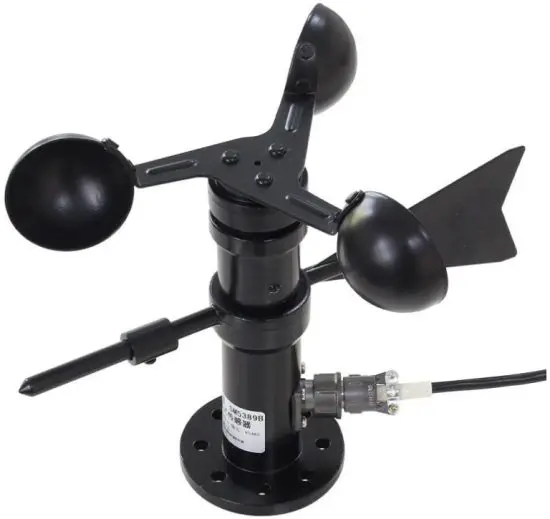

0-5V outdoor aluminum wind speed and direction integrated sensor
User Manual
File Version: V21.6.11

SM5389V uses the standard, easy access to PLC, DCS, and other instruments or systems for monitoring wind speed, and conductivity state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized.

RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.

Technical Parameters

Product Selection

Product DesignDC0-5V, DC0-10VMultiple output methods, the products are divided into the following models depending on the output method.

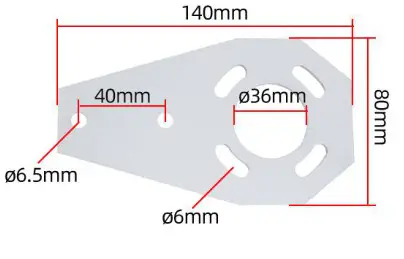

Product Size

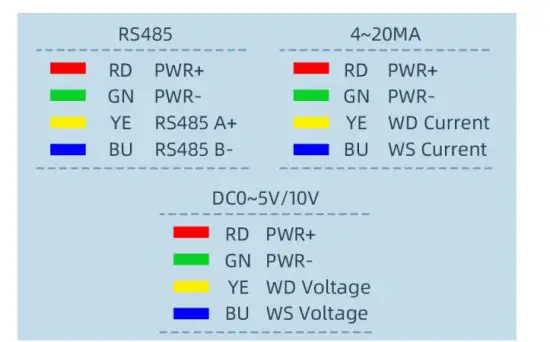

How to wiring?

Note: When wiring, connect the positive and negative poles of the power supply first and then connect the signal wire.

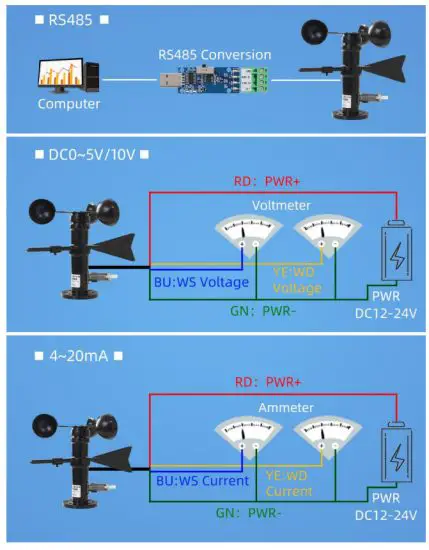

Application solution

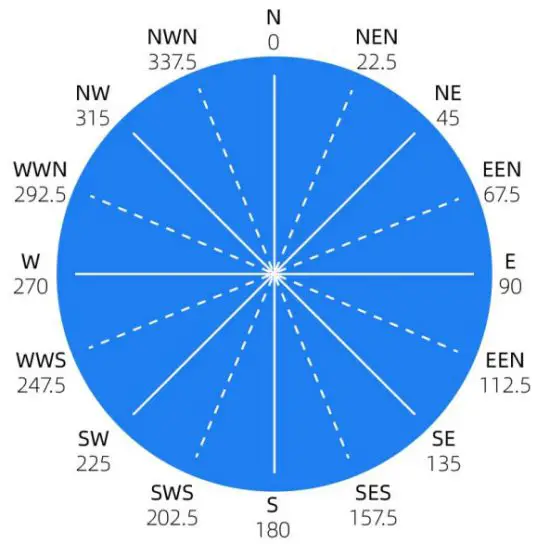

16- DIMENSIONAL MAP OF WIND DIRECTION

How to use it?

1. wind speed and DC0-5Vvoltage computing relationship.
   For example, the range is 0~30m/s, the analog output is 0~5V DC0-5Vvoltage signal, wind speed and
   DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is the DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated
   DC0-5Vvoltage value. The list of commonly used values is as follows:

   DC0-5Vvoltage(V)	wind speed value (m/s)	Calculation Process
   0	0	(30-0)*(0-0)÷ (5-0)+0
   1	6	(30-0)*(1-0)÷ (5-0)+0
   2	12	(30-0)*(2-0)÷ (5-0)+0
   3	18	(30-0)*(3-0)÷ (5-0)+0
   4	24	(30-0)*(4-0)÷ (5-0)+0
   5	30	(30-0)*(5-0)÷ (5-0)+0

   As shown in the above formula, when measuring 2.5V, the current DC0-5Vvoltage is 15m/s。

2. conductivity and DC0-5Vvoltage computing relationship
   For example, the range is 0~360°, the analog output is 0~5V DC0-5Vvoltage signal, conductivity and
   DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is the conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0 -5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated
   DC0-5Vvoltage value. The list of commonly used values is as follows:

   DC0-5Vvoltage(V)	conductivity value (°	Calculation Process
   0	0	(360-0)*(0-0)÷ (5-0)+0
   1	72	(360-0)*(1-0)÷ (5-0)+0
   2	144	(360-0)*(2-0)÷ (5-0)+0
   3	216	(360-0)*(3-0)÷ (5-0)+0
   4	288	(360-0)*(4-0)÷ (5-0)+0
   5	360	(360-0)*(5-0)÷ (5-0)+0

As shown in the above formula, when measuring 2.5V, the current DC0-5Vvoltage is 180°。

1. wind speed and DC0-10Vvoltage computing relationship.
   For example, the range is 0~30m/s, the analog output is 0~10V DC0-10Vvoltage signal, wind speed and DC0-10Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of th e range, B2 is DC0-10Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated DC0-10Vvoltage value. The list of commonly used values is as follows:

   DC0-10Vvoltage(V)	wind speedValue (m/s)	Calculation Process
   0	0	(30-0)*(0-0)÷ (10-0)+0
   1	3	(30-0)*(1-0)÷ (10-0)+0
   2	6	(30-0)*(2-0)÷ (10-0)+0
   3	9	(30-0)*(3-0)÷ (10-0)+0
   4	12	(30-0)*(4-0)÷ (10-0)+0
   5	15	(30-0)*(5-0)÷ (10-0)+0
   6	18	(30-0)*(6-0)÷ (10-0)+0
   7	21	(30-0)*(7-0)÷ (10-0)+0
   8	24	(30-0)*(8-0)÷ (10-0)+0
   9	27	(30-0)*(9-0)÷ (10-0)+0
   10	30	(30-0)*(10-0)÷ (10-0)+0

   As shown in the above formula, when measuring 5V, the current DC0-10Vvoltage is 15m/s。

2. conductivity and DC0-10Vvoltage computing relationship.
   For example, the range is 0~360°, the analog output is 0~10V DC0-10Vvoltage signal, conductivity, and DC0-10Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is D C0-10Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-10Vvoltage value. The list of commonly used values is as follows:

   DC0-10Vvoltage(V)	conductivityValue (°)	Calculation Process
   0	0	(360-0)*(0-0)÷ (10-0)+0
   1	36	(360-0)*(1-0)÷ (10-0)+0
   2	72	(360-0)*(2-0)÷ (10-0)+0
   3	108	(360-0)*(3-0)÷ (10-0)+0
   4	144	(360-0)*(4-0)÷ (10-0)+0
   5	180	(360-0)*(5-0)÷ (10-0)+0
   6	216	(360-0)*(6-0)÷ (10-0)+0
   7	252	(360-0)*(7-0)÷ (10-0)+0
   8	288	(360-0)*(8-0)÷ (10-0)+0
   9	324	(360-0)*(9-0)÷ (10-0)+0
   10	360	(360-0)*(10-0)÷ (10-0)+0

   As shown in the above formula, when measuring 5V, the current DC0-10Vvoltage is 180°。
