OWNER’S MANUAL
D89750 / DBH9750

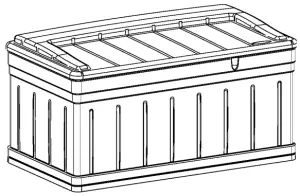

Ultra-Large Storage Bench

No Tools Required
WARNING

• Not intended for storage of flammable or caustic chemicals.
• Exercise caution when storing chemicals.
• Not intended for usage by children.
• This is not a toy box.
• To avoid the risk of suffocation, do not allow children to play inside the container.
• This product may become susceptible to impact damage in freezing temperatures.
• Do not store near excessive heat.
• Exercise caution when moving fully loaded products. This product is not intended for transporting heavy objects. Use as a stationary storage device only.
• Do not stand on the lid.

Assembly instructions

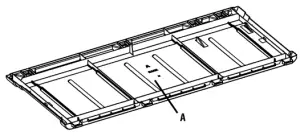

1. Place Back Panel A on the flat surface ribbed side up.

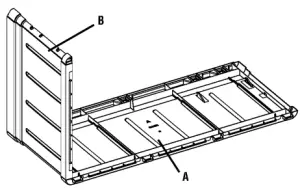

2. Place tabs of Side Panel B into corresponding hales on Back Panel A and apply pressure to snap into place.

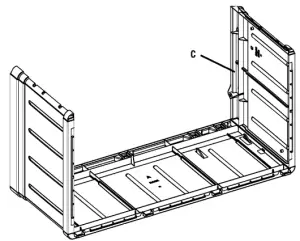

3. Place tabs of Side Panel C into corresponding hales of Back Panel A and apply pressure to snap into place.

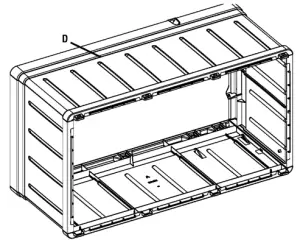

4. Place tabs of Side Panels B and C into corresponding hales of Front Panel D and apply pressure to snap into place.
   Base Panel (F) has two small hales. Turn panel so hales face the back of the unit (Back Panel A).

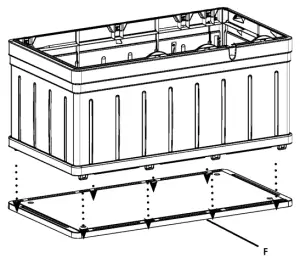

5. Without fully engaging the snap, set the assembled deck box body on top of Base Panel F by lining up the tabs with the corresponding hales. Once all tabs are correctly aligned begin to push the deck box body down to fully engage snaps.

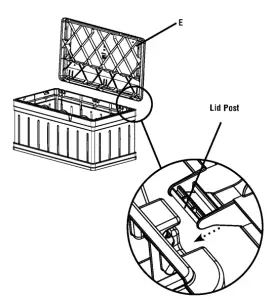

6. Hold Lid E in an open (vertical) position parallel with Back A, then insert lid post into the corresponding hinge in the back panel.  once all three lid posts are inserted let the lid slide down into the final position and close to engage.

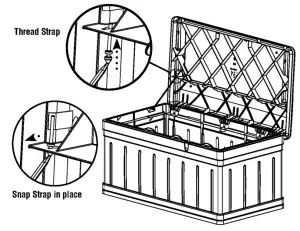

7. Grasp the Strap that is attached to Side B, thread the unattached end of the Strap through a hole in the lid. Pull Strap towards the front of the deck box to snap in place.
   Repeat with the second strap on the opposite side.

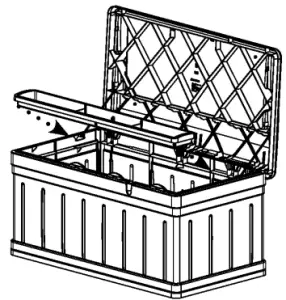

8. Set Tray inside assembled deck box.


D89750 / DBH9750

Suncast Products and Replacement Parts
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncast.com
24 hours a day, 7 days a week, 365 days a year.
1-800-846-2345 or 1-630-879-2050
