Gardner Bender Gbt-2502 Digital Battery Tester Instruction Manual

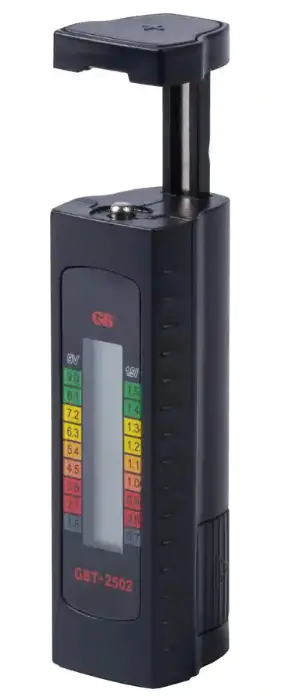

Gardner Bender GBT-2502 Digital Battery Tester

OPERATING INSTRUCTIONS

1.5V BATTERIES

1. Pull the test arm up.
2. Position the battery into the test arm (the battery’s + terminal faces up).
3. Gently press down the test arm until good contact is made between the battery and the tester.
4. Read the value on the right scale. The charge indicator displays the battery charge measured. Green: full, Yellow: moderate, Orange: low, Red: flat
5. When testing is complete, remove the battery from the test arm

9V BATTERIES

1. Touch the battery to the 9V test terminals at the bottom of the tester  (+ to +, and – to the – terminal)
2. Read the value on the left scale. The charge indicator displays the battery charge measured. Green: full, Yellow: moderate, Orange: low, Red: flat
3. When testing is complete, remove the battery from the test arm

Full instructions can be downloaded from: www.gardnerbender.com/en/resources

WARNING: READ OPERATING INSTRUCTIONS BEFORE USING. Cancer and Reproductive Harm
