Zamkol Zk706 Pro Portable Wireless Speaker User Manual

Zamkol ZK706 Pro Portable Wireless Speaker

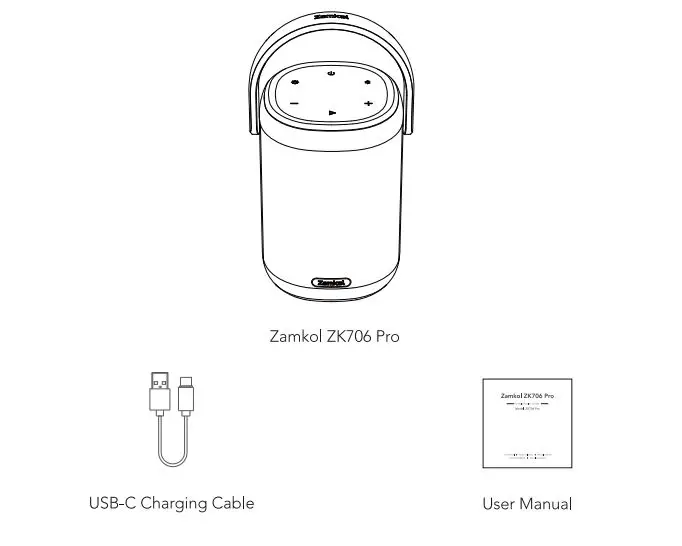

Packing List

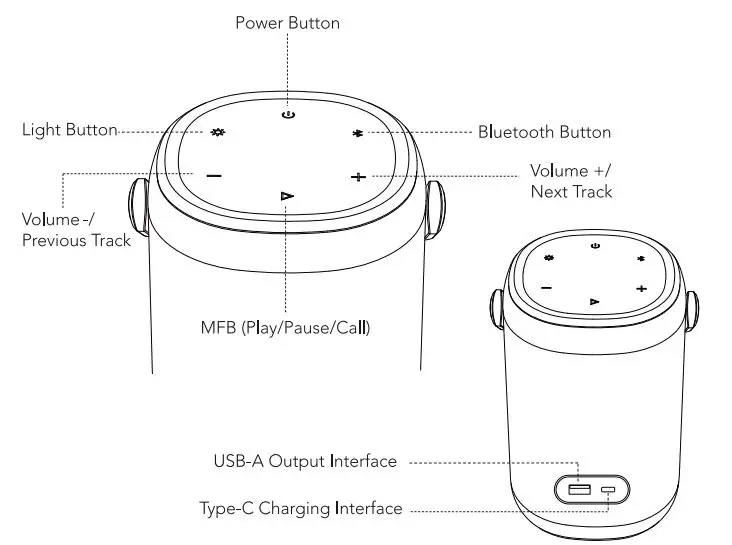

Product Illustration

Charging

Note:

•  Please fully charge the built-in battery before the first use.
•  When the battery is less than 10% power remaining, the speaker will power off automatically.

Buttons Overviews

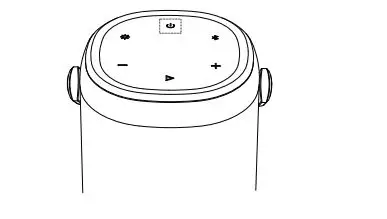

• Power Button


  (0)	Press and hold it for 2s	Power on	White light on
  		Power off	All LED indicators off

• Light Button


  Short press once

  Switching light patterns

• Volume Button


  ❖	Short press	Volume up
  	Press and hold it for 2s	Next track
  	Short press Press and hold it for 2s	Volume down Previous track

Multifunctional Button (MFB)

Bluetooth Button

Pairing Mode

1.  When powered on, the speaker automatically reconnects to the previously connected device.
2.  Go to Bluetooth settings on your mobile device, then search and select “Zamkol ZK706 Pro” from devices list.
3.  Once paired , the Bluetooth indicator will turn solid blue.

Note:

1.  Make sure that the speaker is within 10 meters from your mobile device.
2.  When powered on, the speaker will automatically reconnect to the last connected device.

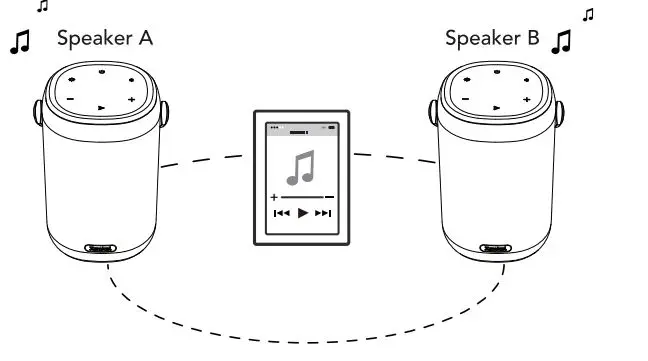

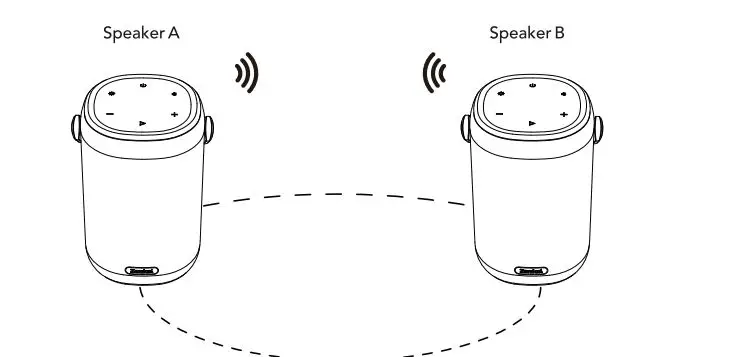

 True Wireless Stereo Connection between Two ZK706 Pro

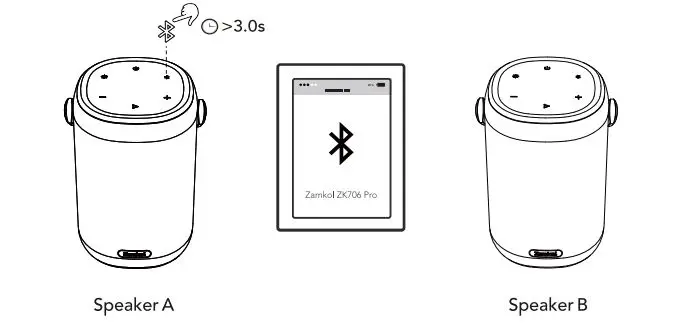

1.  Press and hold the ” * ” button for 3s to enter into True Wireless Stereo pairing mode as the host.
2.  Enable the Bluetooth on your device and connect to “Zamkol ZK706 Pro”, the stereo sound will play from both speakers.
3.  Once paired, the main speaker blue indicator light is always on.

Factory Reset and Reconnect

1.  If this speaker becomes disconnected or has another connecting problem, you can press and hold II Bluetooth II buttons simultaneously for 1 Os at least to clear the pairing of speaker and remove the old pairing in your Bluetooth device, and then pair again.
2.  If this speaker becomes out of control and can’t be powered off, you can press and hold the play button for 1 Os at least to reboot.

Product Specifications

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•  Consult the dealer or an experienced radio/fV technician for help

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
