Liftmaster 98022 Premium Series Dc Battery Backup Wall Mount Wi-fi Garage Door Opener User Manual

98022 Premium Series DC Battery Backup Wall Mount Wi-Fi Garage Door Opener

Product Information:

• Product Name: New Wall Mount Opener
• Model Number: 98022
• Features:
  • Space-saving design opens up the ceiling
  • Built-in Wi-Fi and Bluetooth for easy connectivity
  • myQ Remote LED Light provides maintenance-free
    illumination
  • myQ Mobile App allows users to receive alerts and control the
    opener from anywhere
• Quiet Operation:
  • Wall-Mount design
  • Powerful ultra-quiet DC motor eliminates noise and reduces
    vibrations
  • Reliable and smooth operation
• Reliability:
  • Integrated Battery backup ensures access even during a power
    outage
  • Lifetime motor warranty, 5-year parts warranty, and 1-year
    battery and accessories warranty
• Safety and Security Features:
  • Time-to-Close automatically closes the door after a
    user-defined amount of time
  • Security+ 2.0 safeguards garage access by sending a new code to
    the opener with every click
  • Motion Detector automatically turns on the light
  • The Protector System Auto-Reverses the Door if there’s an
    obstruction
• myQ Compatibility:
  • Use the myQ app to control, secure, and monitor your
    garage
  • Conveniently share and manage access to your home without
    sharing passcodes or keys
  • Connect to a trusted Dealer through the myQ app for service
    repair
• Included Accessories:
  • 827LM myQ Remote LED Light
  • 893MAX 3-Button Remote Control
  • 485LM Garage Door Opener Battery
  • 841LM Automatic Garage Door Lock
• Specifications:
  • Motor: Medium-Duty 12V DC, automatic thermal protection,
    permanent lubrication
  • Mechanics: Steel chassis and Plastic Cover, Internal Chain and
    Sproket Drive Mechanism (63:1 Gear Reduction), Auto-Force
    Adjustment for Changing Weather and Environmental Conditions
  • Power: 120V AC, 60 Hz voltage, 1.5A current rating, UL Listed,
    6′ power cord (3-prong)
  • Speed: 8.5 per second upward, 7.6 per second downward
  • Lighting: myQ remote LED Light – 1,500 lumens
  • Warranties: Lifetime – Motor, 5 Year – Parts, 1 Year – Battery
    and Accessories
• Security+ 2.0 Radio Controls:
  • Operating range: ~200′
  • Operating temperature: -31oF to 149oF
  • 3-Button Remote Control (893MAX)
  • Remote Control Code Format: Security+ 2.0, premium remote
    control
  • Garage Door Opener Code Format: Security+ 2.0
  • Anti-burglary coding
• Encrypted Controls:
  • Smart Control Panel (880 LMW)
  • Timer-to-Close
  • Program Remote Controls, Keypads, and myQ accessories
  • Maintenance Alert System
  • Easy Wi-Fi Setup
• myQ Radio:
  • 902-928 MHz 50-Channel FHSS (frequently hopping spread
    spectrum)
  • Provides 2-way communication between garage door opener and myQ
    accessories
  • Enables monitoring and control of garage door openers via
    smartphone or tablet

Product Usage Instructions:

1. Install the New Wall Mount Opener in your garage according to
   the installation instructions provided in the user manual.
2. Connect the opener to your home’s Wi-Fi network using the
   built-in Wi-Fi and Bluetooth capabilities.
3. Download and install the myQ Mobile App on your smartphone or
   tablet.
4. Open the myQ Mobile App and follow the setup instructions to
   connect the app to your garage door opener.
5. Use the myQ Mobile App to control and monitor your garage door
   opener from anywhere.
6. To open or close the garage door, use the 893MAX 3-Button
   Remote Control included in the package. This remote control can
   operate up to 3 garage door openers.
7. In case of a power outage, the integrated Battery backup will
   allow you to open and close your garage door using the opener.
8. For enhanced security, enable the Time-to-Close feature to
   automatically close the door after a user-defined amount of
   time.
9. The Security+ 2.0 feature safeguards garage access by sending a
   new code to the opener with every click, preventing unauthorized
   access.
10. The Motion Detector automatically turns on the light when
    motion is detected in the garage.
11. In case of an obstruction, The Protector System Auto-Reverses
    the Door to prevent accidents or damages.
12. Utilize the myQ app to conveniently manage access to your home
    without sharing passcodes or keys.
13. For service repair, easily connect to a trusted Dealer through
    the myQ app.

New Wall Mount Opener. No more Cable Tension Monitor.
Space Saving, Ultra Quiet. 98022
PRODUCT GUIDE

Improved DC Battery Backup Wall Mount Wi-Fi Garage Door Opener, Space-Saving, no Cable Tension Monitor, Heavy Lifting, LED Lighting System. 98022

Popular features
Smart – Space-saving design opens up the ceiling. – Built-in Wi-FI and Bluetooth for the easiest way to connect the garage. – myQ Remote LED Light provides
maintenance-free illumination. – myQ Mobile App lets users receive alerts
and control the opener from anywhere
Quiet Operation Wall-Mount design and a powerful ultra-quiet DC motor that eliminates noise and reduces vibrations through the ceiling while providing a reliable, smooth operation.

Reliable – Integrated Battery backup ensures access even when the powers out. – Unmatched warranty that includes lifetime motor,
5-year parts, and 1-year battery and accessories.
Safe and Secure – Time-to-Close automatically closes the door
after a user defined amount of time: 1min, 5min, 10min or custom. – Security+ 2.0 safeguards garage access by sending a new code to your garage door opener with every click. – Motion Detector automaically turns on the light. – The Protector System Auto-Reverses the Door if there’s an obstruction.

Do more with myQ
Use the myQ app to control, secure, and monitor your garage, and conveniently share and manage access to your home without sharing passcodes or keys. Also, take the hassle out of service repair and easily connect to a trusted Dealer through the myQ app.

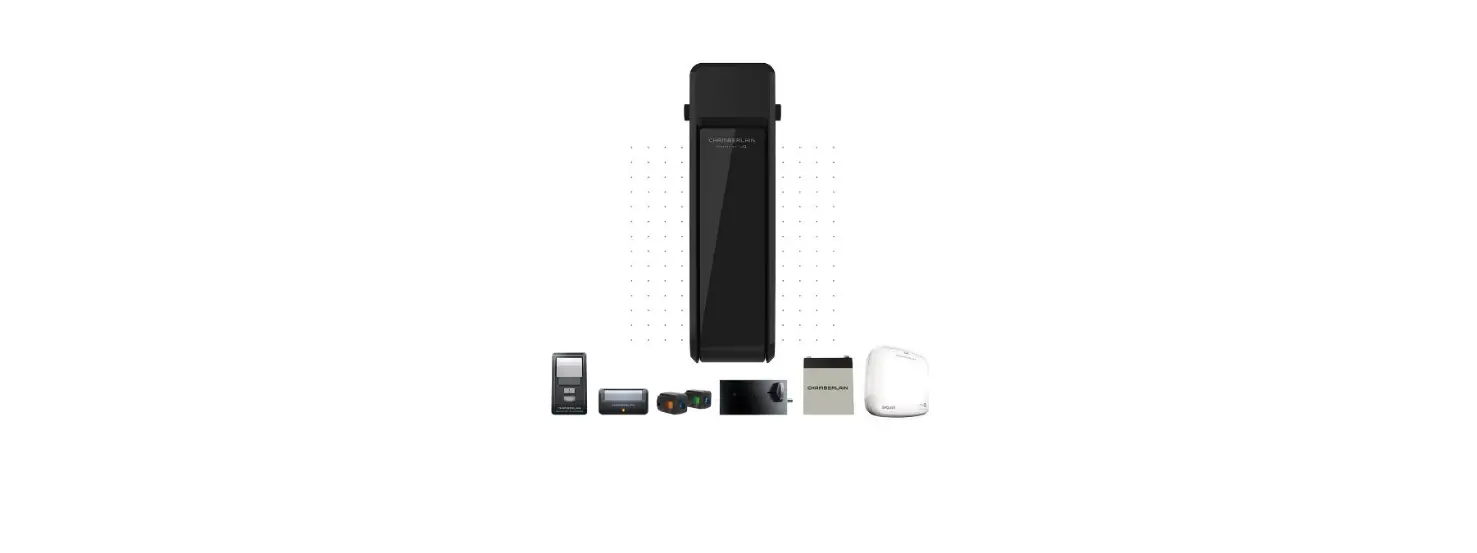

In the box
827LM myQ Remote LED Light Operates automatically with the opener and works with the myQ App.
893MAX 3-Button Remote Control Operates up to 3 garage door openers.

485LM Garage Door Opener Battery Integrated battery backup allows you to open and close your door even when the power is out.
841LM Automatic Garage Door Lock Deadbolts the garage door automatically every time it closes.
880LMW Smart Control Panel® Motion detector activates the Garage Door Opener lights as soon as movement is detected.

Specifications

Motor Medium-Duty 12V DC, automatic thermal protection, permanent lubrication
More Value Less Parts · No more Cable Tension Monitor means
faster and easier installation
Mechanics Steel chassis and Plastic Cover Internal Chain and Sproket Drive Mechanism
(63:1 Gear Reduction) Auto-Force Adjustment for Changing Weather
and Environmental Conditions DC Wi-Fi logic with built-in Bluetooth and
surge suppressor · Up to 850lbs lift capacity
Power 120V AC, 60 Hz voltage, 1.5A current rating, UL Listed, 6′ power cord (3-prong)
Speed 8.5″ per second upward, 7.6″ per second downward
Lighting myQ remote LED Light – 1,500 lumens
Dimensions · Opener head: 21.5″ H x 7.5″ W x 7.9″ L · Max. Door Height: 14ft. · Max. Door Width: 18ft · Headroom clearance required:
3in from Center of Torsion Bar · Max. Door Weight: 850lbs
Warranties Lifetime: Motor 5 Year: Parts 1 Year: Battery and Accessories

Security+ 2.0 Radio controls: Operating range ~200′; Operating temperature: -31oF to 149oF; 3-Button Remote Control (893MAX), Remote Control Code Format: Security+ 2.0, premium remote control; Garage Door Opener Code Format: Security+ 2.0; Anti-burglary coding.
Encrypted controls: Smart Control Panel (880 LMW), Timer-to-Close, Program Remote Controls, Keypads and myQ accessories, Maintenance Alert System, Easy Wi-Fi Setup.
myQ Radio 902-928 MHz 50-Channel FHSS (frequently hopping spread spectrum); Provides 2-way communication from garage door opener and myQ accessories; enables monitoring and control of garage door openers via smartphone or tablet.
HomeLink® compatible (version 4.0 or higher) May require an external adapter depending on the model and year of vehicle. Visit HomeLink.com for additional information.
Pallet Shipping Weight Qty 24 Units = 933lbs.
Carton (1) Carton1: 28″ L x 11.9″ W x 11.9″ H 38lbs. – Garage Door Opener Head (98022) – Smart Control Panel (880LMW) – 3-Button Remote Control (893MAX) – Automatic Garage Door Lock (841LM) – myQ Remote LED Light (827M)
