ROAV R5113 Anker Roav SmartCharge

Specifications

• Product Dimensions: 1.89 x 1.5 x 2.66 inches
• Item Weight: 1.44 ounces
• Connectivity technologies: Bluetooth, USB Special Features:  Car Charger,Dual Usb
• Brand: ROAV

Safety Instructions

SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions for the car charger (Model R5113)
Please read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply

• Read all instructions and cautionary markings before using this product.
• Do not expose to rain, moisture, or snow.
• Use of an attachment is not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons.
• Do not operate this car charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified service person.
• Do not disassemble this car charger; take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. lo reduce the risk of electric shock, unplug this car charger before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
• To reduce the risk of fire or electric shock, do not interconnect output terminations.
• Avoid long exposure to direct sunlight, which may cause damage to the device.
• Exposing this product to open flames may cause it to explode.
• Do not use this product in strong magnetic fields.
• Use a dry, soft lint-free cloth to clean. Do not use any corrosive cleaner or oil to clean.
• CAUTION – For continued protection against the risk of fire, replace only with the same type and ratings of fuse, fuse rating is 32V DC/5A.
• Always obey traffic laws and pay attention to the road. Do not attempt to use this device while driving, as some features are limited while the vehicle is in motion. Failure to pay full attention to the operation of your vehicle could result in death, serious injury, or property damage. You assume total responsibility and risk for using this device.

Introduction

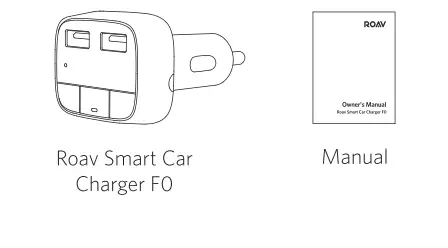

What’s Included

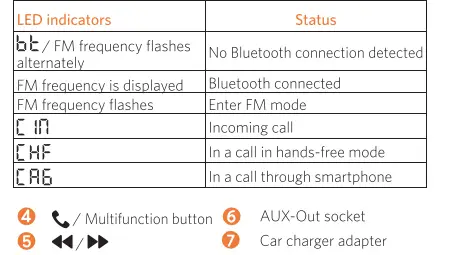

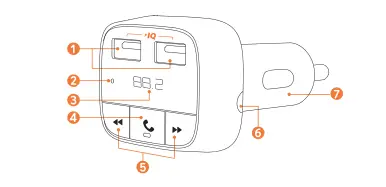

At a Glance

• USB charging port
• LED display
• Microphone

Press and hold for 3 seconds to power on/off.

Get Started

1. Plug Roav smart car charger FO into your vehicle’s cigarette lighter socket.

2. Start your vehicle’s engine and the LED display will light up. E/FM frequency will flash alternately.

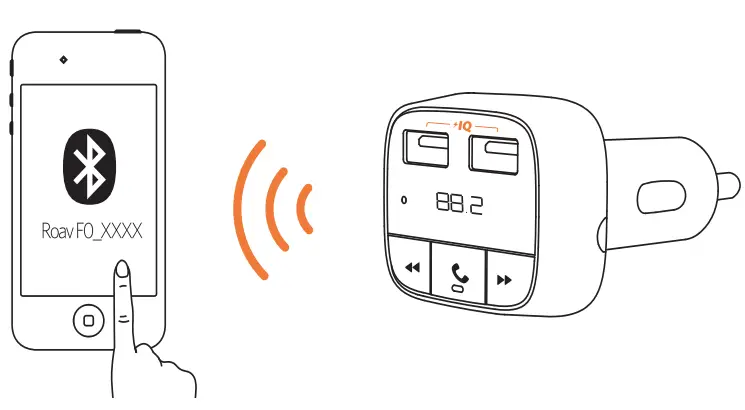

3. Enable Bluetooth on your smartphone and search for available Bluetooth devices. Select “Roav FO_XXXX”and connect. Once successfully connected, the FM frequency will be displayed.

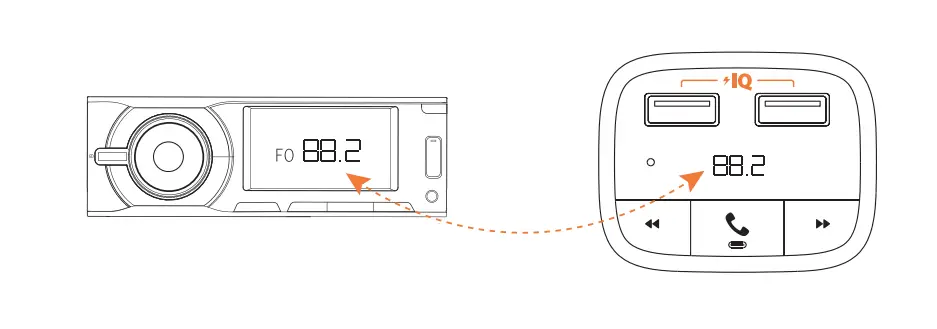

4. Turn on the FM radio on your car audio deck and tune to an unoccupied frequency (you should hear white noise). Press and hold the multifunction button on FO until the FM frequency flashes. Press or hold 44/until the transmitting frequency matches the frequency your car stereo is tuned to.

Play Music
When FO is successfully connected with your smartphone, you can play music from your phone. Music can then be streamed to your car’s audio system via FM transmitter or Aux-Out socket.

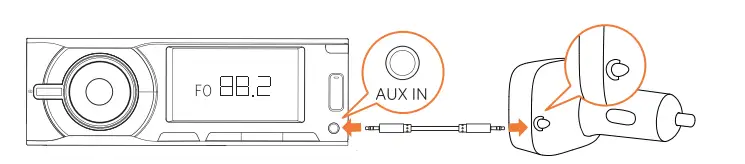

To further reduce echo and cabin noise on your calls and music, you can connect a 3.5 mm AUX cable (not provided) to the AUX-Out socket of the car charger and the AUX-In socket of your car’s audio system.

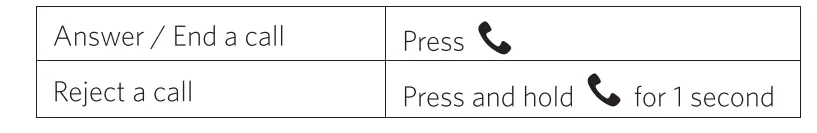

Make Hands-Free Calls
When the car charger is successfully connected with your smartphone, you can enjoy convenient hands-free call.

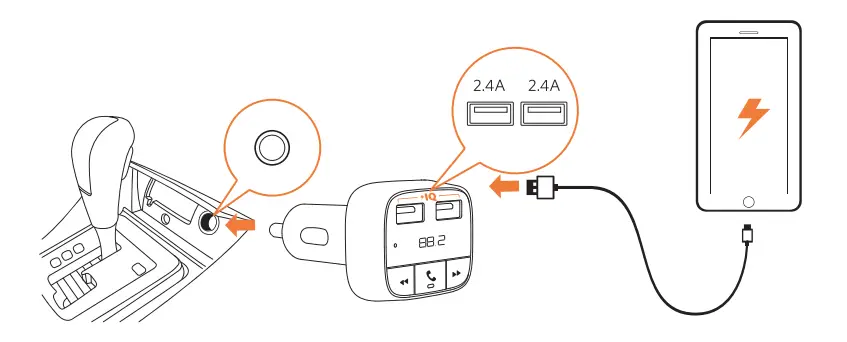

Charge Your Devices

The car charger is equipped with two USB charging ports. You can charge two devices simultaneously with a maxımum output to 5V/4.8A.

Specifications

• DC input: 12V – 24V
• Power output: 5V =4.8A max
• Bluetooth: V4.2
• Bluetooth transmission distance: 10 m/ 393.7 in
• FM frequency range: 87.5-108 MHz
• FM transmission range: 2 m/ 78.7 in
• Operating temperature range:-20°C to 40°C/-4°F to 104°F
• Storage temperature range: -40°C to 85°C/-40°F to 185°F

Notice
This product complies with the radio interference equirements of the European Community.

Declaration of Conformity
Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site www.goroav.com

This product can be used across EU member states. The product shall only be connected to a USB Intertace of version 2.0 or higher. The device complies with RF specifications when the device used at 20mm from your body.
BT Operating Frequency Range: 2402-2480 MHz; BT Max Output Power: 8dBm

This product is designed and manutactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning
 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not ocCur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Keorient or relocate the receivin8 antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

The following importer is the responsible party:

Company Name: Fantasia Trading LLC

• Address: 9155 Archibald Avenue, Suite 202,
• Rancho Cucamonga, CA 91730, USA
• Telephone:1-909-484-1530

Trademark
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S., and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
