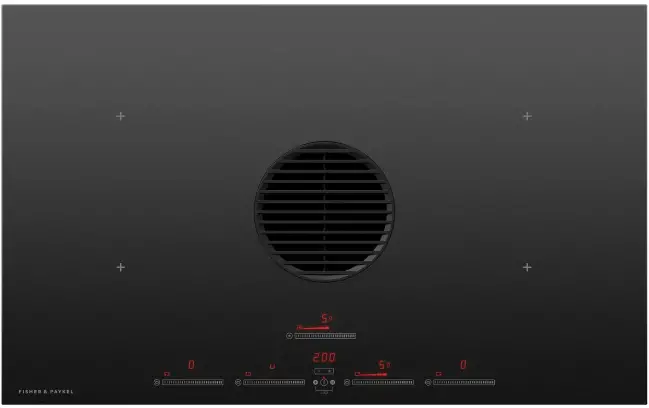

FISHER PAYKEL CID834DTB4 4 Zones with Integrated Ventilation 83cm Induction Cooktop User Guide
A true two-in-one appliance, this cooktop combines the precision of induction cooking with powerful extraction in one seamless, stylish cooktop.
- Seamless kitchen integration, without the need for overhead ventilation
- Four cooking zones, including simple pairing of two zones to create a SmartZone
- With nine fan speeds plus boost, select the perfect extraction rate for your cooking
- Minimal style, sleek black glass finish to suit any kitchen design
DIMENSIONS
| Height | 217mm |
| Width | 830mm |
| Depth | 515mm |
FEATURES & BENEFITS
Seamless integration
Offering true design freedom, this cooktop can be placed anywhere – eliminating the need for bulky overhead ventilation and helping to create a seamless flow between kitchen and living spaces. Installed raised or flush, it’s perfect for islands, or homes with high ceilings
Elegant design
<>
Precise control
Fisher & Paykel induction cooktops offer extremely accurate temperature control from very high to very low heats, so you can sear, sauté and temper like a pro. Touch&Slide controls react immediately when you adjust the temperature, so you can go from a boil to a simmer in seconds.
Effective extraction
Designed for busy homes, the integrated ventilation works effectively and unobtrusively in the background. Featuring nine fan speeds, plus a boost function, for quickly removing odours and steam.
Safety of induction
Induction cooktops only start heating your pot or pan once you’ve placed it on the surface and stop as soon as you remove it – so they are safer for everyone.
Ease of use
Designed for simple removal, the grease filter tray effectively captures spills, while the single glass cooking surface can be easily wiped clean. A flush ventilation grille allows pots to effortlessly slide across the cooktop surface.
Superior efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the cooktop surface. This makes induction cooking more energy-efficient than electric or gas cooktops.
SPECIFICATIONS
Accessories
| Recirculation kit | 82236 KRCID834 (optional) |
| Replacement recirculation filter | 50182 FRO-DD (optional) |
| Square grille & butterfly valve | 82393 DO-G-SS (optional) |
Cleaning
| Dishwasher safe grease filter | • |
| Flat easy clean glass surface | • |
| Flush grille | • |
| Pan detection system | • |
Controls
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
Downdraft performance
| Air outlet size | 220mm W x 90 mm H |
| Air speeds | 9 + boost |
| Ducted externally | • |
| Ducting direction | Side, Rear |
| Maximum air flow (Boost) | 660m³/hr |
| Maximum air flow (Level 9) | 623m³/hr |
| Maximum noise level (Boost) | 70dBA |
| Maximum noise level (Level 9) | 69dBA |
| Minimum air flow | 192m³/hr |
| Minimum noise level | 38dBA |
| Motor type | • |
Ducting Accessories (optional)
| Duct 1m Connector 222×89 | 82389 D1-C-222-89 |
| Ducting adaptor | 82392 DA-219-98-150 |
| Elbow 90° horizontal 222×89 | 82390 E90-H-222-89 |
| Elbow 90° vertical 222×89 | 82391 E90-V-222-89 |
Performance
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| Pause function | • |
| PowerBoost | • |
| SmartZone | • |
Power requirements
| Amperage | 32A |
| Electrical connection | Terminal block |
| Maximum power | 7.4kW |
| Supply frequency | 60Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 515mm |
| Height | 217mm |
| Width | 830mm |
Safety
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Surface hot indicators | • |
Warranty
| Parts and labour | 2 years |
Zone ratings
| Left front | 2100W |
| Left front zone (PowerBoost | 3000W |
| Left rear | 2100W |
| Left rear zone (PowerBoost | 3000W |
| Right front | 2100W |
| Right front zone (PowerBoost | 3000W |
| Right rear | 2100W |
| Right rear zone (PowerBoost | 3000W |
| SmartZone | 3700W |
Zones
| Number of elements | 4 |
| SKU | 82228 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
