User Manual
CONTINENTAL
WLC
Wireless Power Charger
WLC-CEM02
System description
Continental Wireless Power Charger is developed for automotive applications under the name WLC. It includes one function:
– WPC: Wireless Power Charging
WPC parameters
| Parameters | Values |
| Carrier frequency | 126.7 kHz |
| Frequency shift | +/-6 kHz |
| Supply voltage | 13.5V battery |
| Voltage supply range | 8V < VBAT < 16V |
| Max. supply power | 33W |
| Operating temperature range* | -40°C < Temp < 85°C |
| Smartphone operating temperature range Smartphone operating temperature range | -20°C < Temp < 60°C |
| Max. Output Power on receiver load** | 11W |
| WPC chipset brand | Renesas |
| WPC litz coil | Single coil MPA14 according to Qi standard |
| WPC litz coil gain @ 126.7kHz | -108.3dBi |
| Dimensions (X/Y/Z in mm) | 142 x 91.5 x 23.5 |
| Product weight | 150 g |
| Vehicle fuse protection | 10:00 AM |
Vehicle installation

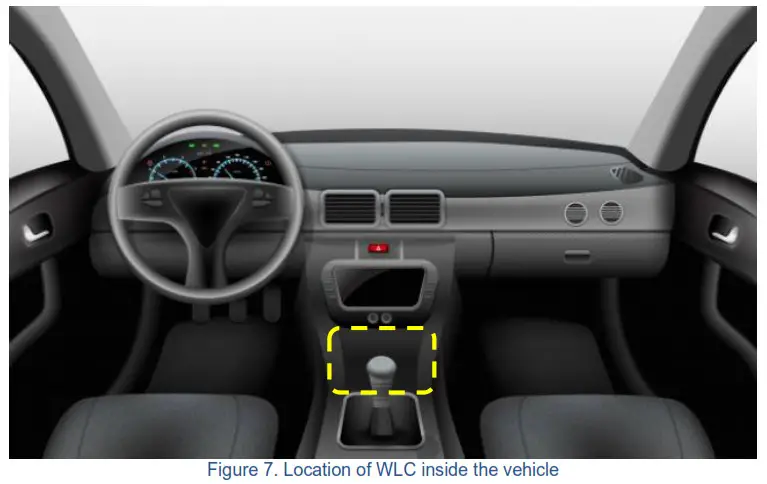

Although the WLC module is intended for different vehicles, it is always installed in the vehicle front central console (see an example in Figure 7).

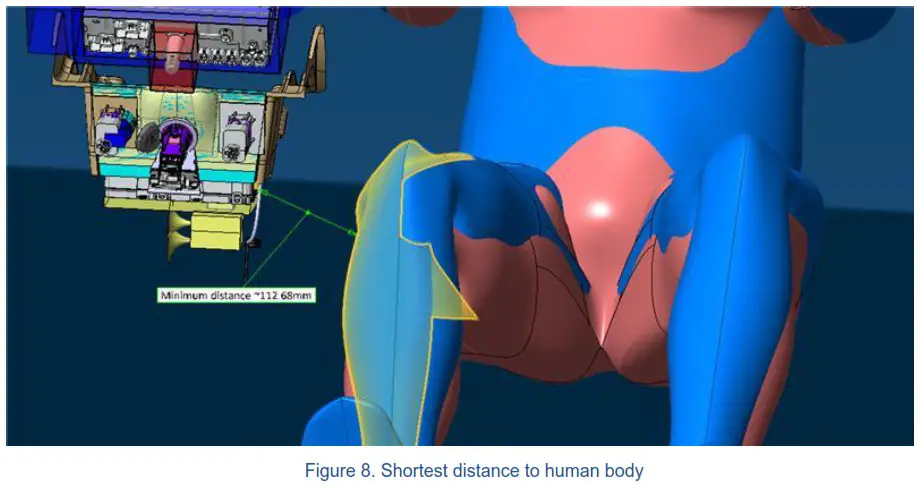

The installation with the shortest distance to the human body is illustrated in Figure 8: 11.26cm.
Figure 8. Shortest distance to the human body
Warning statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate the equipment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada’s license-exempt RSS. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
