Harley Benton Hbac-20 Acoustic Guitar Combo User Manual

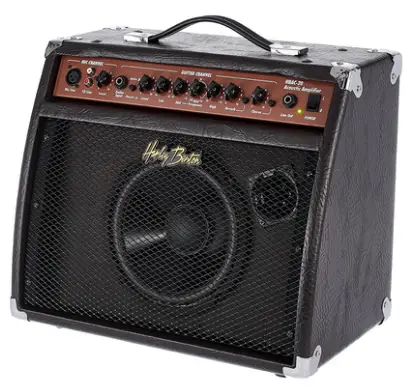

Harley Benton HBAC-20 Acoustic Guitar Combo

ABOUT COMPANY

• Thomann GmbH
• Hans-Thomann-Straße 1 96138 Burgebrach
• Germany
• Telephone: +49 (0) 9546 9223-0
• Internet: www.thomann.de
• 18.08.2022, ID: 117741 (V4)

General information

• This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual.
• Our products and user manuals are subject to a process of continuous development. We there‐fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de.

Further information
On our website (www.thomann.de) you will find lots of further information and details on the following points:

Notational conventions
This manual uses the following notational conventions:

• Lettering: The lettering for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button.

Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.

Safety instructions

Intended use

• This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
• This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.

Safety

• DANGER!
  • Danger for children
  • Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • They could swallow the pieces and choke! Never let children unattended use electrical devices.
• DANGER!
  • Electric shock caused by high voltages inside
  • Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
• DANGER!
  • Electric shock caused by short-circuit
  • Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.
• CAUTION!
  • Possible hearing damage
  • The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sufficient ear protectors.
• NOTICE!
  • Risk of fire
  • Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames.
• NOTICE!
  • Operating conditions
  • This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter
  • ‘Technical specifications’ of this user manual. Avoid heavy temperature fluctuations and do not switch the device on immediately after it was exposed to temperature fluctuations (for example after transport at low outside temperatures). Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction.
• NOTICE!
  • Power supply
  • Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire.
• NOTICE!
  • Possible damage due to installation of a wrong fuse
  • The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
• NOTICE!
  • Possible staining
  • The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if necessary, i.e. felt pads or similar.

Features

Special features of this device:

• 20 watt output power
• 8″ woofer plus tweeter
• Inputs
  • XLR microphone / line input with dedicated volume control
  • RCA CD / line input
  • 1/4″ guitar input, active / passive switchable
• 3-band EQ with parametric mids
• Reverb and chorus switchable and adjustable
• Line out
• Energy-saving mode

Installation and starting up

• Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
• Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards.
  NOTICE!
  • Possible property damage by magnetic fields
  • Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.

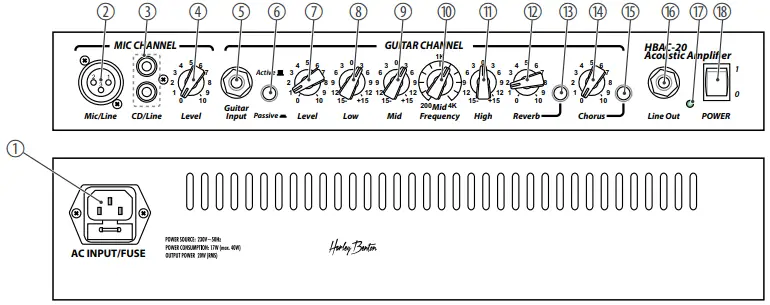

Connections and controls

Technical specifications

Plug and connection assignment

Introduction

• This chapter will help you select the right cables and plugs to connect your valuable equiment in such a way that a perfect sound experience is ensured.
• Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’ in poor transmission quality!

1/4″ TS phone plug (mono, unbalanced)

XLR plug (balanced)

RCA connection
Drawing and table indicate the pin assignment of an RCA plug.

Protecting the environment

Disposal of the packaging mate‐rial

• For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
• Ensure that plastic bags, packaging, etc. are properly disposed of.
• Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of your old device

• This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.
• Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
