FOS Tornado Pro Bekafun
Caution!
- Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
- Keep this device away from rain and moisture!
- Make sure it is grounded when using it!
- Unplug mains lead before opening the housing!
- For your own safety, please read this user manual carefully before you initial start-up.
Introduction
Thank you for having chosen this Item. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
What’s included
- 1x FOS Tornado Pro
- 1x Power Cord
- 1x Signal cable
- 1x User Manual
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain the condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Always disconnect from the mains, when the device is not in use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts inside the device.
Specifications
- Voltage: AC 100-240V 50/60Hz
- Power consumption: 400W
- Source: 96*5W cool white LEDs.8 zones / 672*0.3W RGB SMD LEDs,16 zones
- Beam angle: 120°
- LED Lifespan: 50,000 hours
- Operating modes: DMX, Auto, Manual, Master/Slave
- DMX channels: 12/59ch
- Signal connectors: 3pin XLR In/Out IP65, Seetronic
- Power connectors: PowerCon In/Out IP65, Seetronic
- IP ratding: IP65 for indoor and outdoor use
- Dimensions: 546 x 257 x 132 mm
- N.W: 9.5kg
- G.W: 12kg

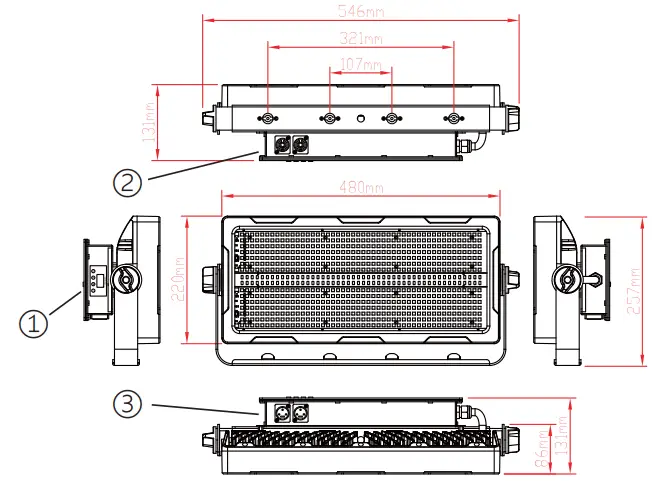

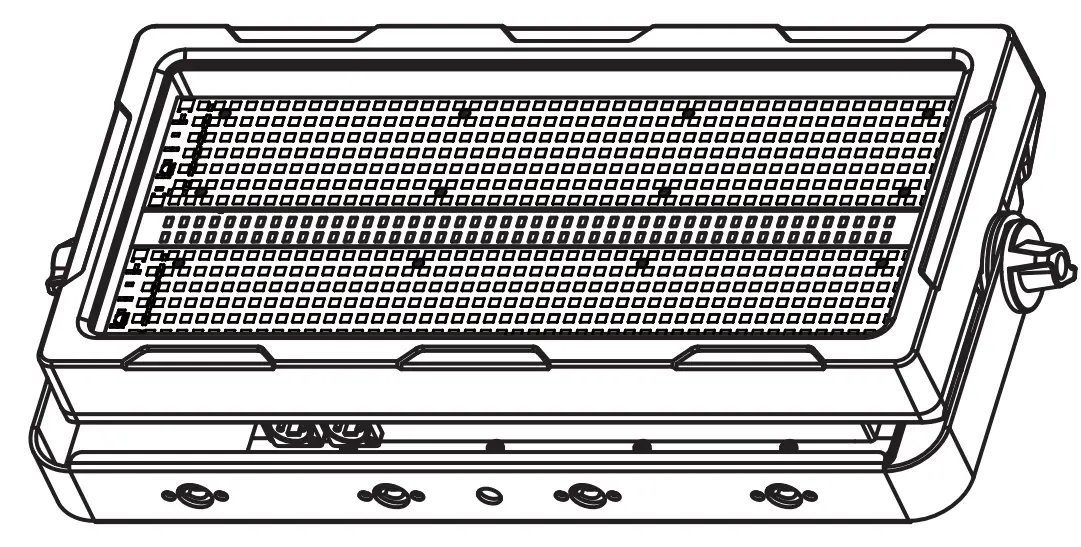

PRODUCT OVERVIEW
- Control panel
- Power In/Out
- DMX In/Out

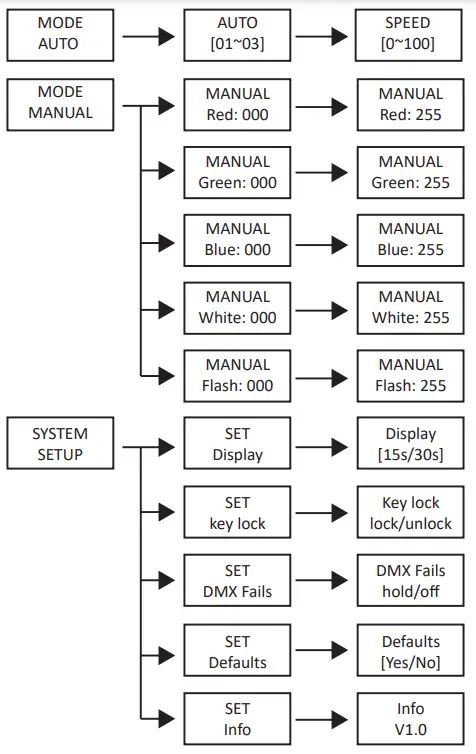

CONTROL PANEL
- [MENU] Main menu to select or return to the previous menu
- [UP] Menu selection or parameter increase
- [DOWN] Menu selection or parameter decrease
- [ENTER] OK / enter or select sub menu
DMX Channel and FuncƟon List
12 DMX channels
| CH1 | 0-255 | Master dimming (0-100%) |
| CH2 | 0-255 | Stroboscope(RGB) (Rate 0-100%) |
| CH3 | 0-255 | Red (0-100%) |
| CH4 | 0-255 | Green (0-100%) |
| CH5 | 0-255 | Blue (0-100%) |
| CH6 | 0-255 | Stroboscope(W) (Rate 0-100%) |
| CH7 | 0-255 | White (0-100%) |
| CH8 | 0-9 | No function |
| 10-255 | RGB color 1-17 | |
| CH9 | 0-9 | No function |
| 10-19 | RGB Auto program1 | |
| 20-29 | RGB Auto program2 | |
| 30-39 | RGB Auto program3 | |
| 40-49 | RGB Auto program4 | |
| 50-59 | RGB Auto program5 | |
| 60-69 | RGB Auto program6 | |
| 70-79 | RGB Auto program7 | |
| 80-89 | RGB Auto program8 | |
| 90-99 | RGB Auto program9 | |
| 100-109 | RGB Auto program10 | |
| 110-119 | RGB Auto program11 | |
| 120-129 | RGB Auto program12 | |
| 130-139 | RGB Auto program13 | |
| 140-149 | RGB Auto program14 | |
| 150-255 | RGB Auto program15 | |
| CH10 | 0-255 | CH9 Speed |
| CH11 | 0-9 | No function |
| 10-49 | White LED Auto program1 | |
| 50-99 | White LED Auto program2 | |
| 100-149 | White LED Auto program3 | |
| 150-199 | White LEDAuto program4 | |
| 200-255 | White LED Auto program5 | |
| CH12 | 0-255 | CH11 Speed |
59 DMX channels
| Channel | DMX Value | Functions |
| CH1 | 0-255 | Master dimmer 0-100% |
| CH2 | 0-255 | White LED1 0-100% |
| CH9 | 0-255 | White LED8 0-100% |
| CH10 | 0-255 | White LED strobe from slow to fast |
| CH11 | 0-255 | RGB Zone 1 Red 0-100% |
| CH12 | 0-255 | RGB Zone 1 Green 0-100% |
| CH13 | 0-255 | RGB Zone 1 Blue 0-100% |
| CH56 | 0-255 | RGB Zone 16 Red 0-100% |
| CH57 | 0-255 | RGB Zone 16 Green 0-100% |
| CH58 | 0-255 | RGB Zone 16 Blue 0-100% |
| CH59 | 0-255 | All RGB LED strobe from slow to fast |
