LEVELLA PFR Serise Chest Freezer
User Manual

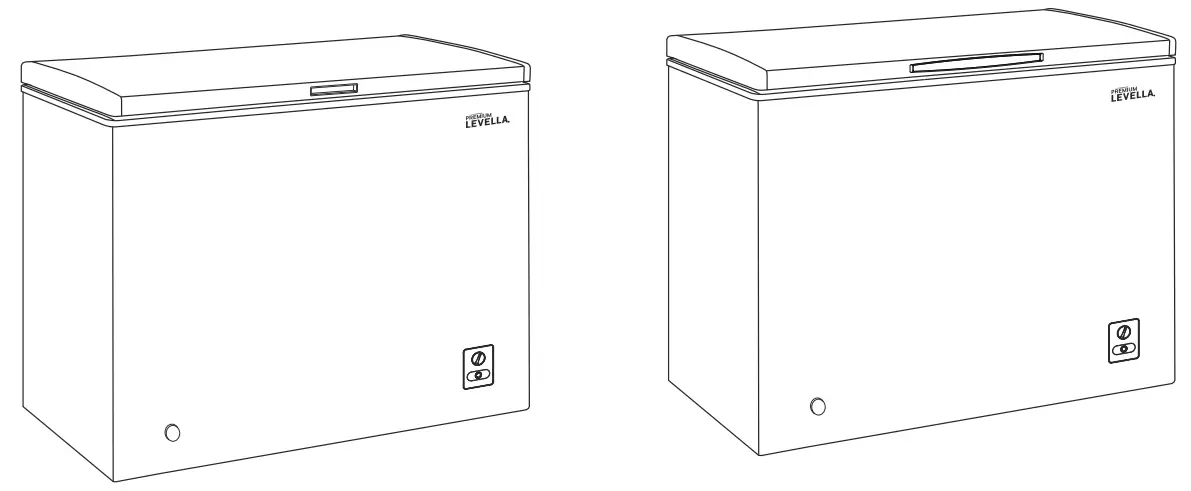

PFR Serise Chest Freezer

Model:PFR35700W
PFR50700W
PFR70700W
PFR10700W
PFR122700W
PFR140700W
CHEST FREEZER
CONGELADOR HORIZONTALUSER MANUAL
Use and care manual.
Important safeguards.
This product is for domestic use only.

IMPORTANT SAFETY INSTRUCTIONS

WARNING
To reduce the risk of fire, electrical shock, or injury when using your freezer, follow these basic precautions:

• Read all instructions before using the freezer.
• DANGER or WARNINGRisk of child entrapment.
• To avoid the possibility of child entrapment, please take the following precautions before throwing out the freezer.
  -Remove all doors from the unit.
  -Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the freezer.
• Refrigerants: All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal of product. It is the consumer’s responsibility to comply with federal and local regulations when disposing of this product.
• Never clean freezer parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other freezer. The fumes can create a fire hazard or an explosion.

-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Freezer

• Remove the exterior and interior packing.
• During use, place the refrigerator at a distance of 150mm or more from obstacles
• Check to be sure you have all of the following parts:
  • Storage Basket
  • Instruction Manual
• Before connecting the freezer to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

To reduce the risk of risk, electrical shock, or injury follow these basic precautions when using your refrigerator
WARNING
WARNING  Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING Do not damage the refrigerant circuit to increase the risk of a leak when handle, move, clean and use of refrigerator.
WARNING Do not use electrical appliances inside the food storage compartments of the appliances, unless they are of the type recommended by the manufacturer.
WARNING DANGER: Never allow children to play with, operate, or crawl inside the refrigerator. Risk of child entrapment.

• The appliance has to be unplugged before carrying out user maintenance on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance should not be made by children without supervision
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard. 2
• Please abandon the refrigerator according to local regulations as the unit contains flammable blowing gas and refrigerant.
• Follow local regulations regarding disposal of the appliance due to flammable refrigerant and blowing gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer’s responsibility to comply with federal and local regulations when disposing of this product
• Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity of refrigerator.
• Do not use extension cords or ungrounded (two prong) adapters with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the unit’s performance 14) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Before you throw away your old refrigerator or freezer:

• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar environments; such as:

• Staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Electrical Connection
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.
This freezer should be properly grounded for your safety.
The power cord of this freezer is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Transportation and Placement
When transporting the chest freezer from one place to another, the inclination of the cabinet should not exceed 45 degrees to prevent against compressor or system damage.
Before use, remove all the packing material. The back side of the cabinet should be more than 20cm away from the wall, both flank sides more than 20cm.
  The freezer should be put in a well-ventilated, dry place. Do not place it under direct sunshine. The freezer should be kept away from the water sink, heat sources and any volatile or corrosive material.
Power source and test-running
Specified capacity of the wire is 7A. Section squares of the wire is 0.82mm2. Single line or compound lines are all allowed. A fuse of 2.5A specified electric current should be installed. (Power cord should be replaced with the same of 7A and 0.82mm2 if it is damaged).
Single-phase power supply, 60Hz, voltage range 98~122V. If the voltage is unstable, please install a voltage stabilizer with capacity above 1000W.
  Avoid turning the power on and off too frequently. If the power is turned off, wait an interval of 5 minutes before turning it on again.
When the freezer is going to be out of use for a long time, disconnect the power first, remove all its contents and then clean it. Please examine the circuit whether it is in perfect conditions before reuse.
Operation of the Temperature Control Knob
The temperature inside the cabinet can be controlled with the temperature control knob.
  The knob should be kept upright normally to adjust the temperature.”MAX”is the coldest freezing setting and is suitable for fast freezing.
Do not keep the knob at this point for long.
“1”: temperature inside the freezer cabinet is around -10
“2”: temperature inside the freezer cabinet is around -12
“3”: temperature inside the freezer cabinet is around -15
“4”: temperature inside the freezer cabinet is around -18
“5”: temperature inside the freezer cabinet is around -20 Factory setting
“6”: temperature inside the freezer cabinet is around -22
“7”: temperature inside the freezer cabinet is around -25
Food storage
Allow space between the foods stored in the cabinet, and between the foods and the inner surface of the cabinet to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or canned beverages with freezing points above the temperature in the cabinet when it is below zero.
  For foods that should be moisture-free or lose water easily, wrap them up in airtight food bags or containers before putting in the cabinet to avoid smell-mixing and reduce frosting.
Storage of volatile and combustible gases, liquids such as strong alkalis, strong acids, petrol, etc. is not allowed.

Maintenance

The freezer should be cleaned regularly. When cleaning, turn off the power,  take out all the food from the cabinet, and clean the inside using water or a little neutral detergent.
Do not use boiling water, acid, chemical diluents, petrol, oil, or dirt- removing powder.
Dry it after cleaning.
Use light soap water when cleaning the door seal and apply a little of talcum powder on it after natural drying to extend its service life.
Use a soft cloth with water or a little detergent to clean the exterior surface.
Note: Keep the power supply and connecting wires away from water to avoid electric shock.
Those who are not a service technician should not take apart and repair the freezer on their own to avoid additional trouble. Unauthorized repairs of electrical parts as compressor, temperature controller is forbidden.
Defrosting
For better freezing efficiency, defrost when the frost film inside the cabinet is 4-5mm thick.
When defrosting, turn off the power, take out the frozen foods, open the door for warming and melting. Use a soft cloth to absorb water and clean it up.
Do not use sharp metal tools as steel brushes to clean the frost film when defrosting to avoid evaporator damage.

Trouble shooting

The following are not failures:
When the freezer is working or after is stops for a while, the refrigerant in the pipes is cycling and produces “running water” sounds.
The surface temperature of the compressor may be up 70~80 when it is working.
The back side of the freezer gives out heat.
In rainy season, the outer surface of the cabinet may have dew, which is not a defect on normal use. Just dry it with a piece of cloth.

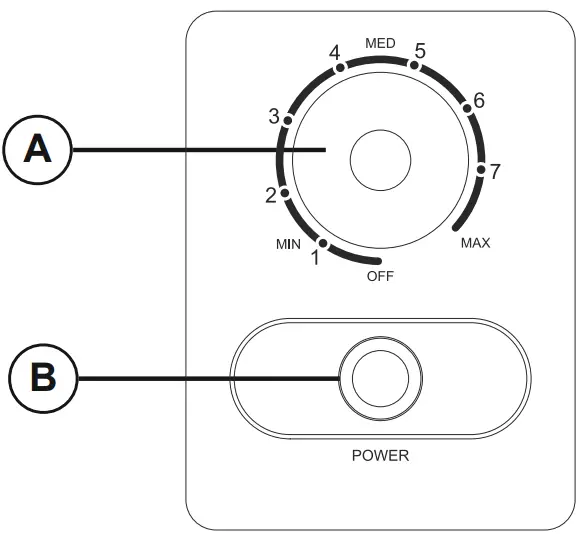

Control Panel
(A) ­ THERMOSTAT: regulates the temperature inside the freezer cabinet.
(B) – POWER INDICATOR: indicates that the freezer is in operation.
