How it work?

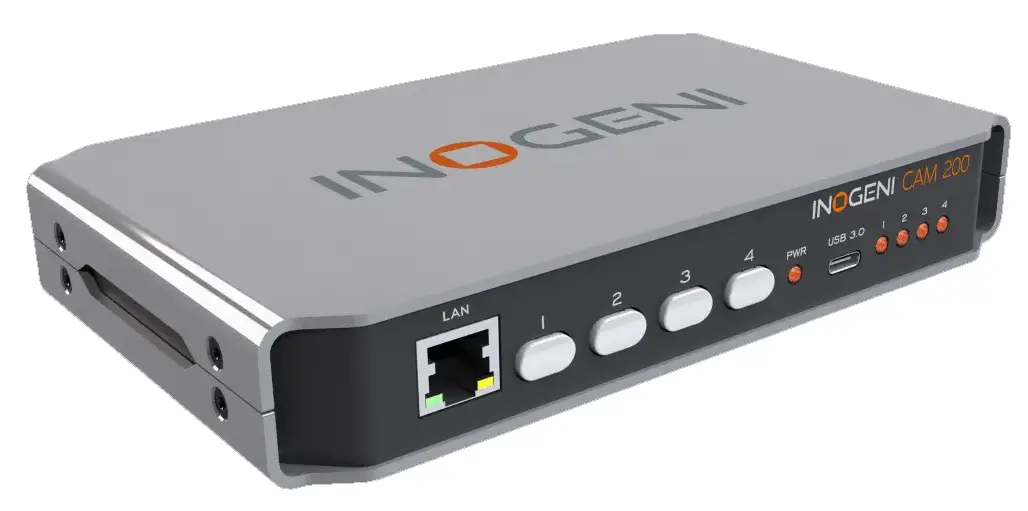

The INOGENI REMOTE is a device that can control the mixing function of SHARE2/SHARE2U and the switching function of CAM devices. You just need to apply the correct wiring between the REMOTE and the INOGENI device. You will then be able to communicate with the device using the push buttons at the top of the device.

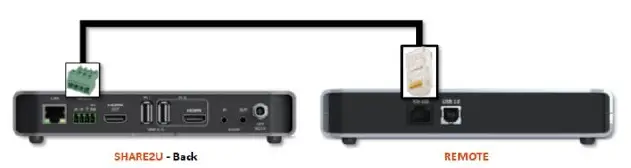

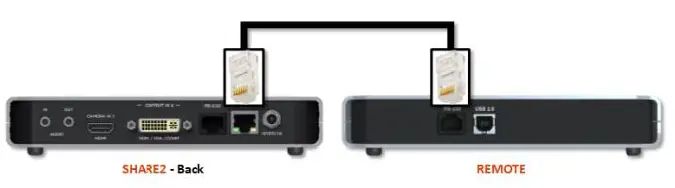

Connectivity
Do not plug the cable to the LAN connection of the SHARE2. Plug it to the RS232 port.
Do not plug a RJ45 cable between the INOGENI device and the REMOTE.

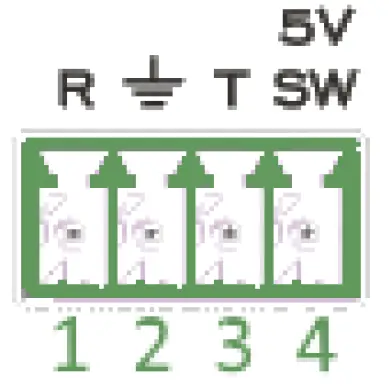

INOGENI device side
- Pin 1: Receive
- Pin 2: GND
- Pin 3: Transmit
- Pin 4: 5V supply

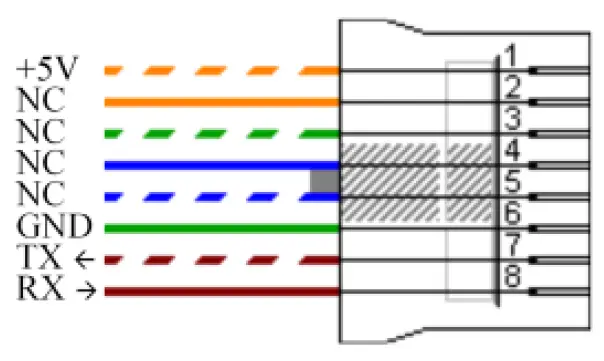

REMOTE side
Regarding +5V supply for REMOTE
Under SHARE2/SHARE2U and CAM100/300, make sure to put switch number 6 to ON position.
Technical support
If you need any support on how to operate this device, contact us at [email protected] for further assistance.
