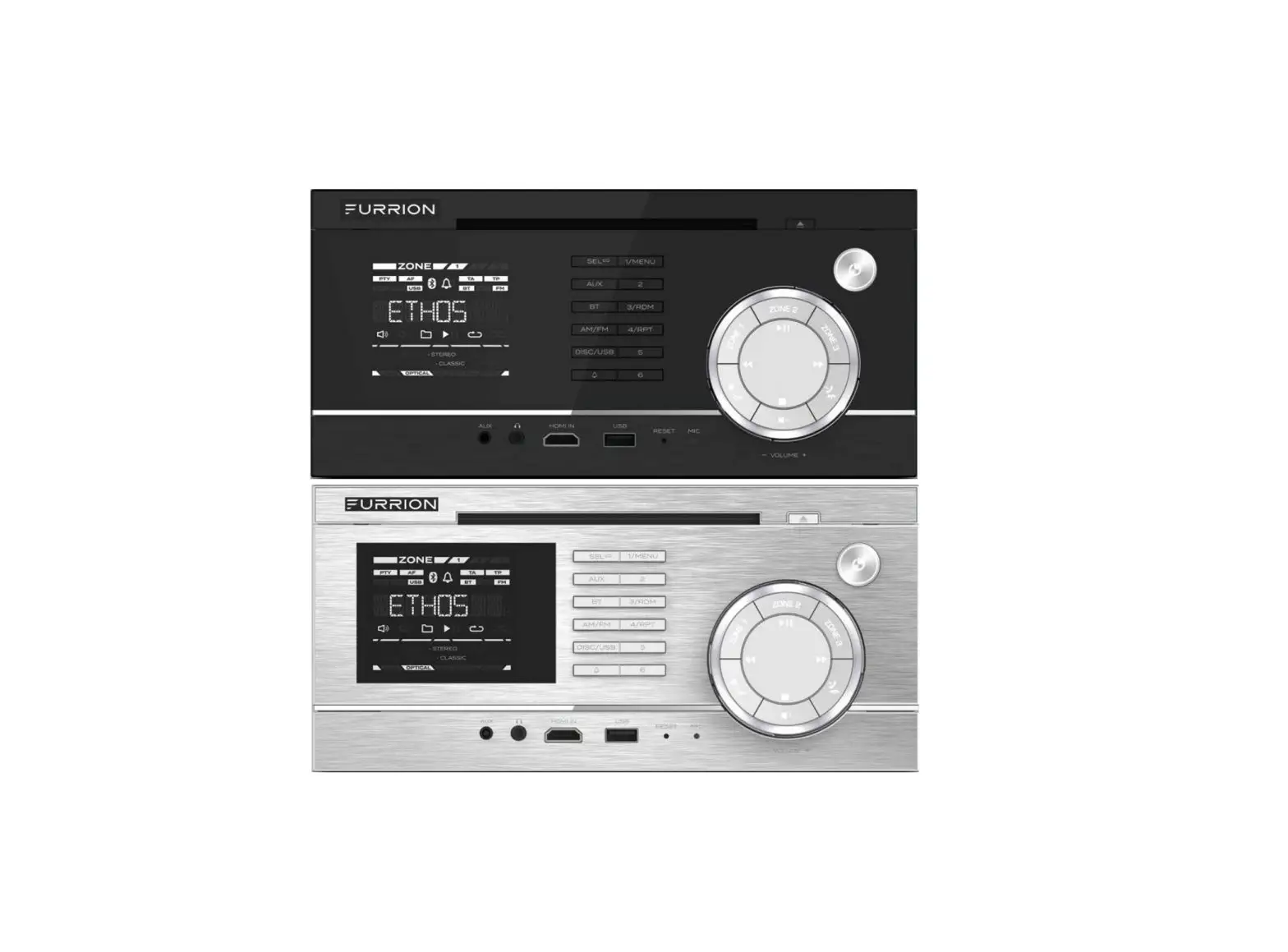

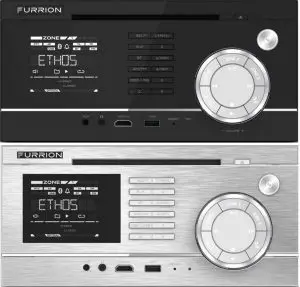

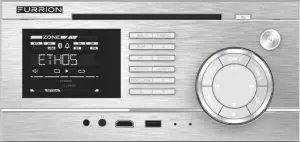

FURRION 3-Zone Entertainment System with DVD Specifications
Product
- DV120-BL
- DV1220-SS
Product Content
- CLIMATESMART™
- VIBRATIONSMART™
- CLIMATESMART™
- SIGNALSMART™
- APP CONTROL
- FRONT ACCESS HDMI
- AUXILIARY IN
- USB INTERFACE
- SUBWOOFER OUT
- 3-ZONE SPEAKER CONTROL
- AUDIO CONTROL WHEEL
- WORKS WITH UNIMOTE

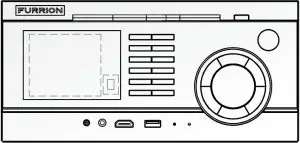

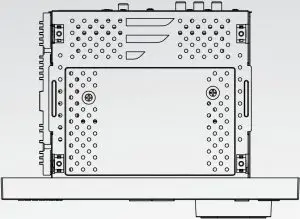

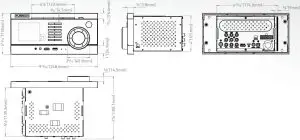

Dimensions
DV1220-SS
DV1220-BL
Specifications
| Din Type | 2-din |
| Front Panel Type | Fixed |
| Supported Disc Format | CD/DVD |
| Supported Media Format | MP3/WMA/MP4 |
| Tuner Type | AM & FM |
| Number of Preset Stations | 30 |
| RDS | √ |
| USB | √ |
| Card Reader | ● |
| Memory Card Support | ● |
| AUX-IN | √ |
| AUX-IN Video Support | ● |
| HDMI-IN | √ |
| Bluetooth | 4.0 |
| NFC | √ |
| GPS | ● |
| # of RCA (Audio LR) Inputs, Rear Panel | 2 |
| # of RCA (Audio LR) Outputs, Rear Panel | 1 |
| # of Video Inputs, Rear Panel | 1 |
| # of Video Outputs, Rear Panel | 1 |
| # of Subwoofer Outputs, Rear Panel | 1 |
| # of HDMI Outputs, Rear Panel | 1 |
| # of Optical Audio Inputs, Rear Panel | 1 |
| # of Coaxial Audio Inputs, Rear Panel | 1 |
| # of Camera Inputs, Rear Panel | ● |
| # of IR Control Jack | 1 |
| # of Zone Audio Outputs | 3 |
| Display Type | LCD |
| Display Color | Black Background with White Graphic |
| Max Power (Watts) | 4 x 45W + 2 x 35W |
| Power Connector Type | 16-pin |
| Key Illumination Color | White |
| Rotary Volume Control | √ |
| Accessories Included | Remote Control with Batteries, Harness, 3.5mm-to-RCA Cable, Manual, Warranty Card |
Packaging Information
| Packaging Type | Color Gift Box |
| Quantity Per Box (pcs) | 1 |
| Individual Packaging Dimensions(L x H x W) | 107⁄8” x 61⁄16” x 83⁄16” (276 x 153 x 209mm) |
| Individual Packaging Gross Weight (kg/lbs) | 5.5/12.1 |
| Individual Packaging Net Weight (kg/lbs) | 4.6/10.2 |
Master Carton
| Packaging Type | Master Carton Box |
| Quantity Per Box (pcs) | 4 |
| Master Carton Dimensions (L x H x W) | 171⁄8” x 1211⁄16” x 113⁄8” (434 x 322 x 288mm) |
| Master Carton Gross Weight (kg/lbs) | 22/48.5 |
| Master Carton Net Weight (kg/lbs | 18.5/40.8 |
* Note: “√”=Equipped “●” = Not available
