Morpilot Rechargeable Battery & Charger User Guide

USER GUIDE

User Guide
for Morpilot Rechargeable CR123A Battery/charger
Thank you for purchasing from Morpilot.
Feel free to contact us if you are unpleasant with our products, your satisfaction is our pursuit.
Why Morpilot
Professional service, high-quality products, and reasonable prices.

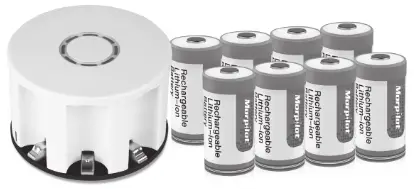

What’s in the box

• 8 pcs li-ion rechargeable RCR123A Battery
• 8 Slot Plastic Battery Case
• 8 Slot Fast Charger
• 1 pc Adapter
• 1 pc Micro USB to USB 2.0 Cable (charge only)
• 2 pcs Arlo skin

Warning
Read instructions before use. Failure to follow the instructions may violate the product warranty and cause danger.

RCR123A Li-ion rechargeable Battery

• 700mAh 3.7V rechargeable Li-ion battery.
• No heavy Hg/Cd/Pb metals included.
• The environment is friendly.
• Better Circle life, up to 500 rechargeable cycles.
• Safety Performance:
  Overcharge protection,
  Over-discharge protection,
  Over-current protection,
  Short circuit protection.

RCR123A Battery Case

• Store RCR123A batteries in a pieces plastic battery case.
• Durable & robust.

8 Slot Intelligent Charger

Features

• Charge 1-8pcs Morpilot RCR123A Li-ion rechargeable batteries.
• Build-in USB input DC.
• The LED displays the states of the charging status:
  No-load: Green
  Charging: Blue
  Fully charged: Green
• Intelligent charging with CCCV.
• Short-circuit and reversal polarity protection to ensure safety.
• Working environment: 0 ℃to 40 ℃, the battery may be warmer than room temperature during charging.
• Take about 3 hours to fully charged.

AC Adapter
Input: 100-240V~50/60Hz 0.35A MAX
Output: 5V—2.0A
Input: DC5V 2A
Output: DC4.2V 250mA×8
Attention
1. Connect battery polarities correctly, otherwise the charger would stop charging.
2. Connect the USB cable and charger correctly; Keep the LED light right side up.
3. LEDs turn “Blue” during the charging process, turns “green” once the batteries are removed or fully charged.
4. Remove batteries from charger once fully charged. 5. Do not put the charger in the wet environment; Do not disassemble the charger for safety concerns.
Compatibility
Only use Morpilot RCR123A Charger To charge the RCR123A 3.7V Li-ion rechargeable batteries.
Do not mix with any primary CR123A batteries or another brand RCR123A batteries. Otherwise, it could result in fire or explosion.
Warranty
30 days money back and 1-year quality guarantee.

http://www.morpilot.com/

www.morpilot.com

Designed in USA Assembled in China
