Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.
This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
Avoid spillage on the connector.
Never immerse the appliance or mains cable in water.
Never leave the appliance unattended while it is switched on!
Use only if power cord and appliance show no signs of damage.
Should a fault occur, pull the plug or disconnect from the mains immediately.

Risk of burns and fire!

A misuse of the appliance can potentially lead to injury. During operation of the appliance the temperature of exposed surfaces may become very high. During operation only grasp the parts of the appliance and the glass jug by the handles provided.
Do not place the appliance on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.
Never cover the parking zone for the jug. After the use the heating element surfaces and warming plate can be subjected to residual heat.

The appliance gets hot. Never operate the appliance in a cupboard.

Risk of suffocation!
Do not allow children to play with packaging material.
Caution! Cleaning surfaces which come into contact with foodstuffs!
Please note the special information on cleaning in the instructions.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

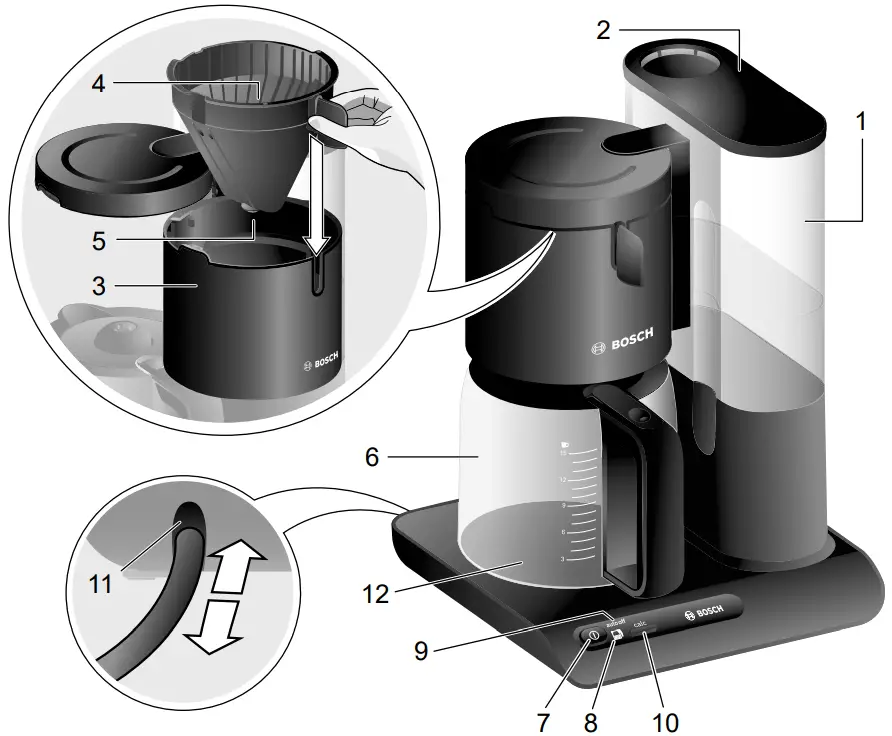

Parts and operating controls

Water tank with fill level indicator (removable)
Water tank cover (removable)
Filter housing (swivelling)
Filter holder (dishwasher-safe)
Drip stop
Glass carafe with lid (dishwasher-safe)
ON/OFF switch
K Low water indicator
Display (automatic switch-off) auto off
Descale button with indicator calc
Cable storage compartment
Hotplate

General information

Fill water tank with clean, cold water only. Never add milk or beverages such as tea or coffee since this will damage the appliance.
Never fill water tank above the marking “10 ”.
Use coffee with a medium grind (approx. 6 g per cup).
Do not brew less than the minimum amount of three cups since the coffee will not have the desired strength and temperature (1 cup = approx. 125 ml).
Never remove the carafe while the machine is brewing coffee since this may cause the filter holder to overflow.
Make sure that carafe’s lid is closed when you place the carafe on the coffee machine.
Do not use other carafes since the special drip protector will block the coffee from flowing into the receptacle.
Some water accumulation on the filter holder is normal; it does not indicate that the coffee machine is defective.

Before using for the first time

Remove any stickers or film.
Pull enough of the power cable out of the storage compartment and plug in.

To clean, fill water tank with 6 cups of water and replace it. Press the ON/OFF switch ; cleaning program starts.

Repeat the cleaning process.
Note: You may notice a “new machine” smell; this is normal. If this is the case, fill with a vinegar solution (1 cup of vinegar for 5 cups of water) and run the cleaning program. Next, rinse the machine twice with 6 cups of water.
Clean the carafe thoroughly.

Brewing coffee

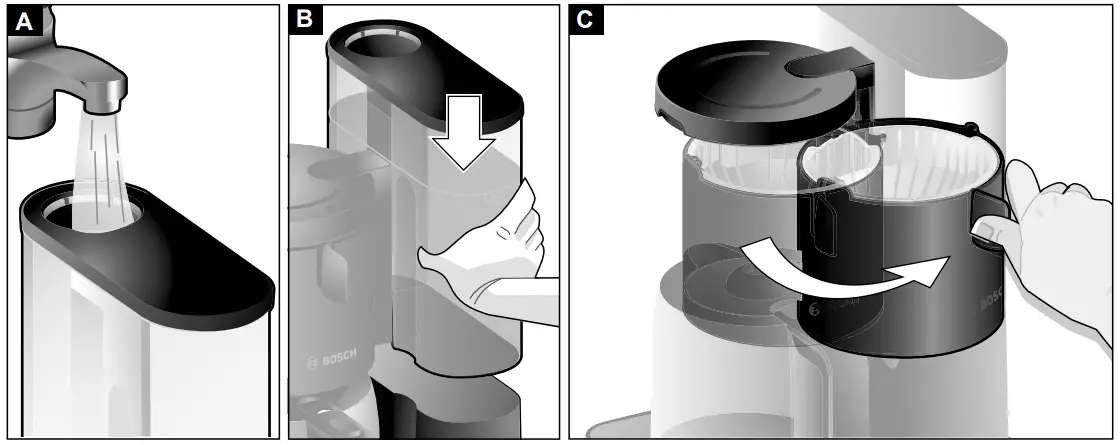

Remove the water tank, fill it with water and replace it.
Swivel out filter housing.

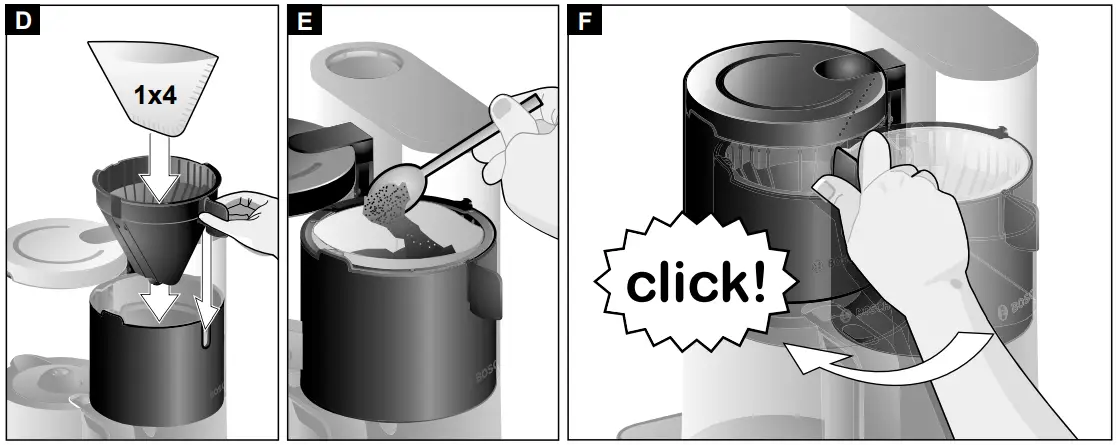

Insert a 1×4 paper filter in the filter holder and add the desired amount of coffee.
Flip back the filter housing until it engages.
Place the carafe with the lid closed under the filter housing.

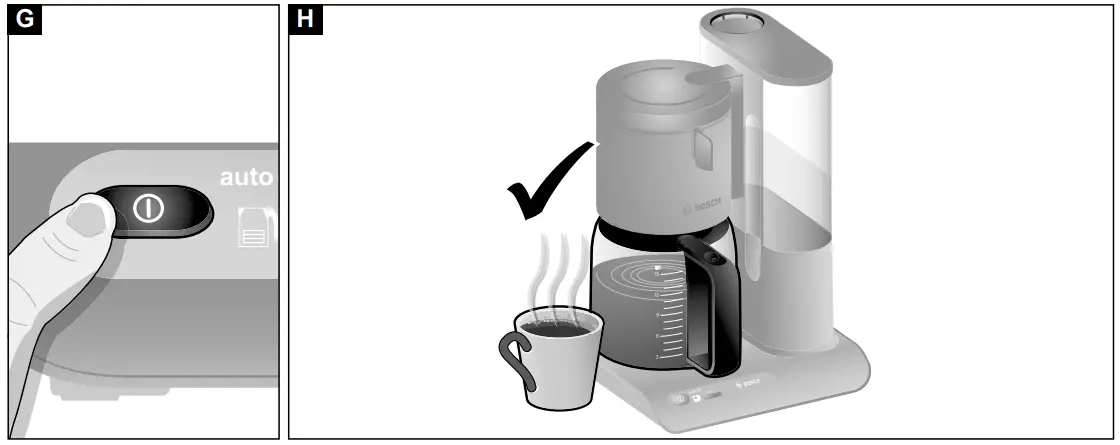

Press the ON/OFF switch O to start the brewing cycle. At the same time, the auto off function is activated; the display lights up.

Info: The appliance has an automatic auto off (power save) function, which switches off the appliance around 40 minutes after the brewing process is complete.
Important: When the brewing process is complete, wait a moment until all the coffee has run through the filter and into the carafe.

Let the machine cool down for five minutes before brewing a fresh pot.

Low water indicator

This coffee machine senses if the water volume in the water tank is low (less than approx. 4 cups). If the water level is low, lights up and the machine automatically increases the brewing time. This ensures that the coffee retains its ideal flavor.

Coffee-making tips

Store ground coffee in a cool place; you can also freeze it. Once a package of coffee has been opened, close it tightly to maintain its aroma.
How the coffee beans are roasted affects their taste and aroma.
Darker roast = more flavor
Lighter roast = more acidity

Cleaning

Never immerse the device in water or place it in the dishwasher!
Don’t steam-clean the appliance.
Unplug the appliance before cleaning it.

Clean all parts that came into contact with coffee after each use.
Clean the coffee machine’s exterior with a damp cloth; do not use strong or abrasive cleaning agents.
Clean the water tank under running water; don’t use a firm brush.
The glass carafe and its lid are dishwasher-safe.

Descaling

This appliance is equipped with an automatic descaling indicator. If calc indicator lights up, the machine needs to be descaled.

Regular descaling

makes your appliance last longer
ensures proper function
prevents excessive steam
speeds up the brewing process
saves energy

Descale the machine with a commercial descaling agent.

Switch off the machine and allow it to cool.
Make sure that carafe’s lid is closed when you place the carafe on the coffee machine.
Prepare the descaling solution according to the manufacturer’s instructions and pour it into the water tank.
Warning: Do not fill with more than 6 cups.
Switch the machine on using the ON/OFF switch O.
Press and hold down the button descale calc for at least 2 seconds. The descaling process starts.
The program interrupts the process several times for a few minutes in order to let the descaling agent penetrate the deposits. The entire descaling process takes about 30 minutes.
When the descaling process is complete, the display calc will no longer light up. Operate the machine twice using clean water, without coffee. Do not fill the tank with more than 6 cups of water.
Thoroughly rinse all removable parts and the carafe.

Troubleshooting

The machine takes noticeably longer or switches itself off before the brewing process is complete.

The machine needs descaling.
- Descale the machine as per the instructions. To start the descaling program, press and hold button calc for at least two seconds.
  Tip: If your water is very hard, descale the coffee machine more frequently than requested by the calc indicator.
  The drip stop leaks.
It needs to be cleaned.
- Clean drip stop (in filter holder) under running water while cleaning it several times with your finger.

Technical data

Electrical connection	220-240 V~ 50/60 Hz
Power	1160 W
Appliance height	355 mm
Appliance width	260 mm
Appliance depth	250 mm
Tank capacity	1.375 L

Disposal

Dispose of packaging in an environmentally friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).
The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
Changes reserved.
