User Manual

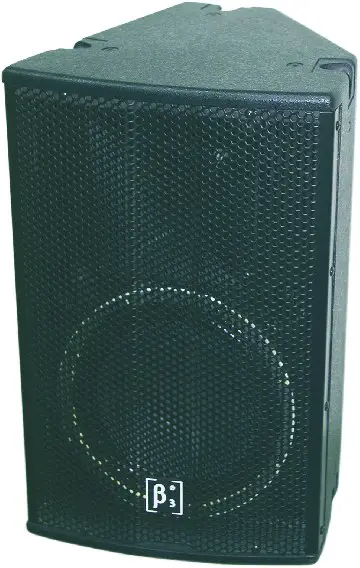

Features
- Two transducers two way phase-reversed full range professional speaker,professional and efficient transducers, computer simulating design.
- Two transducers two way full range
- High SPL and sensitivitity speaker
- One 10″ big power low frequency transducer
- One compression driver with 1.7″ titanium diaphragm
- Drived by one amplifier to get more widely enlarge capability
- 55º-100º×55º width direction to get more widely enlarge capability
- With computer optimize simulated design to get better frequency and phrase features
- Multiple flexible installation methods
- Suitable for full sound field enlarge, club and dancery etc publics using
- Suitable for any big sound engineering project or enlarge, returning listen, repair listen of fluxion performance system
- Used for high quality output replaying music,
Specifications
| Frequency Response(-3dB): | 50Hz-20kHz |
| Sensitivity(1W/1m): | 93dB |
| Crossover Frequency: | 1.5kHz |
| Dispersion(H×V): | (55º -100º )×50º |
| Power Rating: | 300W |
| Rated Impedance: | 8 Ohm |
| DC Impedance: | 7.2 Ohm |
| THD: | <3％ |
| Input Connectors: | NL4×2,1+ 1- |
| Net Weight(1Pcs): | 13.2kg |
| Gross Weight: | 16.0kg |
| Dimensions (W×D×H): | 330×308×502mm |
| Packaging Dimensions 1pcs/pack(W×D×H): | 430×408×622mm |

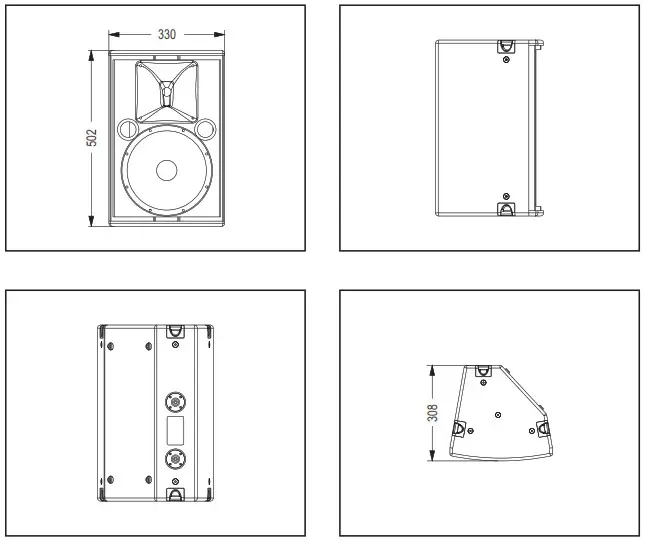

Cabinet Dimension:

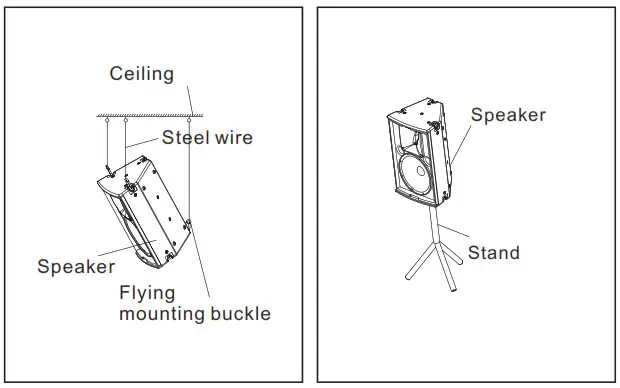

Installation drawing

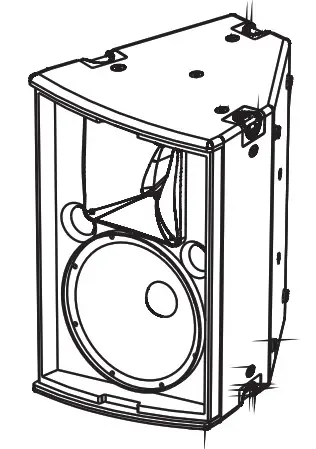

FULL RANGE PROFESSIONAL SPEAKER
CS250
