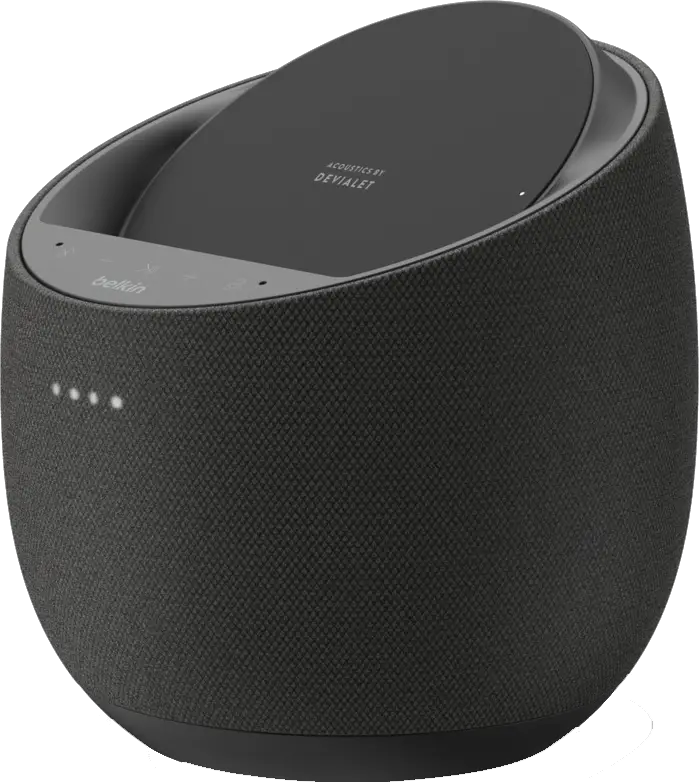

belkin AUF001V2 Soundform Charge Bluetooth Speaker + Wireless Charger
| BOM AUF001 | P# |
| Outer box | Refer Artwork |

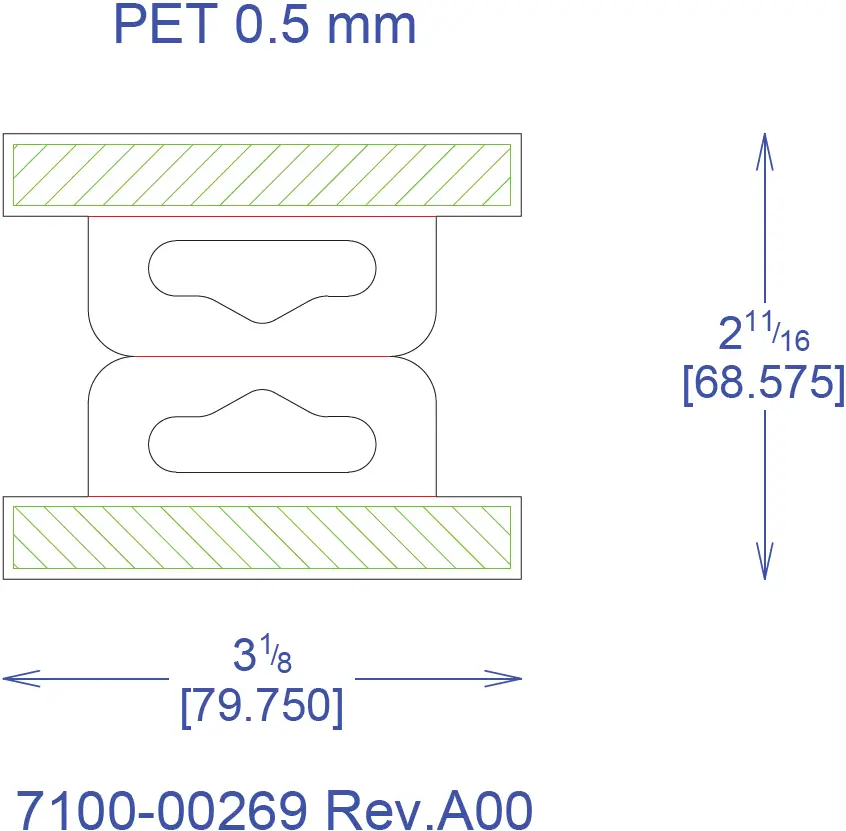

| PET Hanger | 7100-00269 Rev.A00 |
| Corrugated Box | Refer Artwork |
| EVA – 3pcs | Refer Artwork |
| QIG/FCC Statement Card | Refer Artwork |
| Wafer seal (2pcs) | 25 mm |
| Hanger folded in the case pack | |
PET 0.5 mm

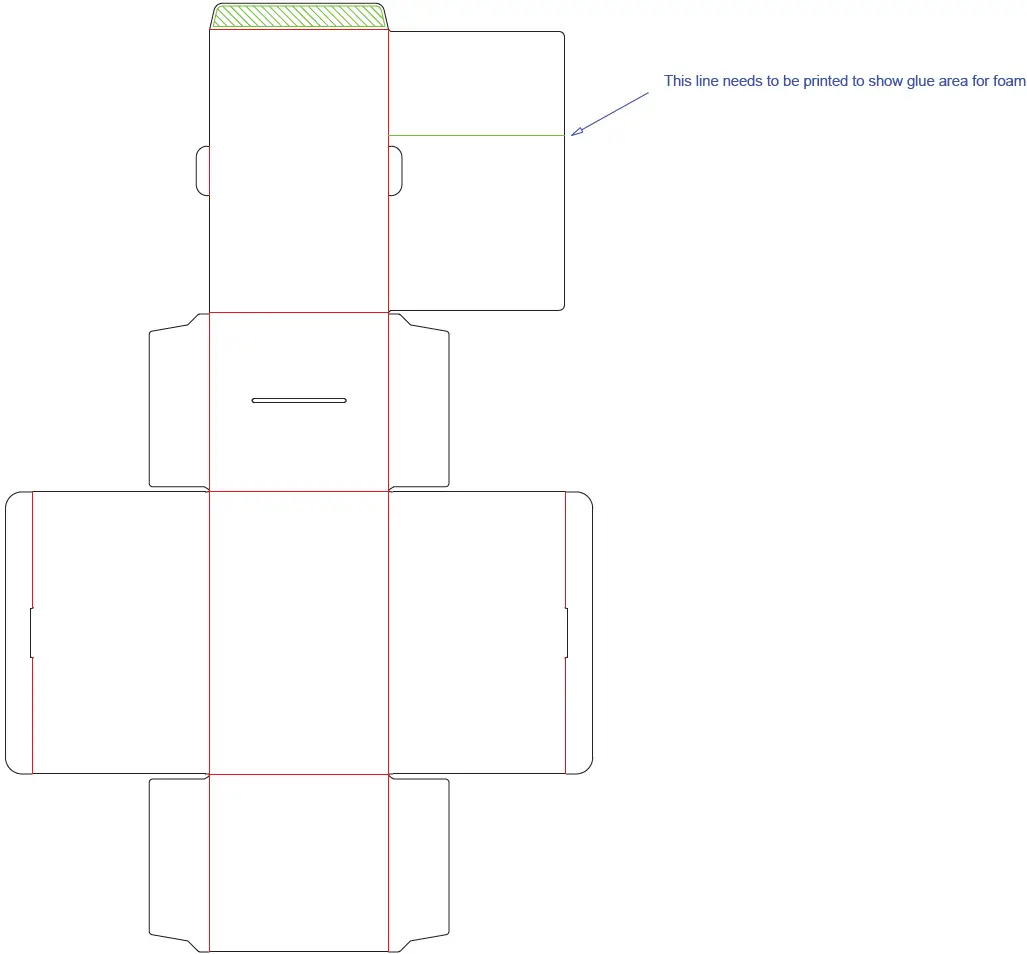

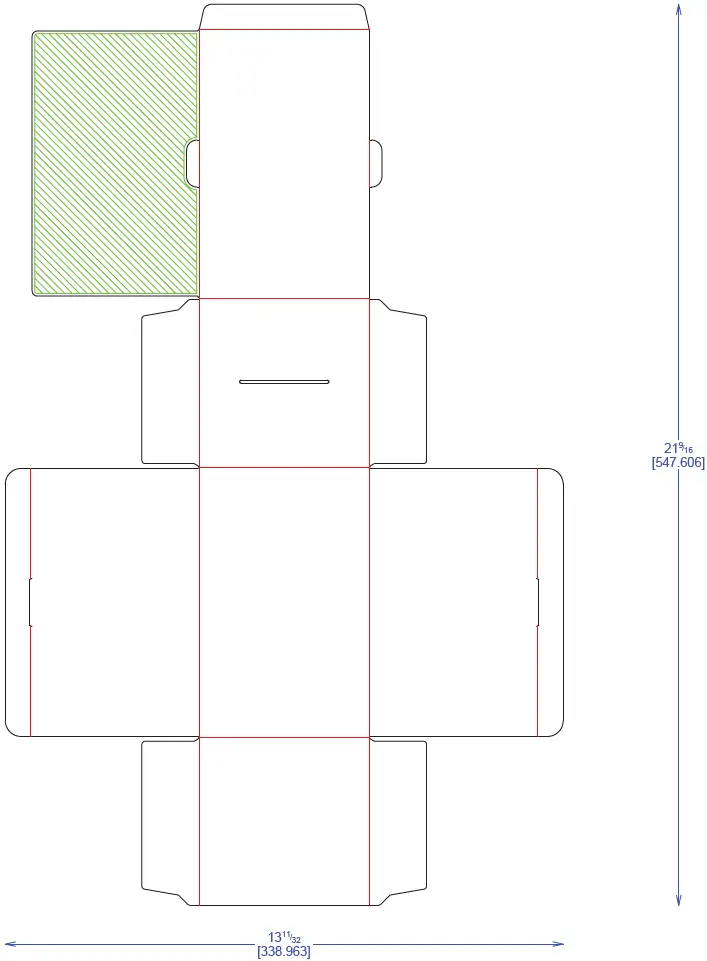

350 GSM C1S

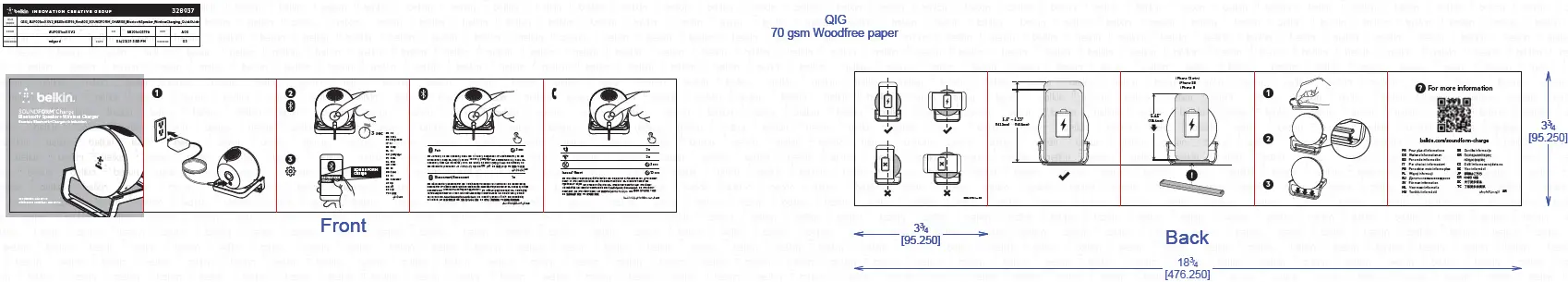

QIG 70 GSM Woodfree Paper

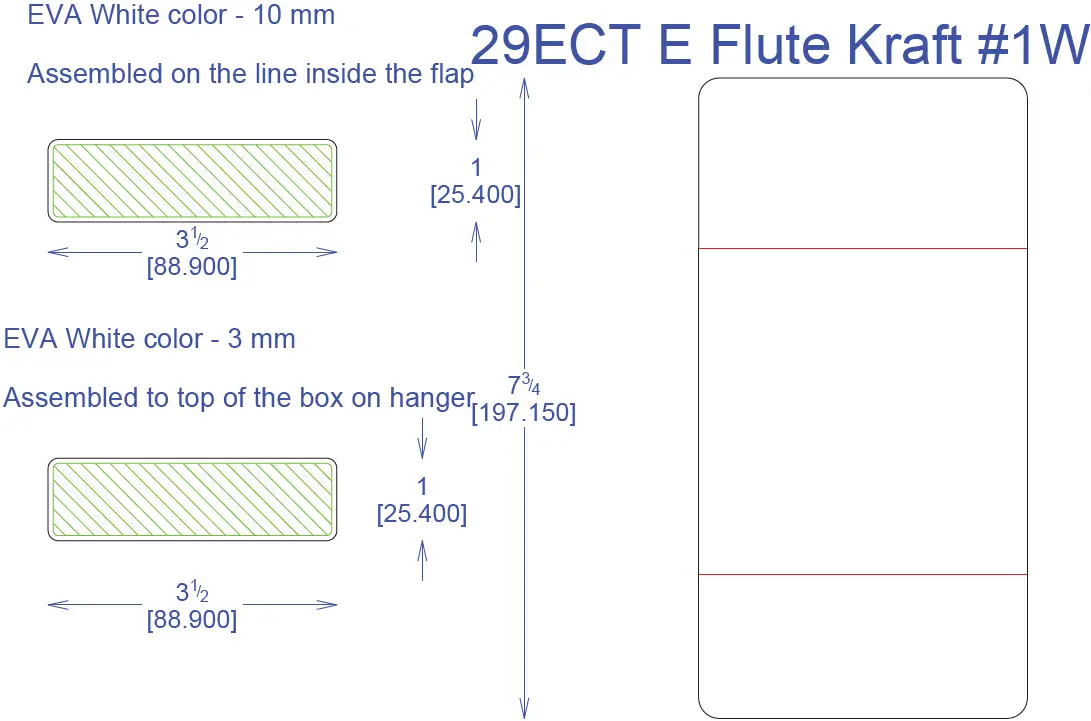

29ECT E Flute Kraft #1W
- Business Unit: Core
- Program Manager: Andrew Camba
- Packaging Engineer: Matthew Duffy
- Retail Outside Dimension (Including Hang Tab)
- L x W x D (in): 3+29/32 x 2+3/8 x 3+3/8
- L x W x D (mm):99.22 x 60.33 x 85.72
DIE/MATERIAL SPECS
- Material: Please refer to drawing
- Blank Size (in): 45.291 x 40.337
- Blank Size (mm): 1150.399 x 1024.566
This dieline works for following skus (if any):
- Unit: IN/MM
- Side Shown: PRINT SIDE
- Flute/Grain: vertical
Tolerance:+/- 1/32″ – 0.8mm
Drawing Scale 1:1 - DIELINE: Intermediate
