Liko Sabina SeatStrap Highly Versatile Sabina II Instructions

Product Description

The Seat Strap is an accessory which is placed under the patient’s bottom to help during the first part of the raising. It suits patients who need help to get their bottom up during raising. This prevents the support vest from sliding up, which could cause undesirable pressure under the arms.

Sabina Seat Strap is designed for use with Liko Sabina™ sit-to-stand lifts only. The Seat Strap is always used together with one of Liko’s support vests. Furthermore, the lift must be completed with the Sabina Seat Strap Sling Bar.
The accompanying plastic reinforcement facilitates the application of the Seat Strap. The plastic reinforcement is inserted into the fabric pocket on the bottom of the Seat Strap and makes it easier to apply the Seat Strap under the patient’s bottom.

In this document, the person being lifted is referred to as the patient and the person helping is referred to as the caregiver.

IMPORTANT!

Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient lift and lifting accessories before use. It is important to completely understand the contents of the instructions for use.
The equipment should only be used by trained personnel. Ensure that the lifting accessories are suitable for the lift used.
Exercise care and caution during use. As a caregiver, you are always responsible for the patient’s safety. You must be aware of the patient’s ability to make it through the lifting situation. If something is unclear, contact the manufacturer or supplier.

Symbol Description

These symbols can be found in this document and/or on the product.

Symbol	Description
	Warning; this situation requires extra care and attention.
	Read instructions for use before use
	CE mark
	Legal manufacturer
	Date of manufacturing
	Product Identifier
	Serial Number
	Medical device
	Do not dry clean
	Do not iron
	Tumble drying
	Do not tumble dry
	Washing: Symbol is always in combination with recommended temperature in °C and °F.
	Latex Free
	Periodic inspection
	Do not bleach
	Line drying in shade
	Direction upwards and symbol on outside of product.
	Symbol on outside of product.
(01) 0100887761997127 (11) YYMMDD (21) 012345678910	GS1 Data Matrix Barcode that may contain following information. (01) Global Trade Item Number (11) Production Date (21) Serial Number

Safety Instructions

Before lifting, keep the following points in mind:

• A responsible person within your organization should decide on a case-by-case basis whether one or more caregivers are needed.
• Plan the lifting operation so that it can be done as safely and smoothly as possible.
• Although Like’s sling bars are equipped with latches, special caution must be exercised. Before the patient is lifted from the underlying surface, but after the straps have been fully extended, make sure the straps are correctly connected to the sling bar hooks.
• Never leave a patient unattended during a lifting situation.
• Make sure that the wheels on the wheelchair, bed, gurney, etc., are locked during the lifting/transfer operation.
• Always work ergonomically. Use the patient’s ability to actively participate in the operations.

 Medical Device Class I Product

Product Changes
Liko’s products undergo continuous development, which is why we reserve the right to make product changes without prior notice. Contact your Hill-Rom representative for advice and information about product upgrades.

Design and Quality by Liko in Sweden
Liko is quality certified according to ISO 9001 and its equivalence for the medical device industry, ISO 13485.
Liko is also certified according to environmental standard ISO 14001.

Notice to Users and/or Patients in EU
Any serious incident that has occurred in relation to the device, should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.

Care and Maintenance

Check the sling before each use. Check the following points with regard to wear and damage:

• Fabric
• Straps
• Seams
• Loops

Do not use damaged lifting accessories.
If anything is unclear, please contact the manufacturer or supplier.

Washing instructions: Please see the Seat Strap’s product label and the attached appendix ”Care and Maintenance of Liko Slings” Remove plastic reinforcement before washing (see page 4). The plastic reinforcement should be cleaned with disinfectants.

Periodic Inspection
The product must be inspected at least once every 6 months. More frequent inspections might be required if the products are used or washed more often than normal. For protocols please contact your Hill-Rom representative.

Expected Life Time
The product has an expected life time of 1-5 years. The expected life time is based on 10 uses per day and washing once per week, according to washing instructions. Hill-Rom recommends the product be used only during its expected life time.

Recycling Instructions
The Seat Strap should be sorted as Combustible waste.
Hill-Rom evaluates and provides guidance to its users on the safe handling and disposal of its devices to aid in the prevention of injury, including, but not limited to: cuts, punctures of the skin, abrasions, and any required cleaning and disinfection of the medical device after use and prior to its disposal. Customers should adhere to all federal, state, regional, and/or local laws and regulations as it pertains to the safe disposal of medical devices and accessories.
If in doubt, the user of the device shall first contact Hill-Rom Technical Support for guidance on safe disposal protocols.

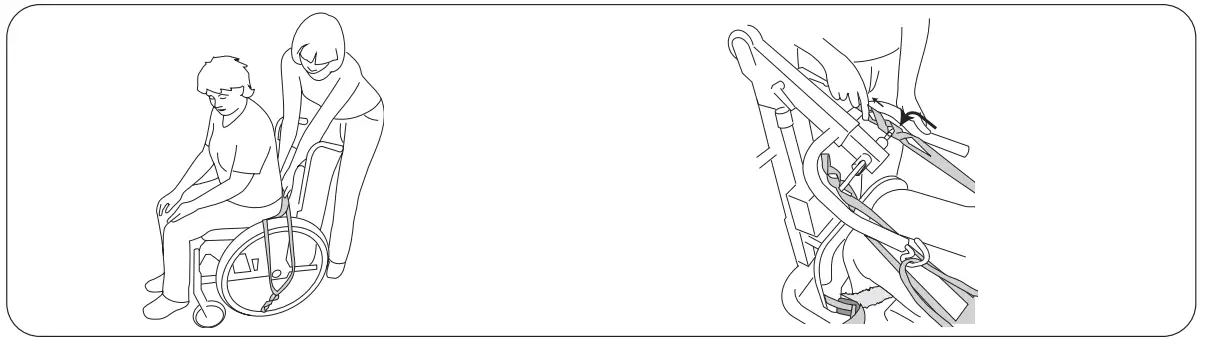

Application

Lower the Seat Strap as far down under the bottom as possible. Tip: The plastic reinforcement facilitates the application.

Apply the support vest. Approach the Sabina sit-to-stand lift. Connect the strap loops of the vest to the sling bar. For further instructions, refer to the instruction for use for the vest and lift used.

Stretch the straps on the Seat Strap and connect suitable strap loops to the Seat Strap Sling Bar.

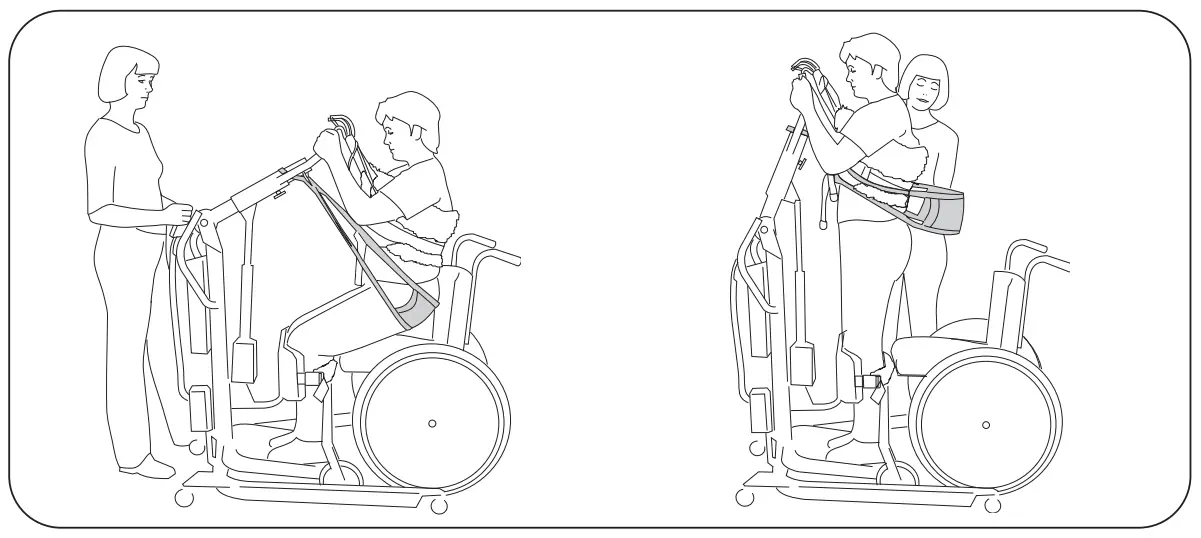

Raising

Start the raising. The Seat Strap helps during the first part of the raising.

In raised position the Seat Strap loses its load and can easily be pushed to the side to facilitate toilet visits, for instance.

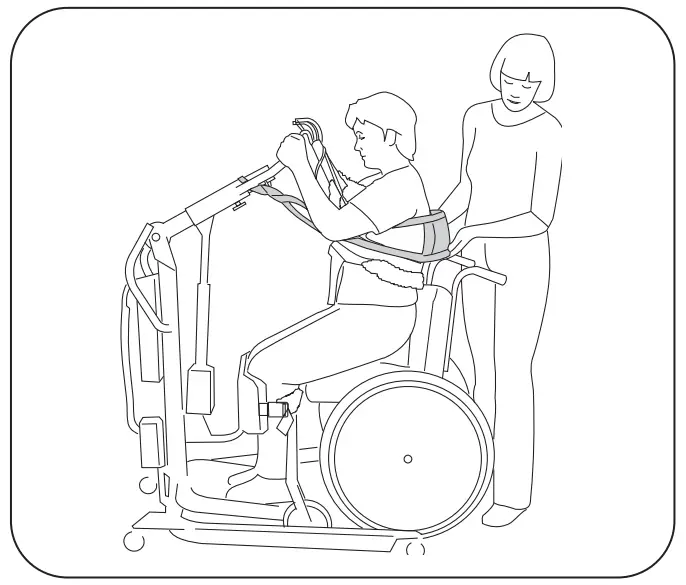

Back to a Sitting Position

During lowering, the patient is more easily placed into the right position in the wheelchair if the Seat Strap is not used.

Overview Liko™ Sabina™ Seat Strap

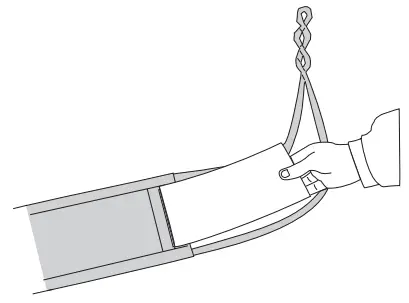

Plastic Reinforcement
A plastic reinforcement (polyethylene) is provided with the Seat Strap and is intended to facilitate the application.

Combinations
The Sabina Seat Strap is intended for use only with Liko Sabina™ sit-to-stand lifts and Sabina Seat Strap Sling Bar.

Combinations of accessories/products other than those recommended by Liko can result in risks for the safety of the patient.

Liko AB
Nedre vägen 100
975 92 Luleå, Sweden
+46 (0)920 474700
iko AB is a subsidiary of Hill-Rom Holdings Inc
www.hillrom.com
