Bh Bikes Atomx Lynx 2022 E-mountain Bike User Guide

Bikes ATOMX Lynx 2022 E-Mountain Bike
User Guide

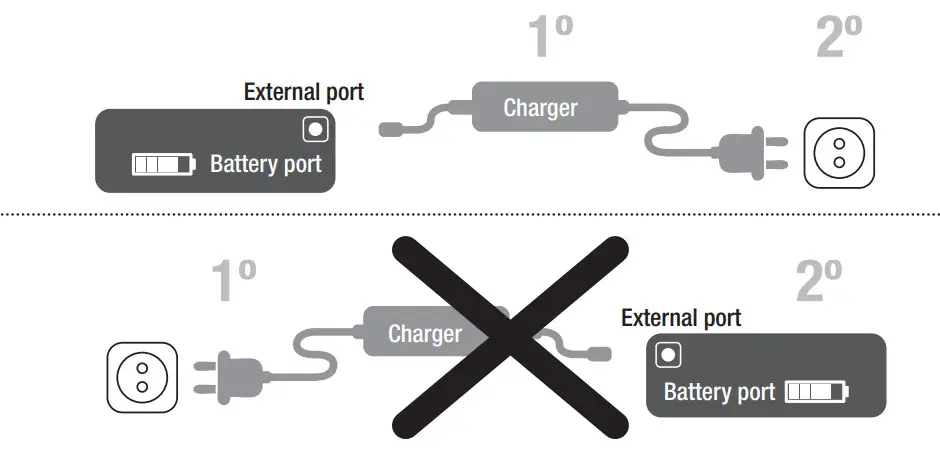

Only use the charger provided with the battery. Do not place any object on the charger.
Charging the BH battery at 70-80% is mandatory if not used or stored for a long time period.
Additionally, control the level of the battery charger every 3 months and keep it always above 20% charge.
If the battery is in deep sleep mode and in order to wake it up, please charge the battery to 100% capacity.

DOWNLOAD COMPLETE MANUAL

www.bhbikes.com/manuals

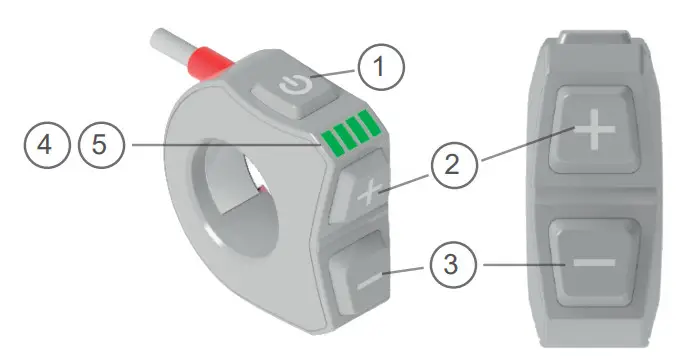

iREMOTE INFO

1. Buton POWER.
   2. Buton (+).
   3. Buton (-).
   4. Indicator

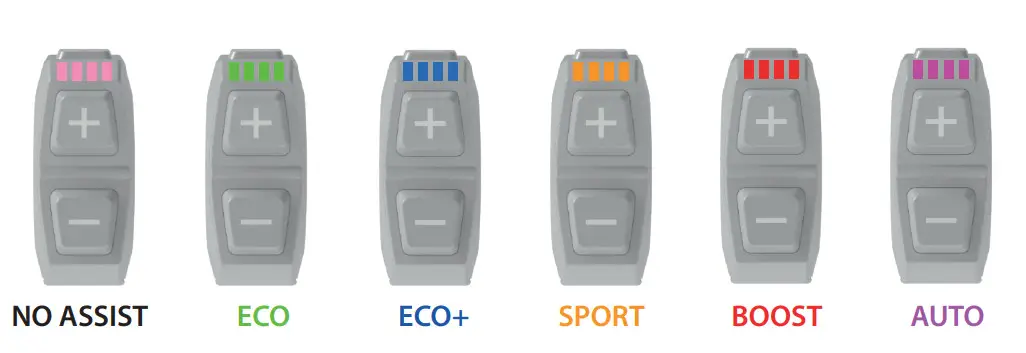

   5. Color indicator

LEVEL

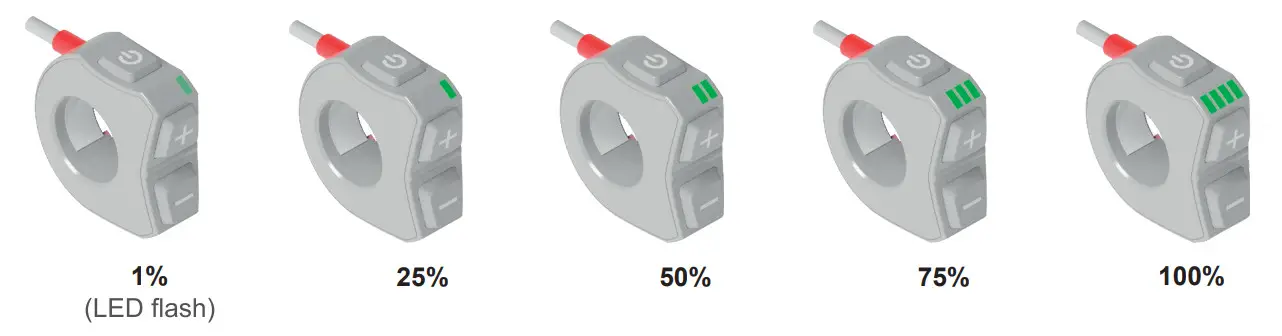

BATTERY STATE OF CHARGE

LIGHTS

THROTTLE

SETTINGS: GARMIN – Connected

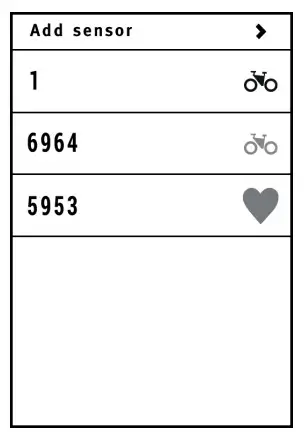

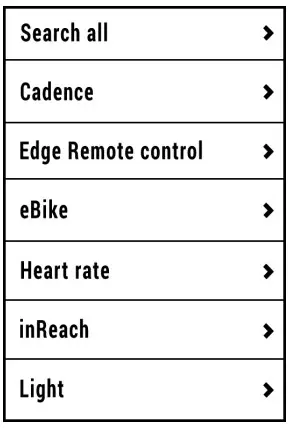

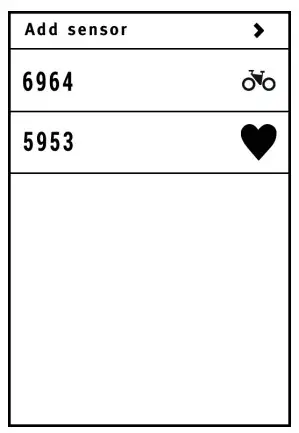

Add sensor Create sensor connection

Select e-bike: Create sensor connection

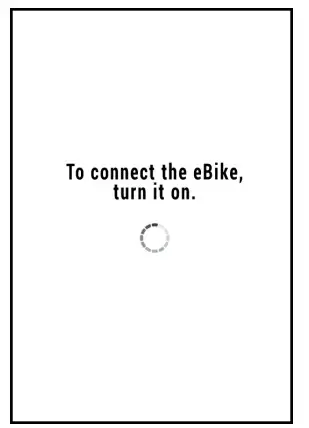

Pair e-bike display with Garmin

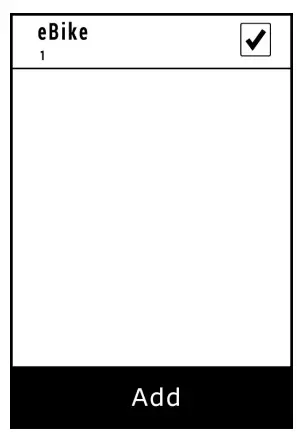

Select/add e-bike

Select created sensor

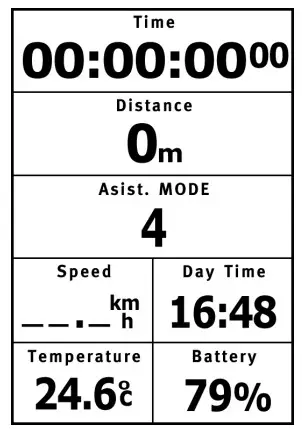

Garmin connected

Garmin connected

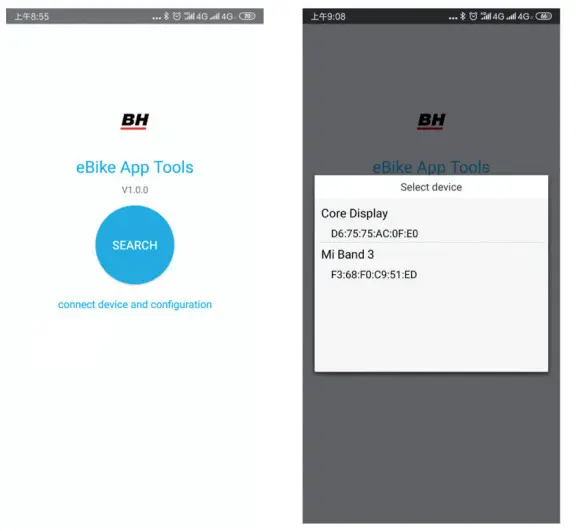

Connection

Loading configuration

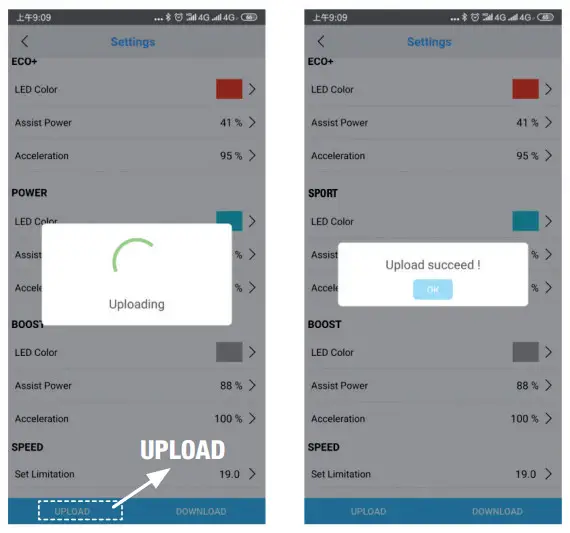

Changing configuration
Color

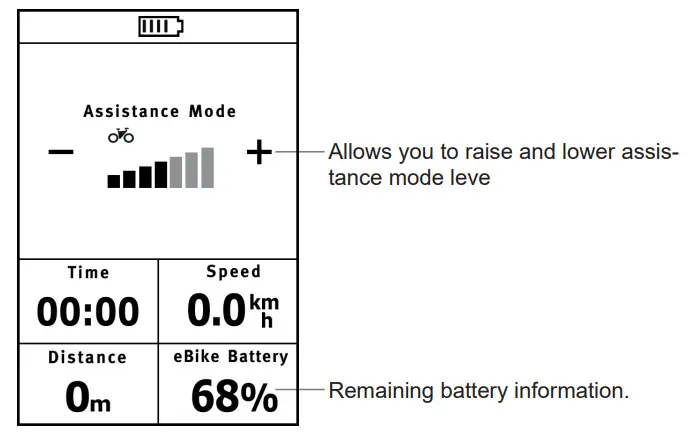

Assistance level
Acceleration level
Downloading to bike

BATTERY
