Colourtree Custom Made-to-order Waterproof Shade Sail Installation Guide

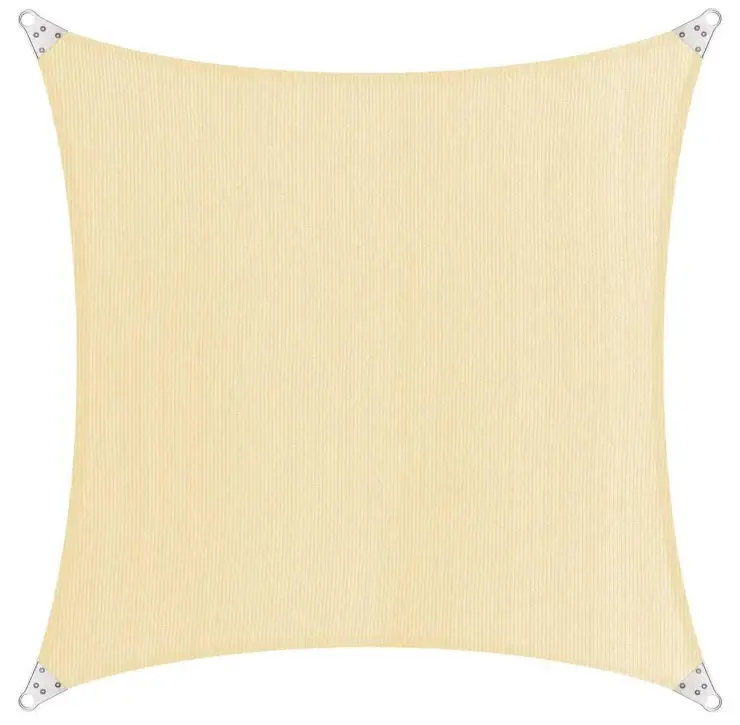

ColourTree Custom Made-to-Order Waterproof Shade Sail Installation Guide

ASSESSORIES

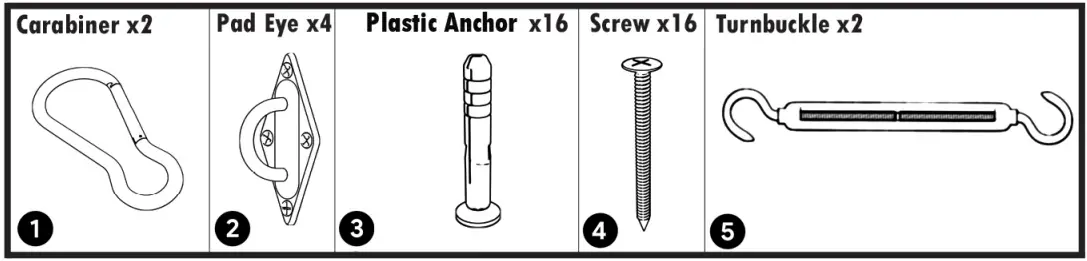

1. Included Content fit on Rectangle & Square Shade Sail

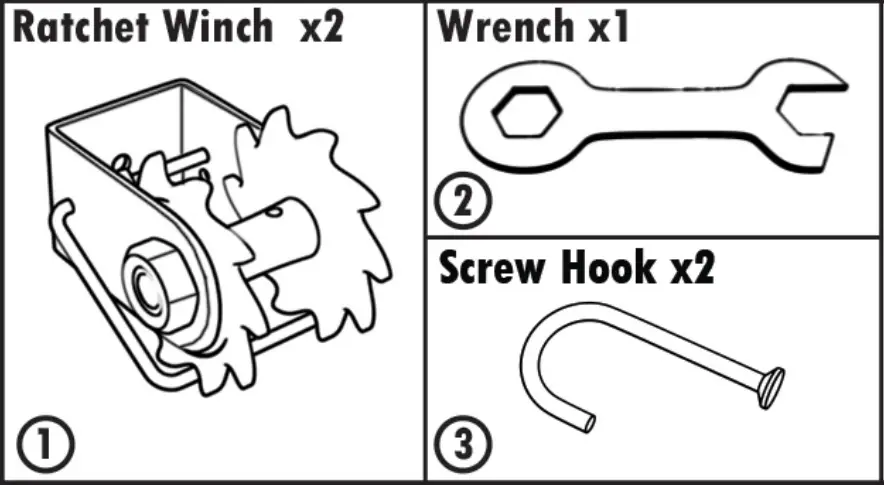

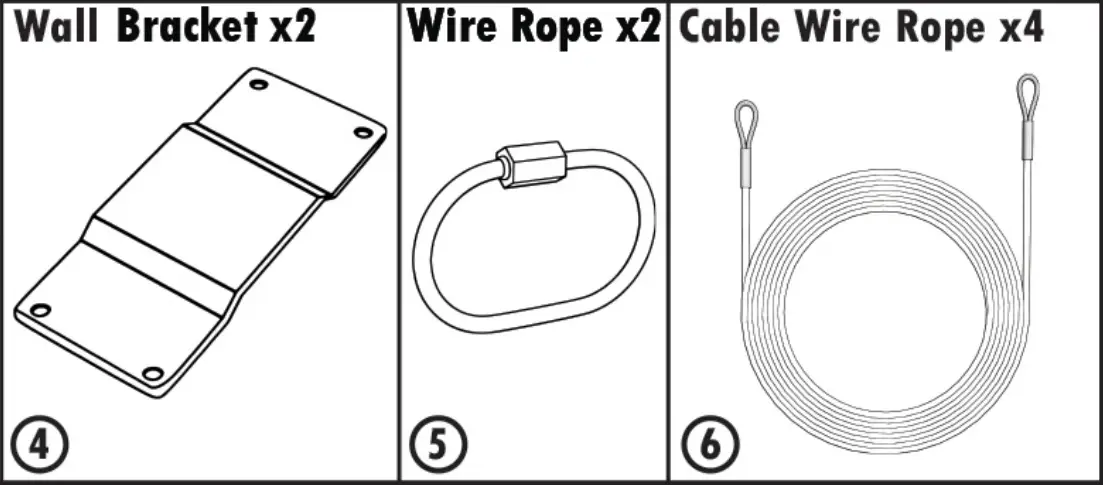

2. Optional Accessories


3. Feature:
   Easy Installation

   Economical

   Heavy Duty

   Stainless Steel

   Specify Warranty

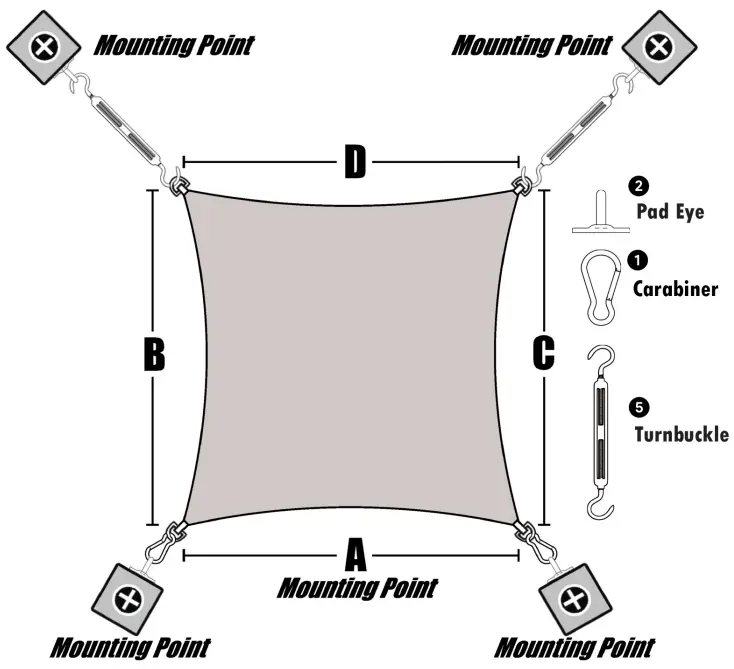

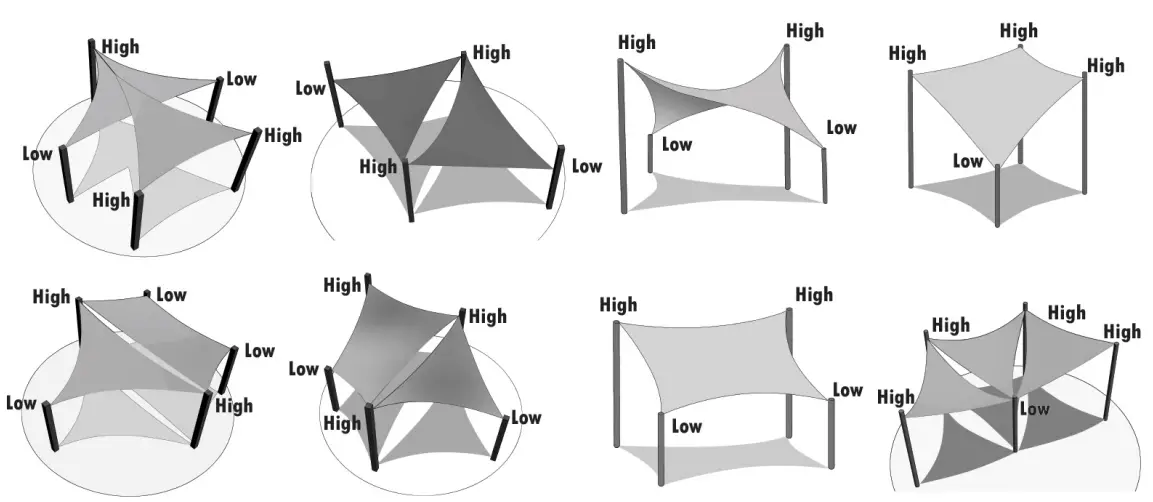

LAYOUT GUIDE

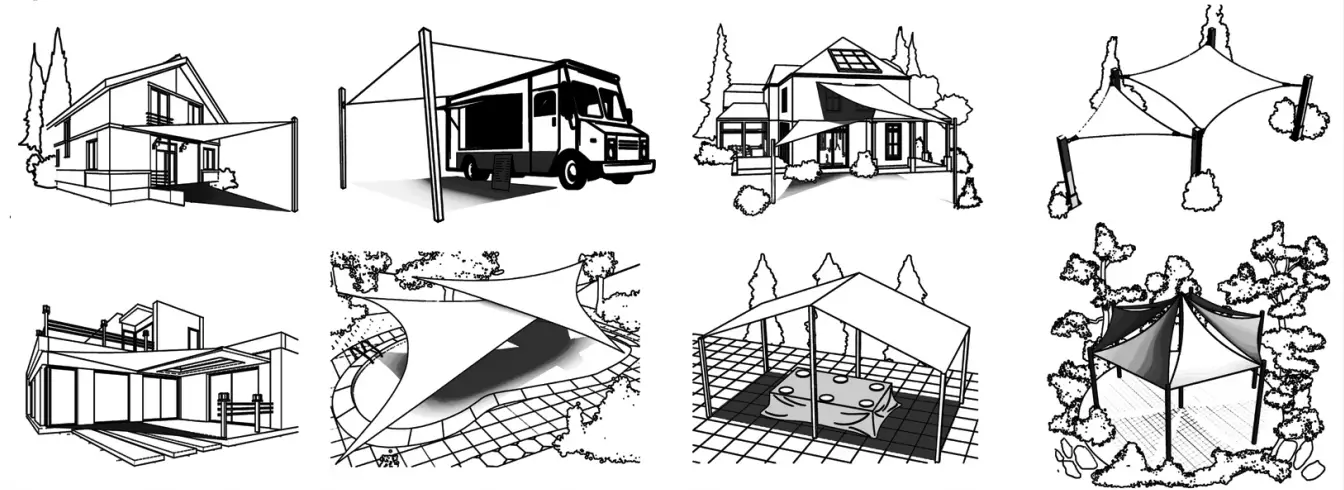

INSTALLATION SCENERY

ACCESSORIES INSTALLATION

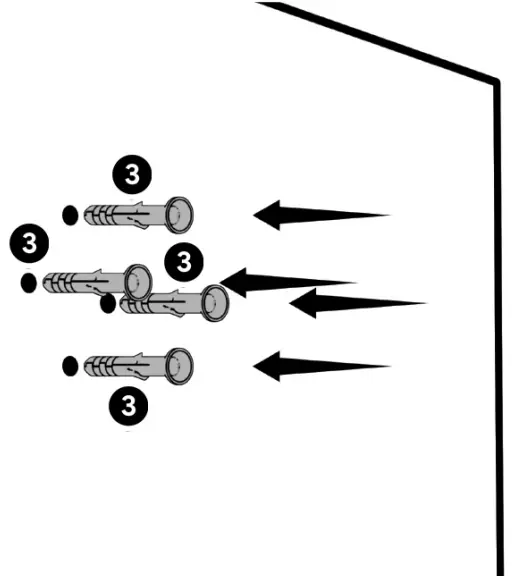

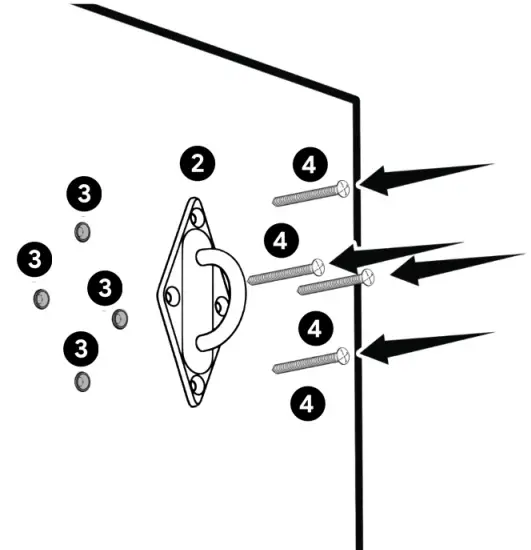

Padeye Installation

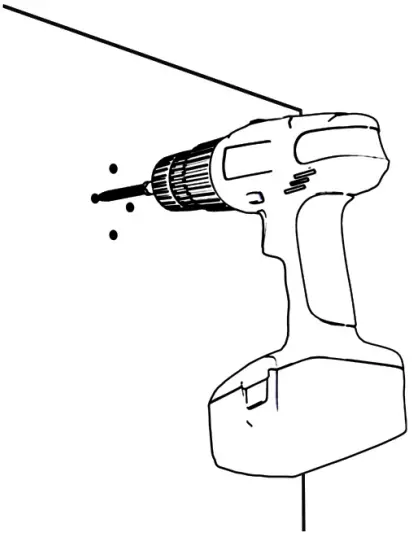

1. Drill holes in the surface to the diameter of the plastic Anchor

2. Inlay the plastic anchor to the hole

3.

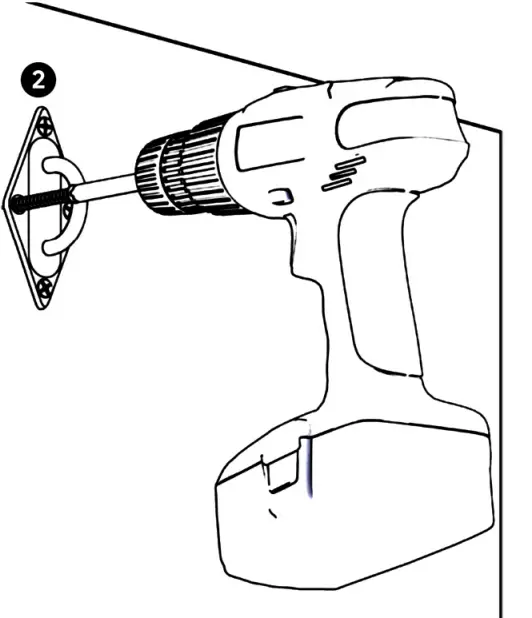

4. Insert the screw into the plastic anchor to fix the padeye


Tighter for Better Fit & Proper Install

Turnbuckle Can Be Extented 7″ to 9.5″

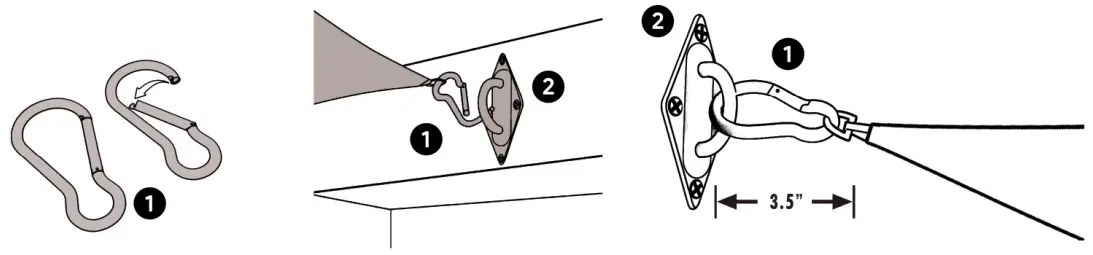

Carabiner Placement

ADDITIONAL WAYS TO INSTALL

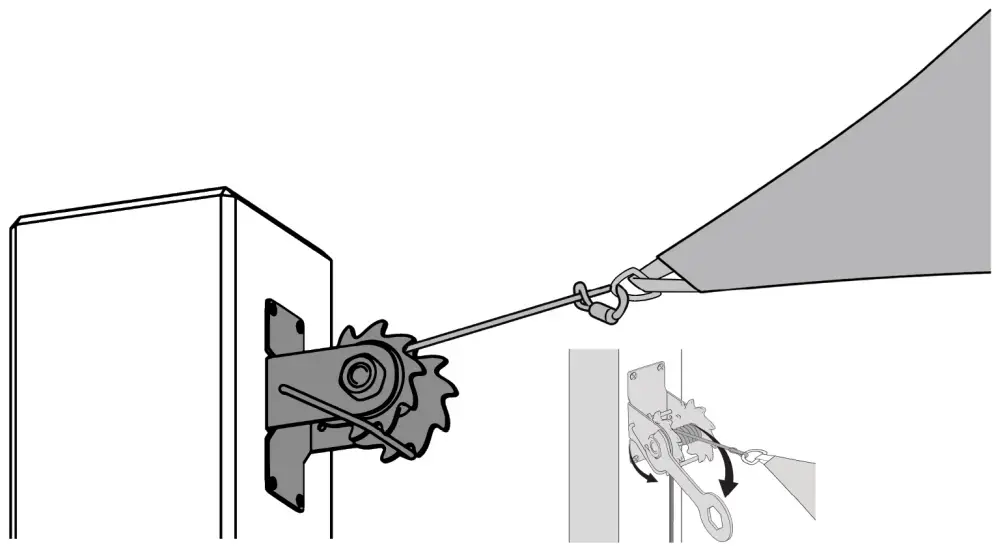

1. Winch Provides Easy Way To Connect & Taut

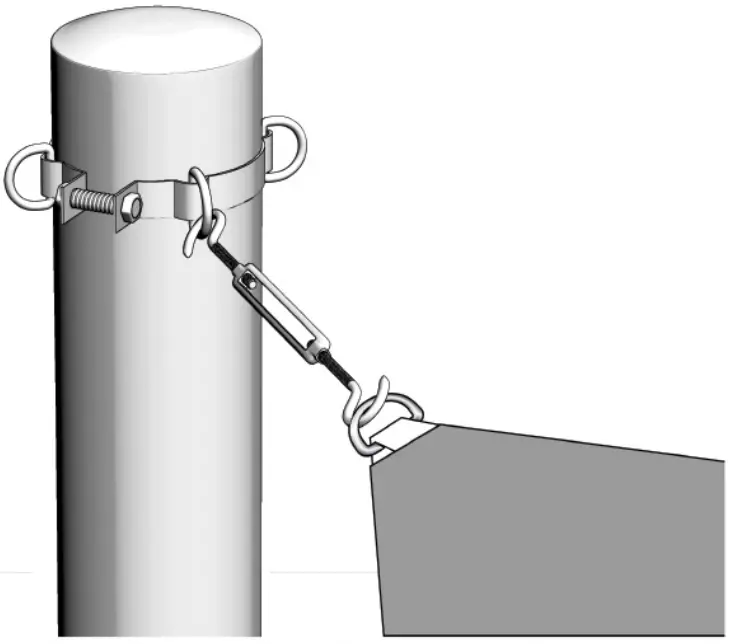

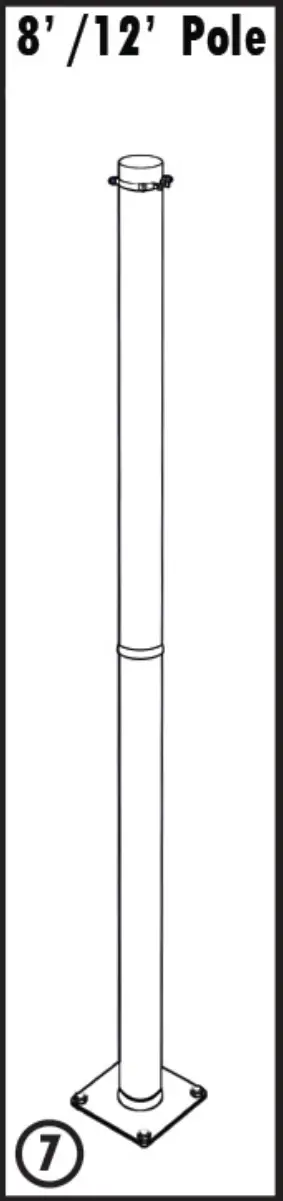

2. Pole Gives You Ability To Create Mounting Points

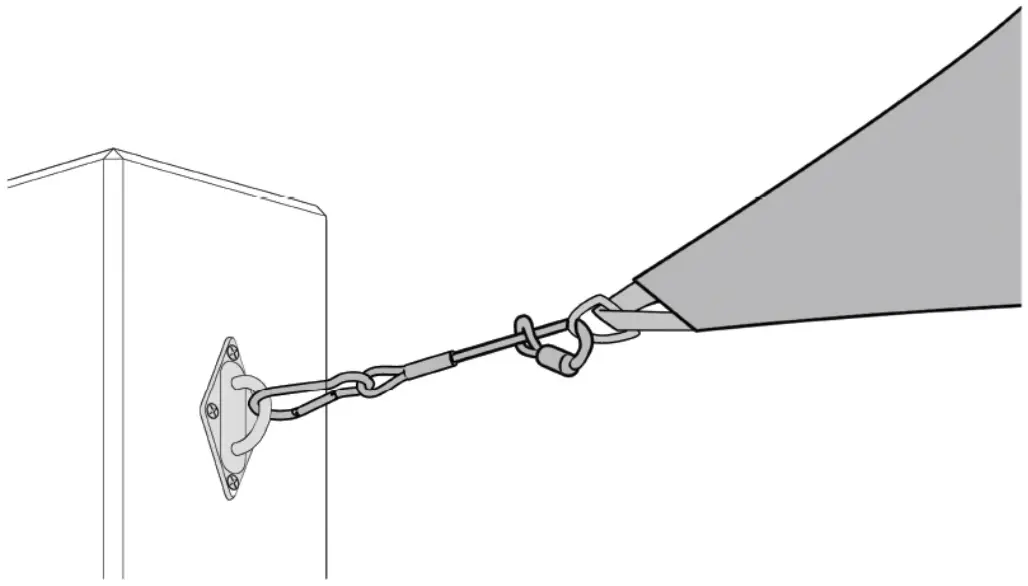

3. The Wire Rope Is Pulled Taut and Secured


DISCLAIMER

End-User License Agreement (“Agreement”)

Please read all instructions before beginning installation. These guidelines are provided in good faith to help prevent any problems caused by errors in installation. The manufacturer of this product shall not be held responsible for installation ac-tions taken or not taken. There are many details of installation that are assumed to be general construction knowledge to ex-perienced installers; which are not included in these instructions. These installation guidelines are intended to be strictly recommendations and are not to serve as a step-by-step, fail safe installation checklist. Selection of an experienced installer is the sole responsibility of the project owner and architect.

We DO NOT accept any responsibility for job failure resulting from or associated with improper site environmental conditions and installation failure due to expansion contraction issues.
