QUICK REFERENCE GUIDE > CDV3-365H-L
Gas Cooktop, 36″, LPG
Series 9 | Professional
Stainless Steel | LPG
User Guide

Contents hide

1 CDV3-365H-L LPG 36 Inch Gas Cooktop

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

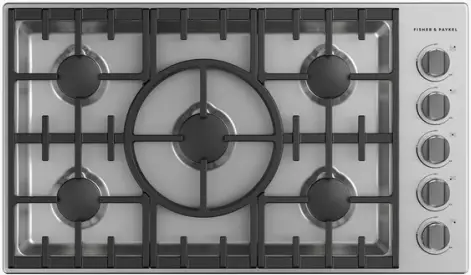

CDV3-365H-L LPG 36 Inch Gas Cooktop

A powerful high-heat five burner with precision control and performance. Pair with any other appliance in our Professional range.

Your burners can deliver anything from a high 20,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
Continuous surface grates designed for pots and pans to move safely across the cooktop
Designed to match Professional style appliances
Made from quality materials and real stainless steel

DIMENSIONS

Height	5 1/2″
Width	36″
Depth	21″

FEATURES & BENEFITS

COOKTOP POWER
Sealed Dual Flow Burners™ deliver cooktop power up to 20,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
PRECISE CONTROL
From the highest to the lowest temperatures you get total control with halo-illuminated cooktop dials. A precise full surface simmer is delivered across all burners.
COOKING FLEXIBILITY
The self-locating grates focus the flame on the base of each pan, where it is most required. They are designed for easy and safe sliding of pans across the cooktop surface. For cooking variety, a wok ring accessory is also available.
EASY TO CLEAN
These cooktops are easy to clean with a commercial-style stainless steel finish, sealed burners and a single sheet cooking surface.
INFORMATION AT A GLANCE
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
COMPLEMENTARY DESIGN
Built to last with distinctive, bold styling, this cooktop is designed to match the Fisher & Paykel Professional style family of appliances.

SPECIFICATIONS

Burner ratings
Max burner power	20,000 BTU
Power back left	12,000 BTU
Power back right	12,000 BTU
Power front centre	20,000 BTU
Power front left	12,000 BTU
Power front right	12,000 BTU
Total cooktop power	68,000 BTU
Controls
Metal illuminated dials	•
Titanium coated, illuminated	•
Gas Requirements
Fitting and pipe	½ NPT, min. ⅝” flex line
Supply Pressure (LPG)	11″ to 14″ W.C
Performance
Sealed Dual Flow Burners™	5
Sealed cooking surface	•
Simmer on all burners	140°F
Power requirements
Amperage	15A
Supply frequency	60Hz
Supply voltage	120VV
Product dimensions
Depth	21″
Height	5 1/2″
Width	36″
Recommended Back Guards Ventilation
Downdraft	HD36
Minimum CFM	600 BTU
Pro hood	HCB36-12 N / HCB36-6 N
Traditional hood	ES36
Safety
ADA compliant	•
Warranty
Parts and labor	2 years
SKU	82025
