RF135BDLUX4 N Freestanding
Refrigerator Freezer
User Guide
Series 5 | Contemporary
Stainless Steel | Left hinge

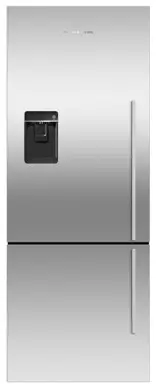

RF135BDLUX4 N Freestanding Refrigerator Freezer
With generous storage and stylish stainless steel design for a timeless look.
- Bottom freezer
- ActiveSmart™ helps keep food fresher for longer
- Brushed metal handles

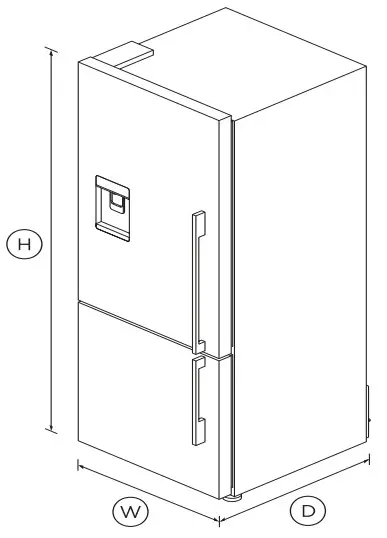

DIMENSIONS
| Height | 67 3/4″ |
| Width | 25″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
EASY CLEANING
No more stubborn dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials.
We use real stainless steel on our refrigerators and solid glass for shelving.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | 25378 |
| Joiner kit | 819264 |
| Matching Replacement Water | FWC3 |
| Surround Kit (Joined left/right | Part number 24470 |
| Surround Kit (Right Hand) | 24469 |
| Capacity | |
| Volume freezer | 3.8cu ft |
| Volume refrigerator | 9.6cu ft |
| Consumption | |
| Energy usage | 545kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 2 |
| Ultra slim water dispenser | • |
| Water Filter | Part number 847200 |
| Wi-Fi connectivity | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Slide Out Pastry Tray | • |
| Small plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 67 3/4″ |
| Minimum air clearance – at rear | 1 3/16″ |
| Minimum air clearance – each | 1 3/16″ |
| Width | 25″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26270 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
