21346 70 Inch TV Stand with Fireplace
Instruction Manual
Assembly Instruction
HARDWARE & PARTS LIST
| NO | HARDWARE LIST | QTY |
| 1 | MINIFIX | 24pcs |
| 2 | WOOD DOWEL | 52 pcs |
| 3 | POZIHEAD SCREW | 20pcs |
| 4 | L BRACKET | 2pcs |
| 5 | PWA C/B SCREW | 11pcs |
| 6 | METAL L BRACKET | 1pc |
| 7 | PVC PLUG LEG | 4pcs |
| 8 | FIREPLACE | 1pc |
| NO | PART LIST | QTY |
| A | TOP PANEL | 1 pc |
| B | BOTTOM PANEL | 1 pc |
| C | LEFT SIDE PANEL | 1 pc |
| D | RIGHT SIDE PANEL | 1 pc |
| E | UPPER LEG SUPPORT PANEL | 2pcs |
| F | LEG SUPPORT PANEL | 4pcs |
| G | FIX SHELF PANEL | 4pcs |
| H | SUPPORT PANEL | 1 pc |
| I | RAIL PANEL | 2pcs |
| J | LEG PANEL (1) | 2pcs |
| K | LEG PANEL (2) | 2pcs |
USEFUL HINTS BEFORE YOU START:
- Read each step carefully before starting.
- It is important that each step is performed in correct order to avoid difficulties.
- Identify, sort and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratch or damage.
- Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
- Using uncompatible hardware might cause damage to product.

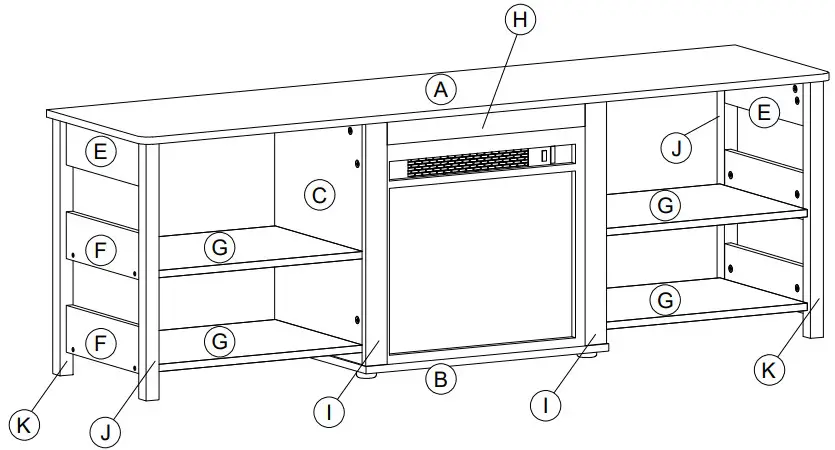

FRONT VIEW

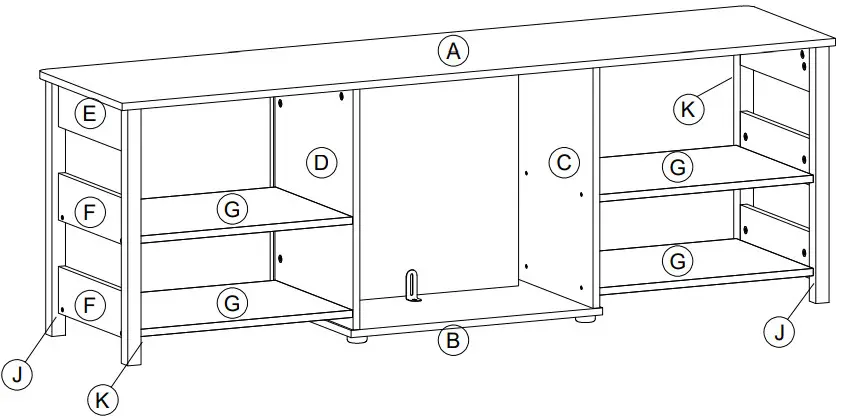

BACK VIEW

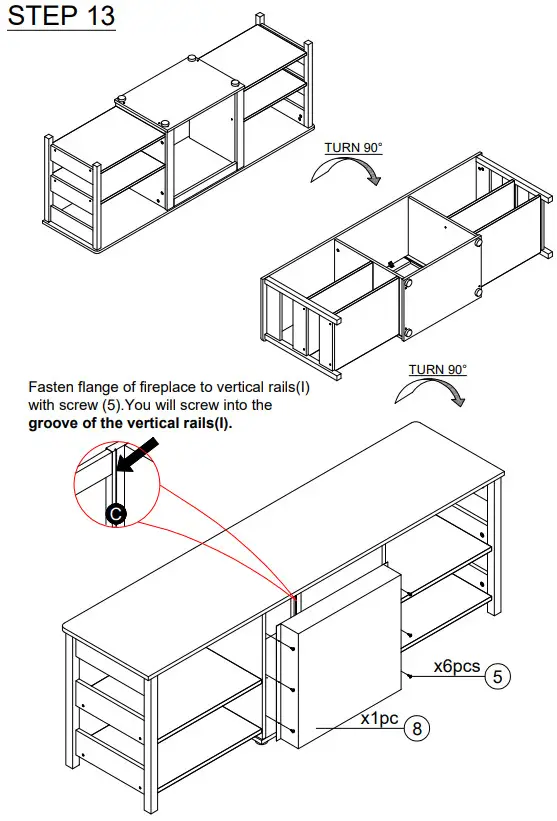

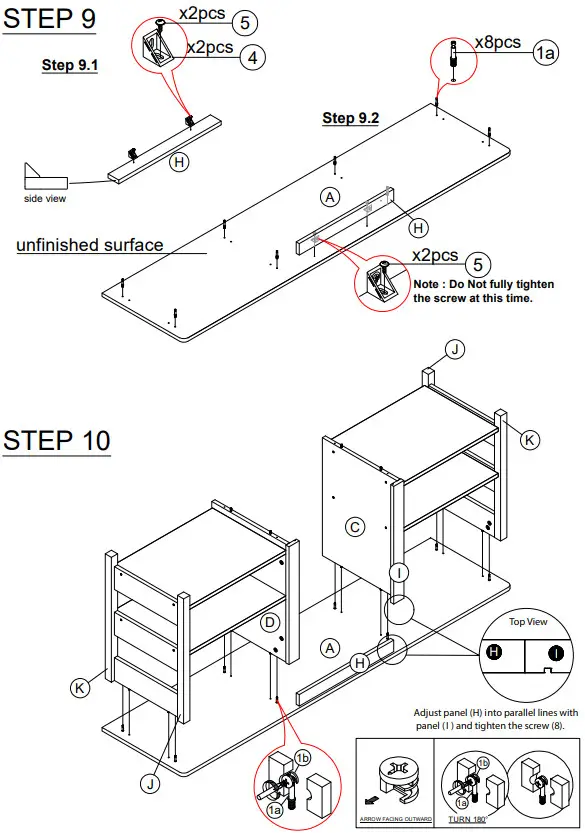

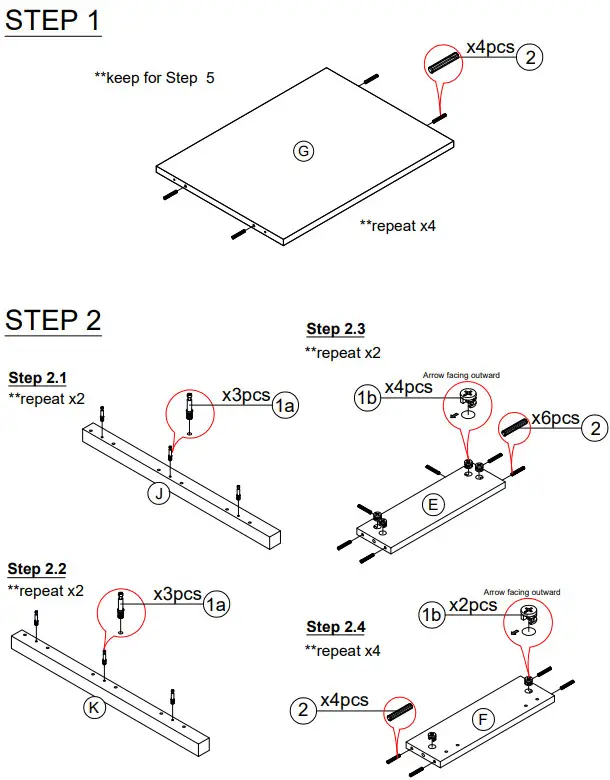

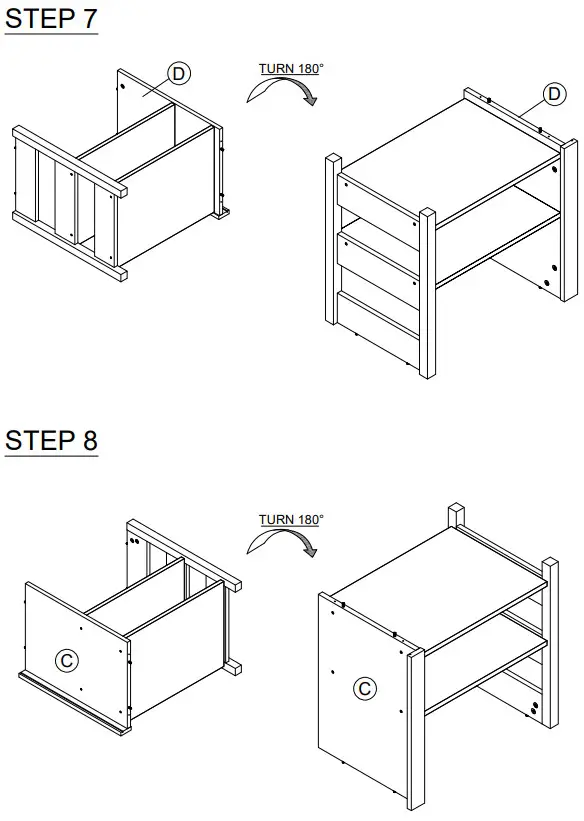

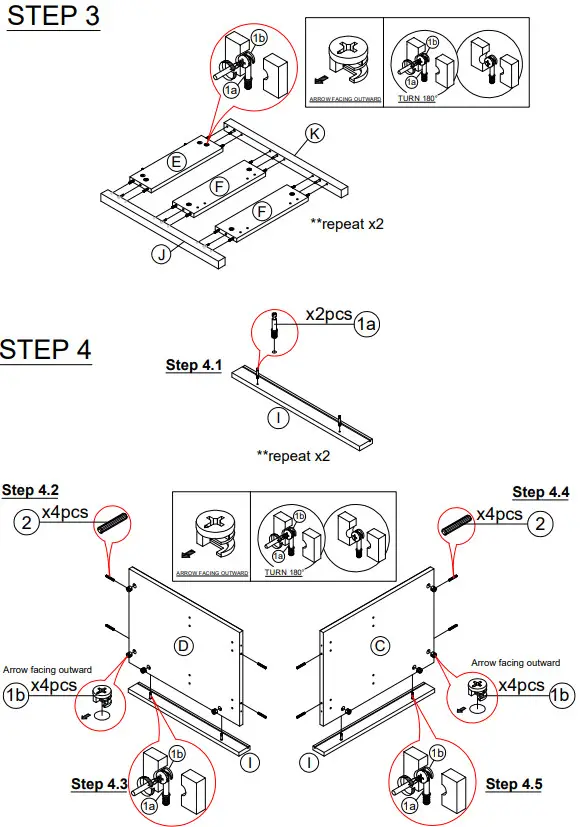

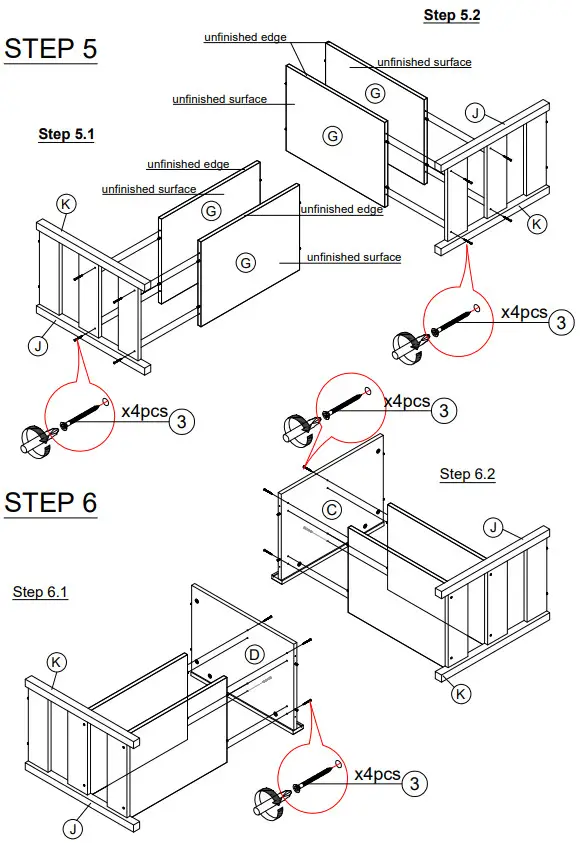

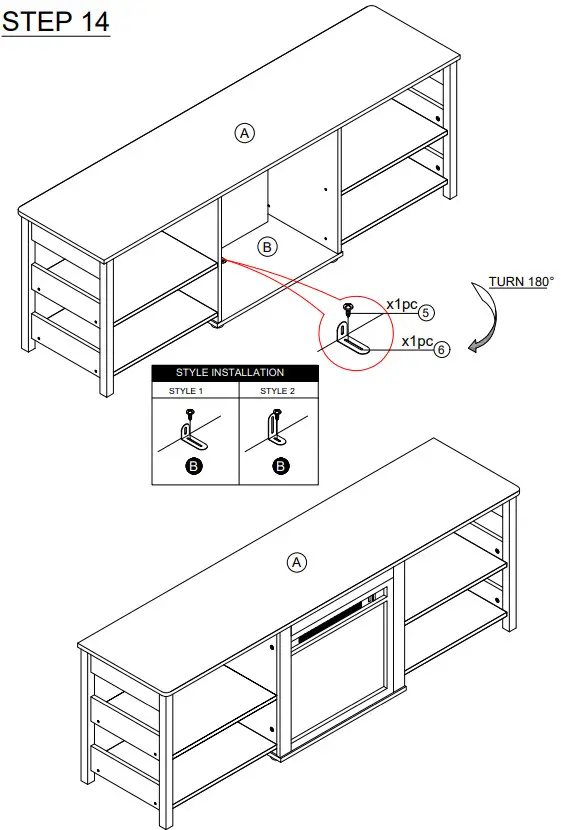

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, FOLLOW THEM STEP BY STEP.

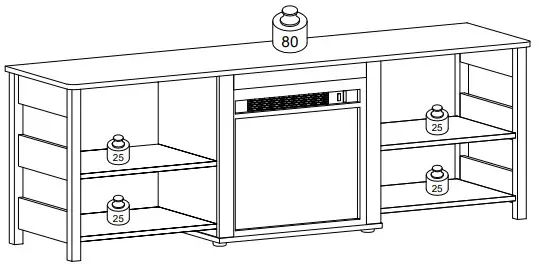

Recommended Maximum Weight
*Unit in Pound(lbs.)
WARNING:
>This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
> Put heavier items on lower shelves.
Customer Support
NEED HELP? For replacement requests or product inquiries, please contact our Customer Service Team by emailing us at [email protected]. Thank you for selecting Furinno!
www.furinno.com
2234620220315
