BOSCH TWK740 Electric Kettle

USING

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.
The danger of electric shock!
Only use the appliance indoors at room temperature and up to  2000 m above sea level. The appliance may only be connected to a  power supply with an alternating current via a correctly installed socket  with earthing. Ensure that the protective conductor system of the  domestic supply has been correctly installed.
Connect and operate the appliance only according to the type plate  speciﬁ cations. To avoid potential hazards, repairs such as replacing  a damaged cable must only be carried out by our customer service  personnel.
This appliance can be used by children aged  8 years and  above and by persons with reduced physical, sensory or mental  capabilities or lack of experience and knowledge if they have been  given supervision or instruction concerning the use of the appliance in a  safe way and if they understand the hazards involved. Keep children  under 8 years of age away from the appliance and connecting  cable and do not allow them to use the appliance. Children shall  not play with the appliance. Cleaning and user maintenance shall  not be made by children unless they are older than 8 years and  supervised. Avoid spillage on the connector. Never immerse the appliance, base  , or mains cable in water. Use the kettle only with the included base. Use only if the power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains  immediately.

Risk of fi re!
Do not place the base or kettle on or near hot surfaces, e.g. hobs.  Avoid spatters of grease as the plastic may be damaged.
Risk of scalding!
The appliance heats up during use. Make sure you only pick it up  by the handle and do not open the lid until the appliance has cooled  down. Only use the appliance when the lid is engaged. If the appliance is ﬁlled above the “max” marking, there could be a  risk of splashes of boiling water.
Risk of burns!
After  use, the heating element surfaces and warming plate can  be subjected to residual heat.

WARNING: Do not use this appliance near bathtubs, showers, basins, or other vessels containing water.

Risk of suﬀ location!
Do not allow children to play with packaging material.
Risk of injury!
Misuse of the appliance can potentially lead to injury.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

Parts and operating controls

Kettle (with water level indicator)
Lid
Lid opening button
On/Off switch, illuminated
Limescale filter (removable)
Base
Cable tidy

Important: Use  kettle 1 only with its  included base 6.

Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate  kettle 1 without water and do not overfill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Before using it for the first time

Remove any stickers or film.
Unroll the right amount of cable from the cable tidy 7 and plug it in.
Fill the kettle 1 with water. Bring the water to a boil and discard it. Repeat the procedure. This will make sure that the kettle is clean for normal use.
When the water comes to a boil for the first time, add a tablespoon of white vinegar.

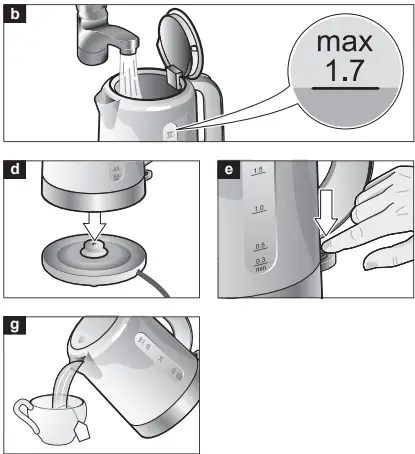

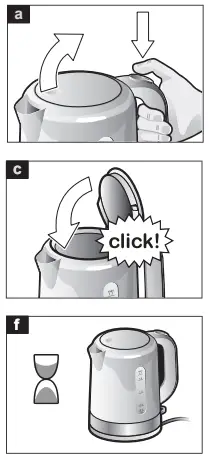

Boiling water

Fill  kettle 1 with fresh water, either through the spout or by pressing the opening button 3 to open  lid 2.
Read the quantity on the water level indicator. Do not fill with less than 0.3 liters or more than 1.7 liters of water!
Close the lid 2.
Press down  switch 4; the switch lights up. The water is heated.
The kettle switches off automatically once the water has boiled.

The appliance can also be switched off at  any time by pulling up  switch 4.
Warning: If you remove  kettle 1 from  the base and replace it before the heating  process is over, the kettle will not continue  to heat the water.
N.B.: Only operate the kettle with  lid 2 closed and the limescale filter 5 inserted, otherwise the kettle will not switch off. For physical reasons,  base 6 may collect some condensation water. This is normal; it does not mean that  kettle 1 leaks. After boiling, let the kettle cool down for 5 minutes before refilling it with water. Do not turn on the appliance if  kettle 1 is empty, otherwise, the overheat control will engage and the appliance will switch itself off automatically.

Cleaning and maintenance

Risk of electric shock!

Never immerse the device in water or place  it in the dishwasher!
Do not steamclean the appliance.
Before cleaning, unplug the appliance from the power outlet.
Clean the outside of  kettle 1 and base 6 with a damp cloth. Do not use strong or abrasive cleaning agents.
Remove the limescale filter 5, soak it in a little vinegar, then rinse clean with clear water.
Rinse the kettle 1 and the limescale filter 5 with clear water.

Descaling Regular descaling

makes your kettle last longer;
ensures proper function;
saves energy.
Descale  kettle 1 with vinegar or a  commercial descaling agent.
Fill  kettle 1 with water up to the 1.7 mark and bring it to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer’s instructions.
Rinse the kettle 1 and the limescale filter 5 with clear water.

Warning: Never use hard objects to  remove limescale residue as this will  damage the seal.
Tip: If you use the kettle daily, descale  more frequently.

Troubleshooting

The appliance does not heat and   switches 4 does not light up.
The overheat control has tripped.

Let  kettle 1 cool down for some time so that the appliance can be switched on again.
The unit turns off before the water comes to  a boil.
The kettle contains too much scale.
Descale the kettle as per the instructions.

Technical specifications

Electrical connection: 220240 V~
(voltage – frequency): 50/60 Hz
Output 18502200: W

Disposal
Dispose of packaging in an environmentally- friendly manner. This appliance is labeled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved.

Customer Service

Great Britain
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton
Milton Keynes MK12 5PT
To arrange an engineer visit, to order
spare parts and accessories or for
product advice please visit
www.bosch-home.co.uk
or call Tel.: 0344 892 8979*
Calls are charged at the basic rate, please
check with your telephone service provider for
exact charges
Beratung und Reparaturauftrag bei Störungen
DE 0911 70 440 040
AT
0810 550 511
CH 0848 840 040
Die Kontaktdaten aller Länder finden Sie im beiliegenden Kundendienst-Verzeichnis.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
9001313704
970510
