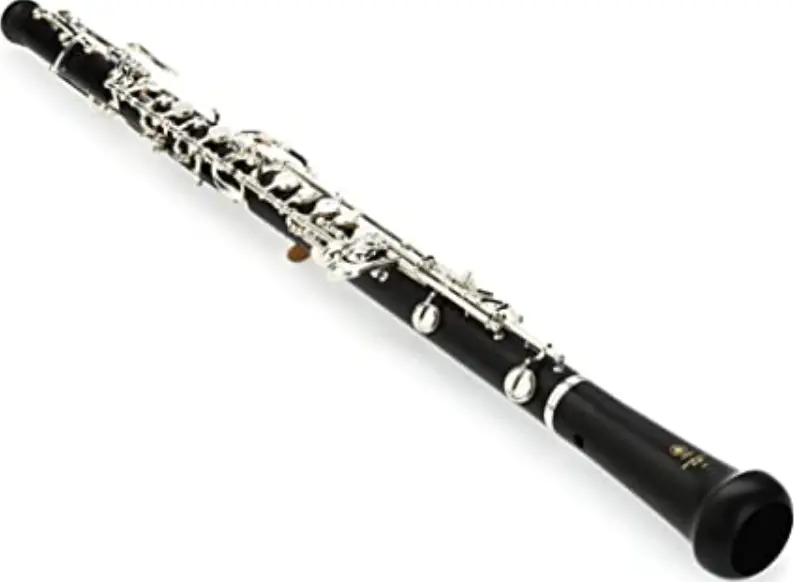

YAMAHA YOB-241 Oboe
You are now the owner of a high quality musical instrument. Thank you for choosing Yamaha.
For instructions on the proper assembly of the instrument, and how to keep the instrument in optimum condition for as long as possible, we urge you to read this Owner’s Manual thoroughly.

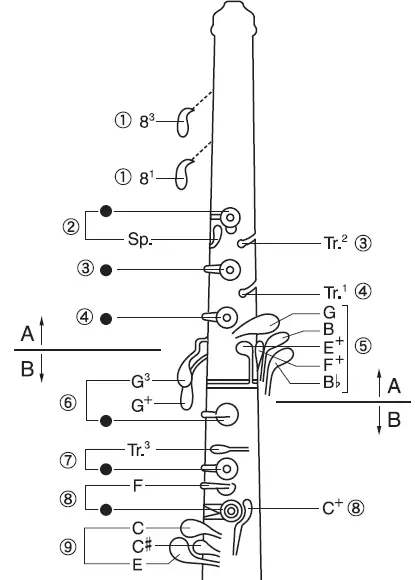

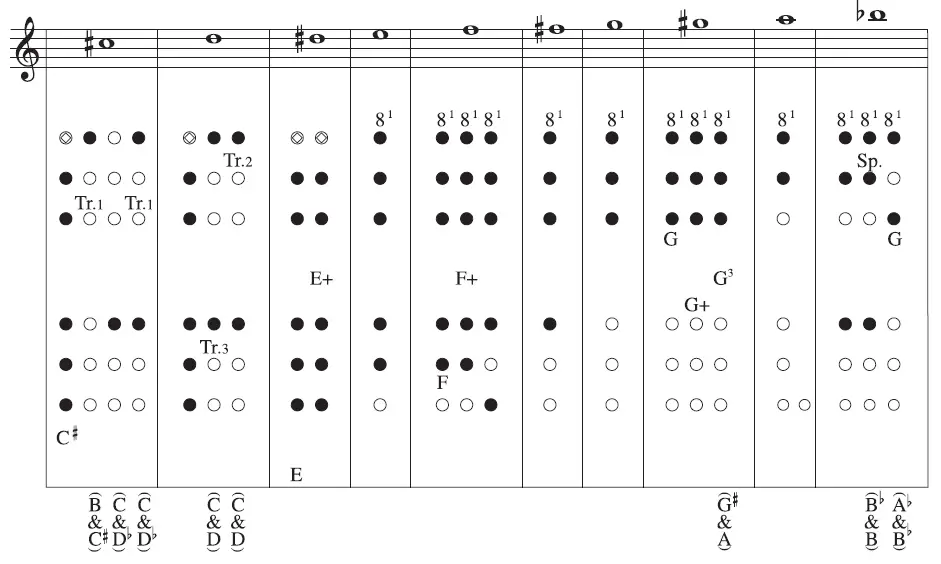

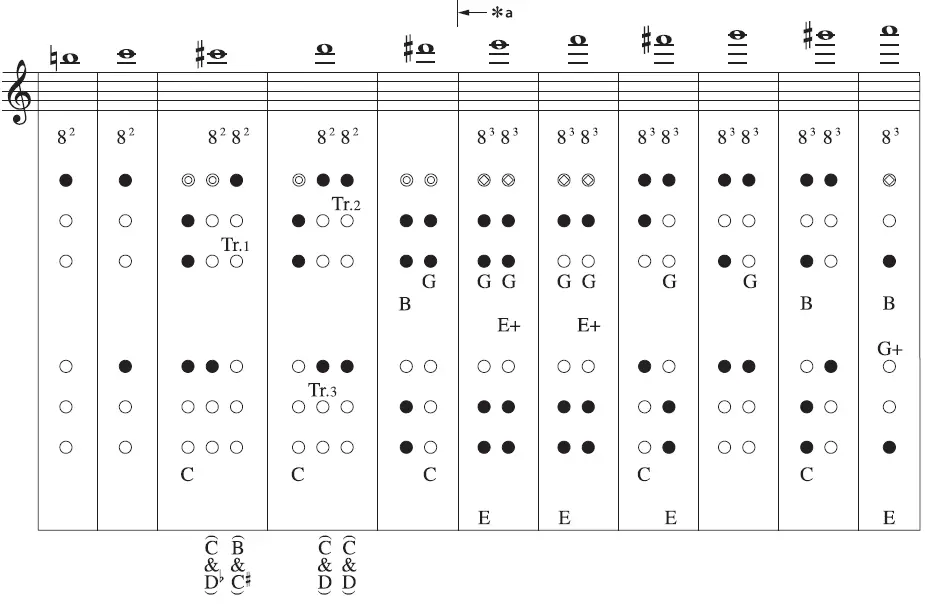

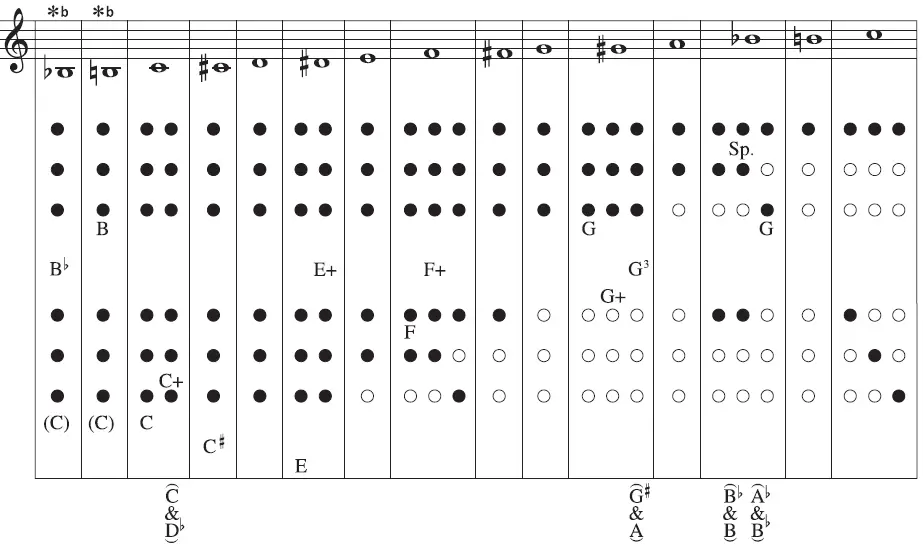

Fingering chart for semi-automatic keys
- A Left hand
- B Right hand
- Close
- Open
- Half hole
- Left index finger open key
G, G+, and G3 are G# keys. E and E+ are Eb keys. 81 is the first octave key. 82 is the second octave key. 83 is the third octave key. Sp. is a spatula key
G, G+, and G3 are G# keys. E and E+ are Eb keys. 81 is the first octave key. 82 is the second octave key. 83 is the third octave key. Sp. is a spatula key
Fingering chart for full-automatic keys
- A Left hand
- B Right hand
- Close
- Open
- Half hole
- Left index finger open key
G, G+, and G3 are G# keys. E and E+ are Eb keys. 81 is the first octave key. 82 is the second octave key. 83 is the third octave key. Sp. is a spatula key
G, G+, and G3 are G# keys. E and E+ are Eb keys. 81 is the first octave key. 82 is the second octave key. 83 is the third octave key. Sp. is a spatula key
- ‘b : When Low B-C is linked, C key is unnecessary.
- ‘C : When Low B-C is linked, this fingering is not possible.
