USER MANUAL

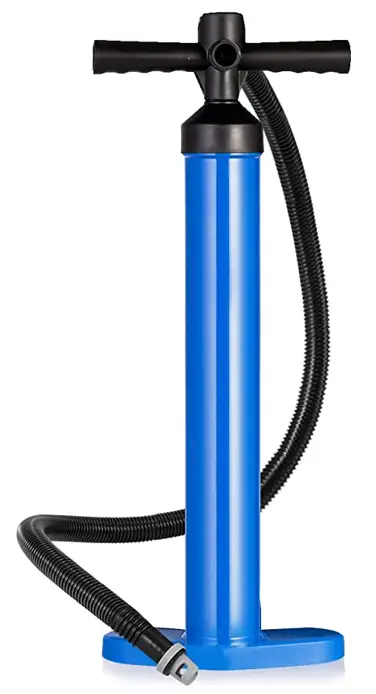

SUP Board Pump
PRODUCT PARAMETERS
Product Name: SUP Board Pump
Product Dimensions: 7.5 x 25 x 63 CM
Capacity: 2 x 1800CC (2 x 1.8L)
Max Pressure: 2.0 BAR (29 PSI)
Color: Black
Application: Inflatable SUP board, tent, kayak, etc.

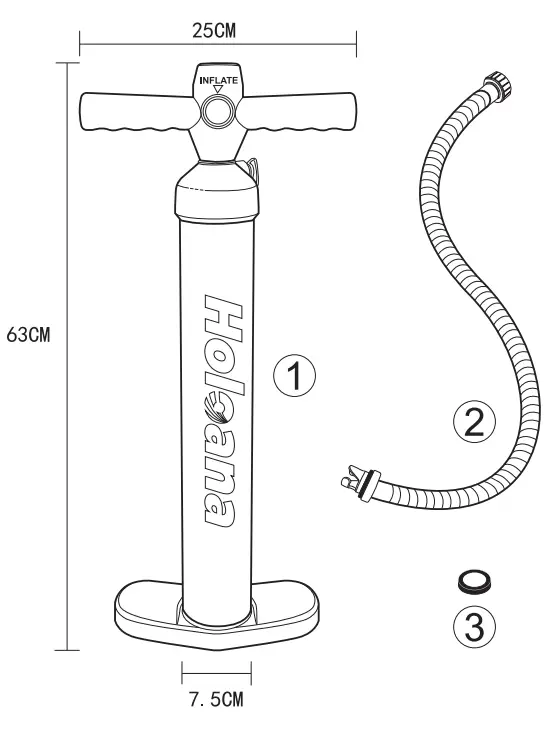

ACCESSORIES
- Inflator
- Flexible rubber hose
- Rubber o ring

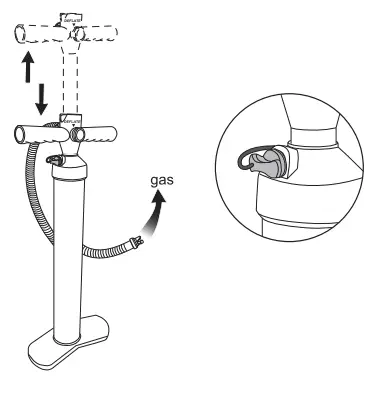

FUNCTION TIPS
Two modes -flexible switching for quick inflation

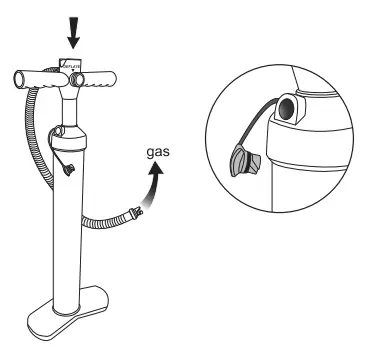

- Double-action mode:
When the valve is closed, pump air on both up and down strokes, which maximizes the airflow and makes inflation fast.
- Single-action mode:
At high pressure, open the valve to make it easier to inflate, and pump air on only down strokes.

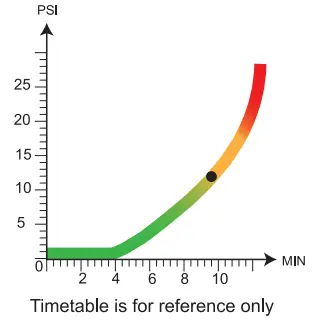

NOTE
- In the using process, the pressure gauge will not work until the SUP air pressure exceeds or equals 2 PSI.
(That is, the pressure gauge will not change within 3-5 minutes of the inflation time, but it will start to work when the inflation time is 5-8 minutes.)
INSTALLATION TIPS

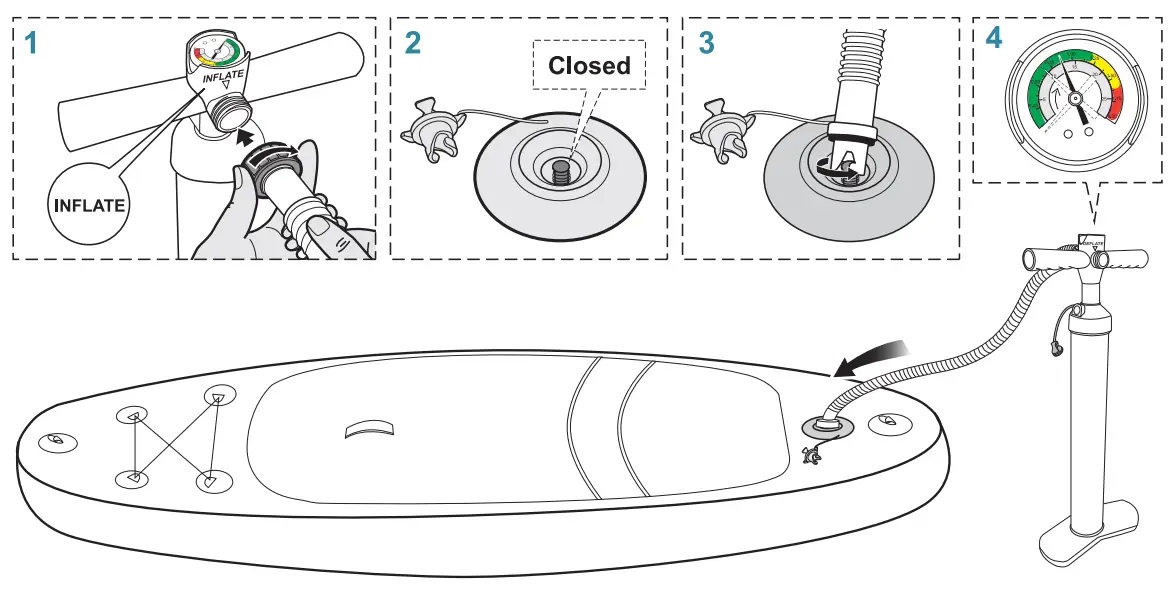

INFLATE
- Install the rubber hose to the pump inflator (INFLATE) and tighten the nut.
- Open the SUP board inflation valve, and make sure the middle plug of the inflation valve is closed.
- Insert the rubber hose into the SUP board inflation valve and tighten it to inflate.
- Use double-action mode to pump up the SUP board for about 3-5 minutes, until the pressure gauge starts to work, then switch to single-action mode.
- Precaution: When inflating, please make sure the pressure gauge is within the safety range of about 12 PSI.
DEFLATE
- Open the SUP board inflation valve, and press the middle plug to deflate. (NOTE: The deflation sound will be loud at the first few sec.)
- If the gas inside the SUP board does not deflate automatically, then install the rubber hose to the pump deflator(DEFLATE) and tighten the nut.
- Insert the rubber hose into the SUP board inflation valve and tighten it to deflate.
