Criuse Dls Crpp-2.6 2 Component Acoustics Dls Cruise User Manual

CRPP-2.6
User manual
Seat / Skoda / VW

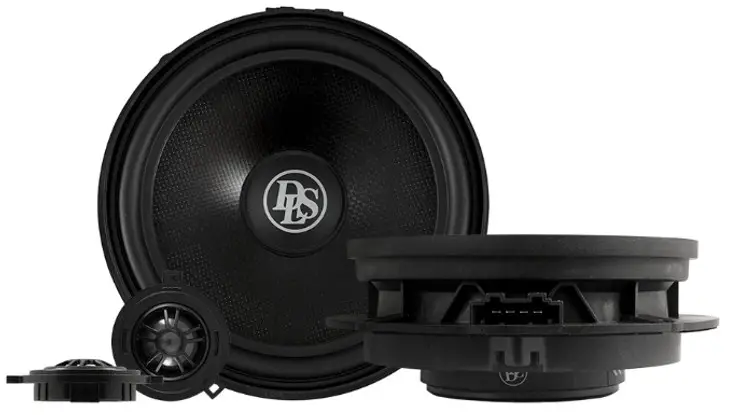

DLS CRPP-2.6 2 Component Acoustics DLS Cruise

Welcome to DLS!
Thank you for buying a DLS Cruise CRPP-2.6. For us, it’s all about the sound experience. We care deeply about sound and construction quality. In order for your experience to be as optimal as possible, it is important that you fully read this manual, preferably before you start your installation. Keep the manual in a safe and accessible place for future reference.
Your speakers must be installed correctly in order to work as intended. Make sure you have all necessary tools nearby before starting and that you are completely confident in how to process. If you feel the slightest uncertainty; feel free to take the help of an experienced installer or a car audio dealer.
Warranty
This component kit is covered by warranty, depending on the conditions in the country where it is sold. If the speaker is returned for service, please include the original dated receipt with the product.
General
Some sound systems may vary in size of the door speaker. Make sure that your vehicle has the same size as this kit, before you start the assembly
This is a generic mounting instruction. The approach is similar to all of the described car models. Some screws and clips may be placed differently and depending, if the tweeter is placed in the A-pillar or side mirror, the course of action may vary.
DECLARATION OF CONFORMITY
DLS plug and play speakers for vehicles are manufactured in accordance with the EU directive EEC 95/54 (72/245/ EEC) and are marked with the approval number. They are also marked in accordance with the WEEE-directive 2012/19/EC. The products are also produced in accordance with the EU RoHS directive 2015/863/EU.
Included products:
2pcs Woofer
2pcs Tweeter
2pcs Crossover
Included in box:
2pcs Tweeter connection
4pcs Adhesive foam for wrapping
4pcs Terminal crimp connectors
2pcs Four-leaf clover foam for tweeter
10pcs Blind rivet
1pcs Rivet Tool
1pcs Manual

Pre installation

Disconnect Battery
Before you start the process of replacing speakers,
disconnect and secure the negative terminal from your battery/power source. This will prevent the risk of damaging yourself or the products.
Place the disconnected terminal in a secure and isolated location away from any possible connection belonging to the battery/power source system.

General info

Some sound systems may vary in size of the door speaker. Make sure that your vehicle has the same size as this kit, before you start the assembly This is a generic mounting instruction. The approach is similar to all of the described car models. Some screws and clips may be placed differently and depending, if the tweeter is placed in the A-pillar or side mirror, the course of action may vary.

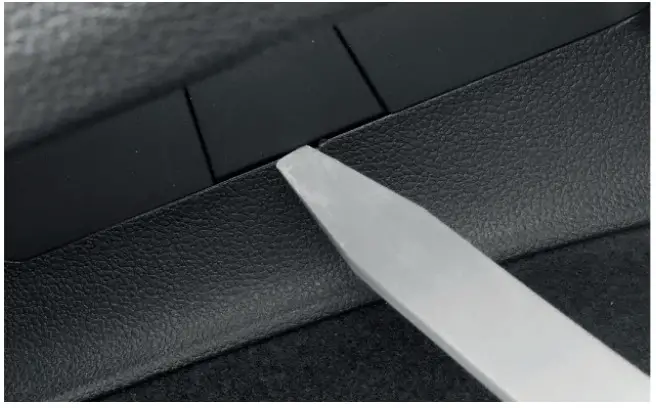

Be careful when removing the panels and lids, so there will be no marks. Use plastic PRY tools to avoid marks on the panels and destroy the plastic clips.

Installation

Start the dismount

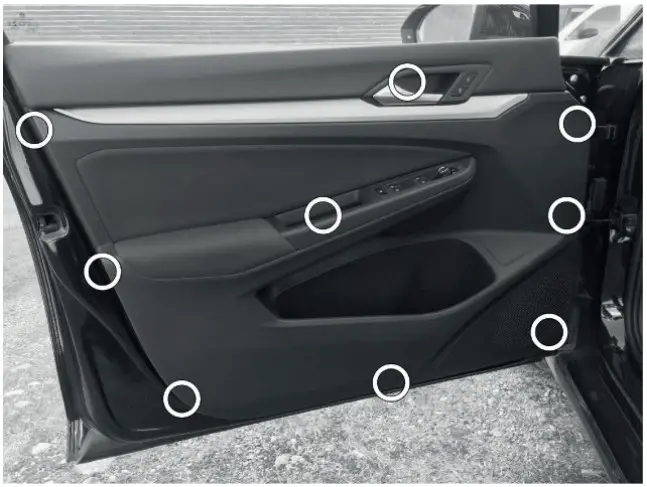

Dismount the front door by removing the cover of the door panel.Usually the clips/screws are placed by the red marks. It may be different in your vehicle. In most cases the screws used are Torx T30. Unscrew them and store them in a safe position, to re-use when re-mounting the door panel.

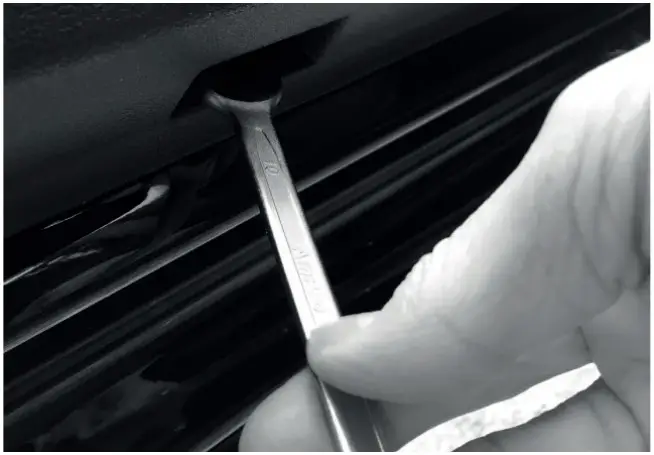

Use a wrench, size 10. Normally the bolt is located at the underside of the door. Turn bolt 90 degrees.When the door panel is loose, start with softly lifting it straight up, to remove the panel.

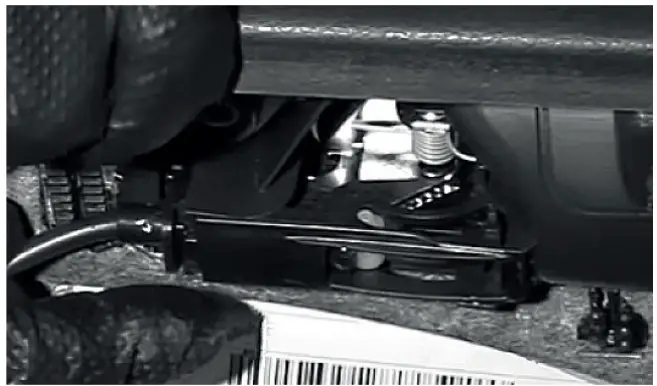

There are several electric and mechanical connectors on the backside of the panel. Release the door lock cableDisconnect the window control panel, cables for lights, speaker cable harness and any other connections.

Removing woofer

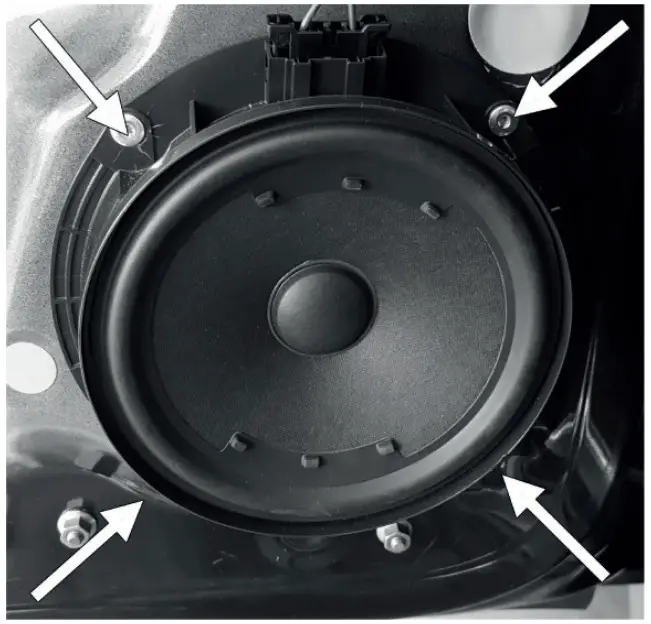

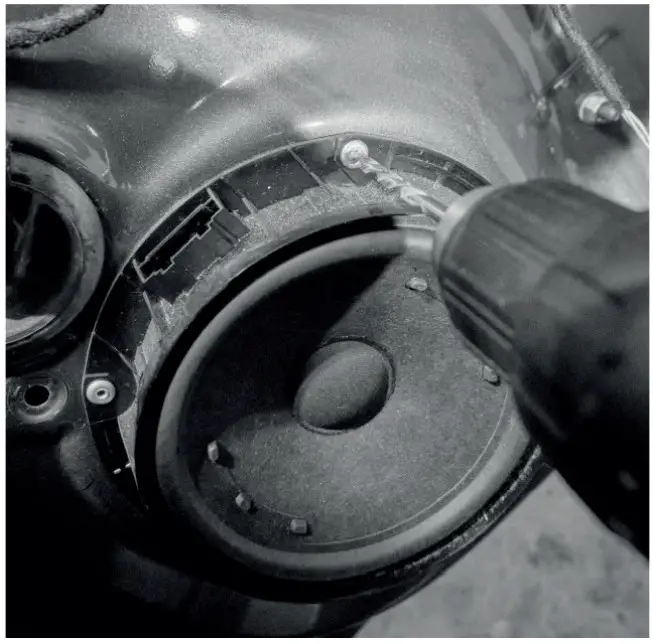

The door speakers are fixed with rivets.Use a 4mm drill to remove the rivets. Make sure all remains from the old rivets are removed from the inside of the door.Just drill enough to remove the top of the rivets

Mounting DLS drivers

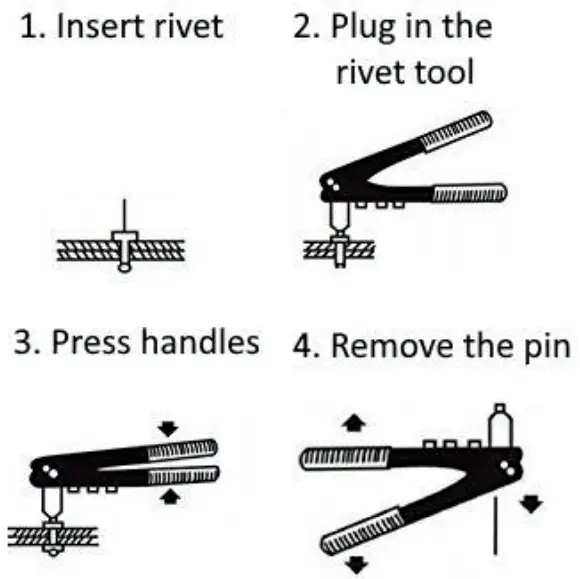

Place the new DLS driver in the hole for the speaker. Use the included rivets and the rivet tool to safely mount the driver.
(Step 3 might be done several times)Connect the speaker harness.
Start the assembly of the door panel.
Reconnect all wires harness.
Connect all plugs to the door cover, reconnect the unlocking device, place the door cover from the top, by the window seal and push it gently down. Make sure the clips are in place and can engage. Give the door panel a push by the hand to attach to the clips. Mount and fasten all screws to the correct places.

Change Tweeter

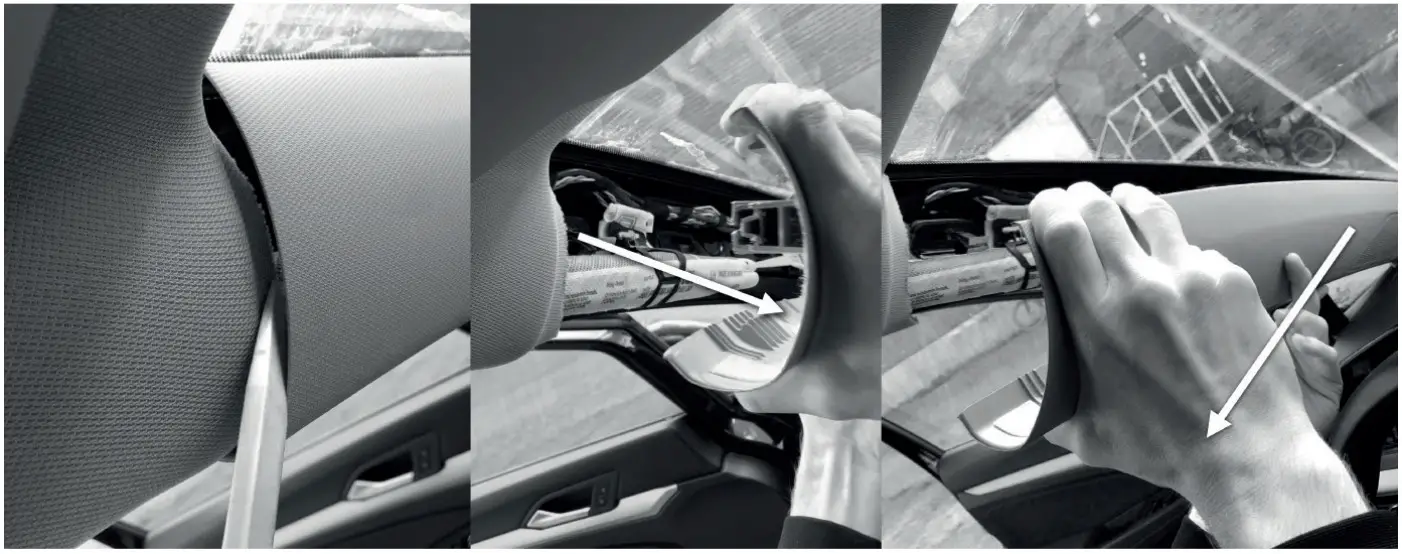

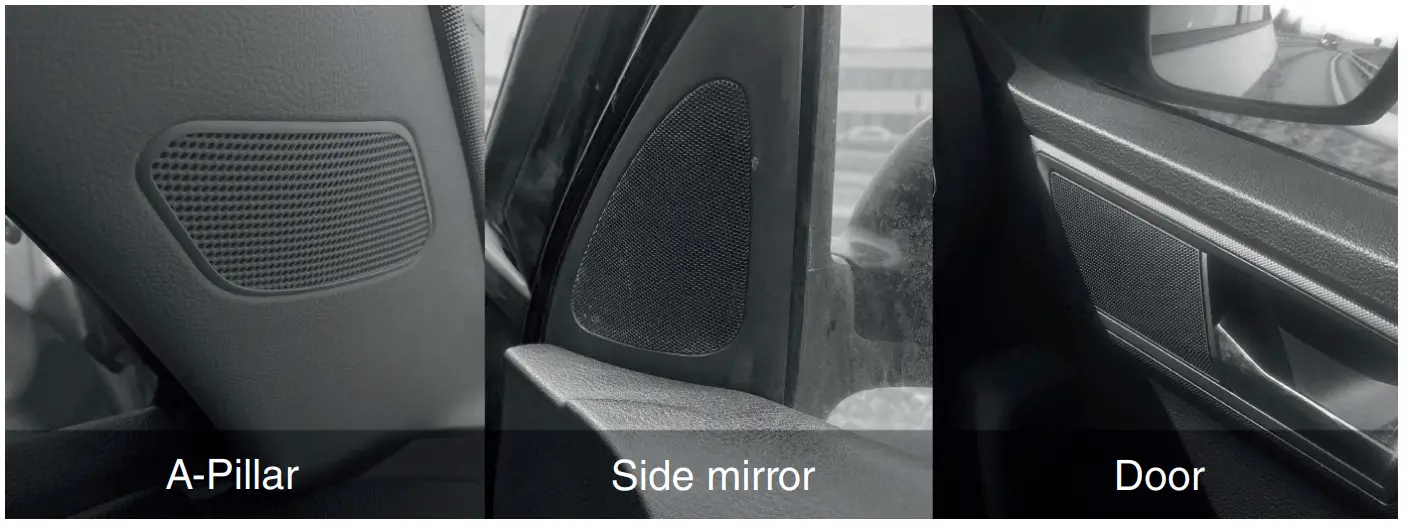

Locate the tweeter – Either in the A-pillar, by the side mirror or in same case in the door by the handle.Dismount over and remove the covers. Use Plastic PRY tools and be careful, there can be air-bags behind the A-Pillar. The first clip can be really hard to remove. Take it easy and use minimal force.

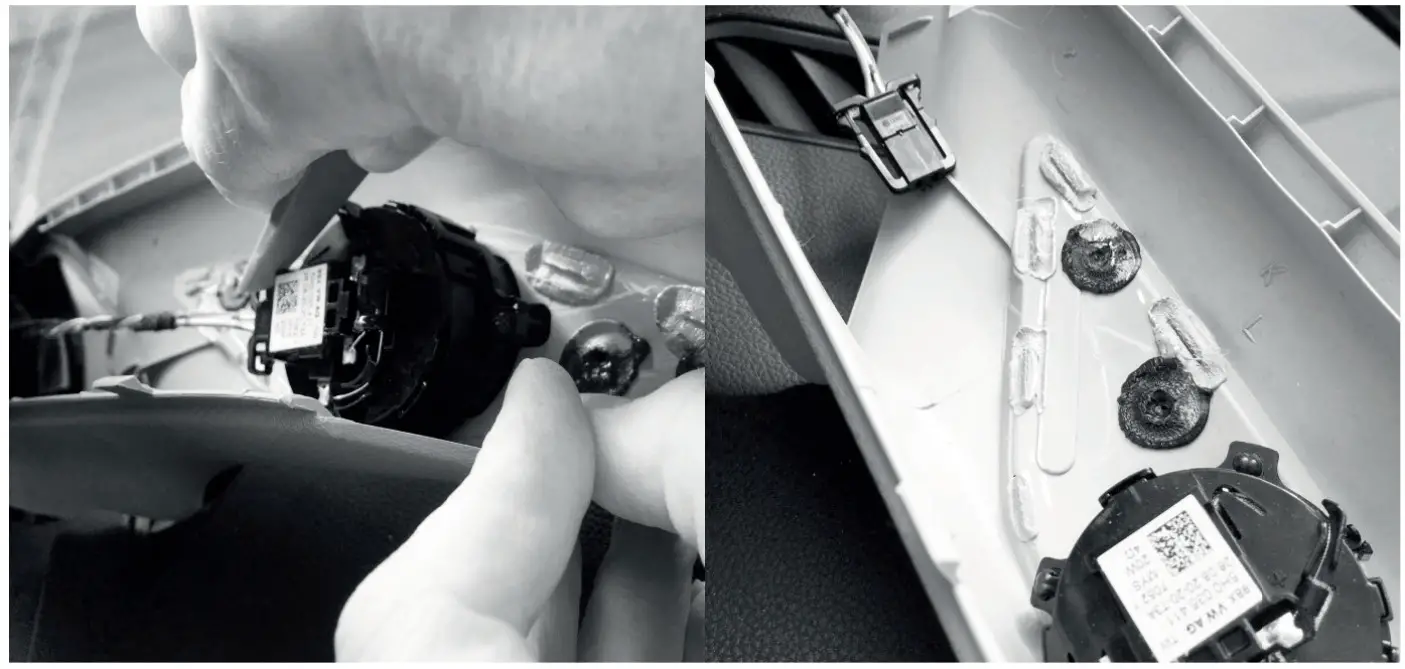

(This shows how to unmount the A-pillar tweeter)Un-clip the speaker connector from tweeter

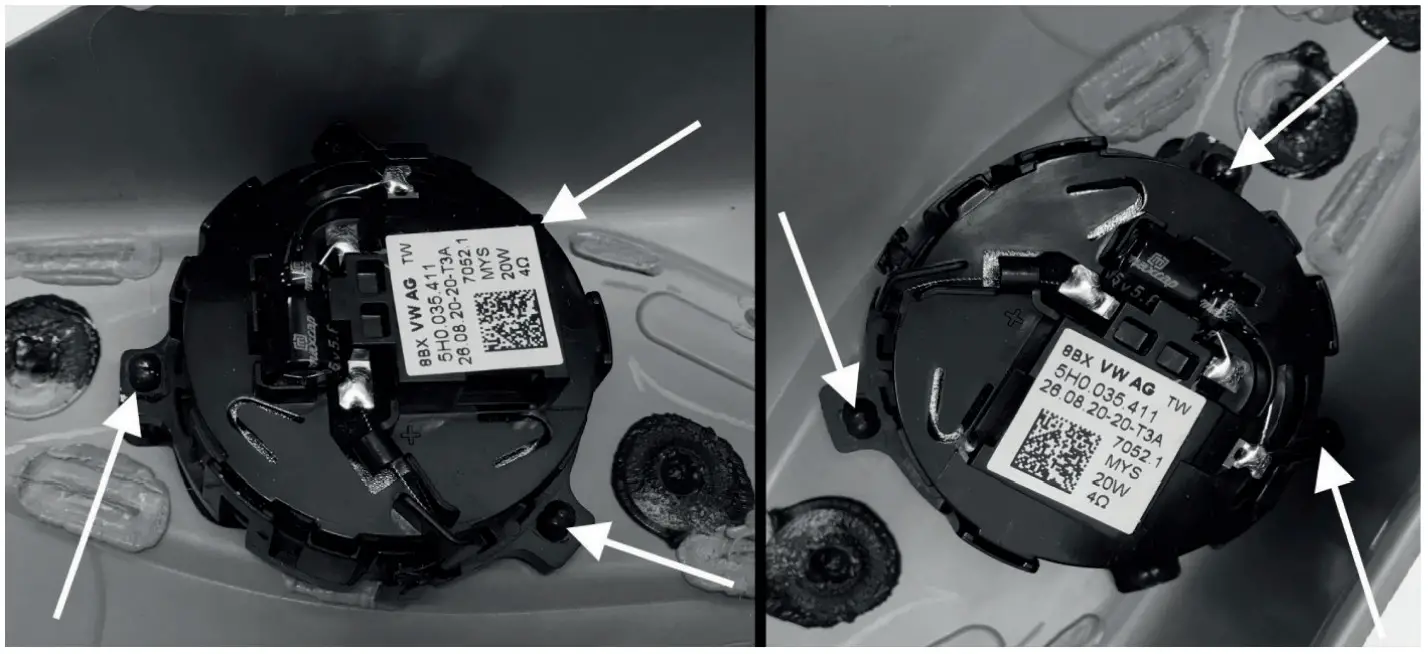

Remove old tweeter

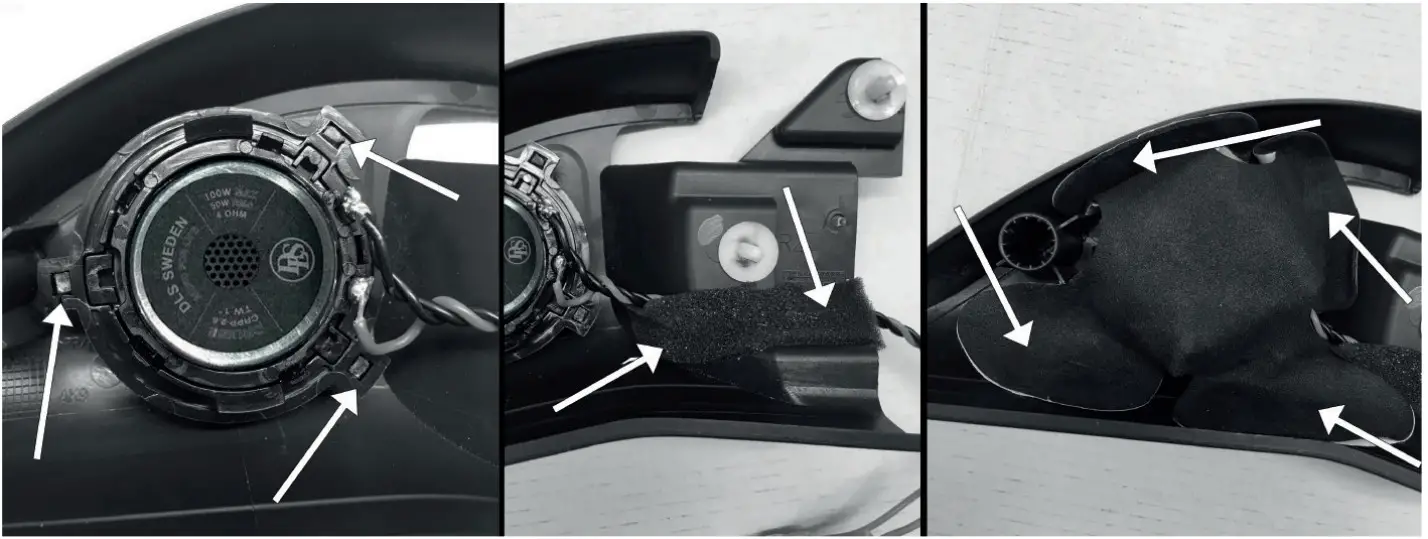

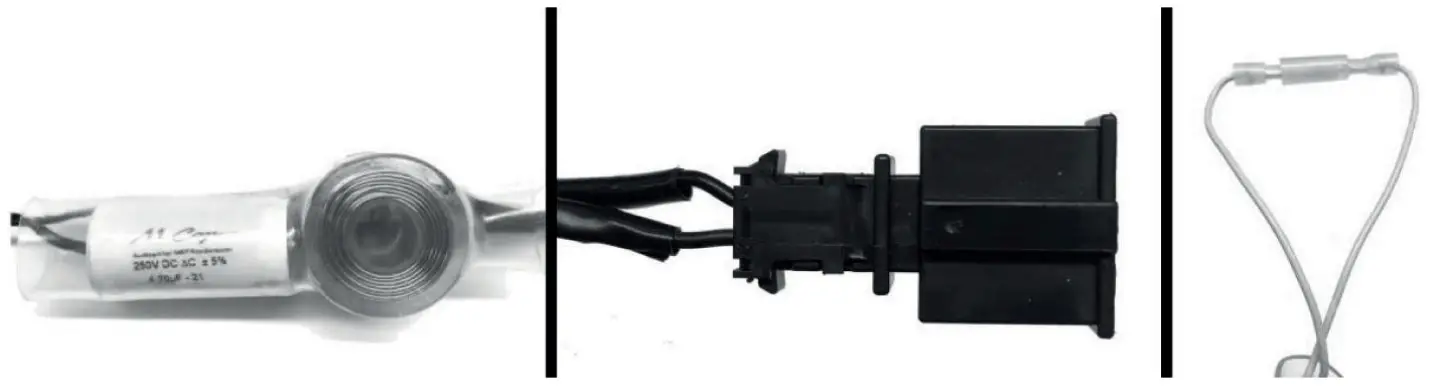

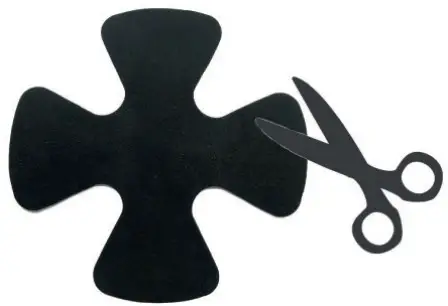

Use a cutting nipper or a Snap-off blade knife to remove the top of the plastic pin that holds the tweeter. Don’t remove the whole pin, just the top!Change the tweeter, and place it where the OEM tweeter used to be. Make sure that the DLS tweeter is properly fixed. Remove the protecting plastic sheet from the adhesive four-leaf clover and use it to hold the new tweeter in place. Make sure the tweeter is fixed in a safe way.For some models, the four-leaf clover needs to be adapted. Use a sharp scissor to modify it.Connect the crossover with the PnP connector. Use the other adhesive foam to secure the crossover and cablesThe yellow cable loop is tweeter level select, enabling fine tuning of the high frequencies
Closed loop = -4dB (Shown in the picture)
Open loop = Normal

Finally

Start assembling the covers again to finish the work. Make sure that no screws or clips are left over, Reconnect the battery/power source terminal.
Finally, it´s time to play some good music and enjoy!

Running-in time

Allow the component kit to play for at least 15-20 hours in order to perform at its possibly best. This run-in can be made with tone sweep or with just music.
Start at a moderate volume and increase the volume step by step during the running in period. After the 15-20 hour run in session the performance and characteristics will be in the correct condition.

DLS Support

For technical assistance, ask your car audio dealer where the product was sold or the distributor in your country. You can always contact the DLS Helpdesk in Sweden at email: [email protected] Information can also be found on our WEB-site www.dls.se We follow a policy of continuous advancement in development. For this reason, all or part of specifications & designs may be changed without prior notice.

Specifications

Electro-Acoustic Parameters Tweeter:

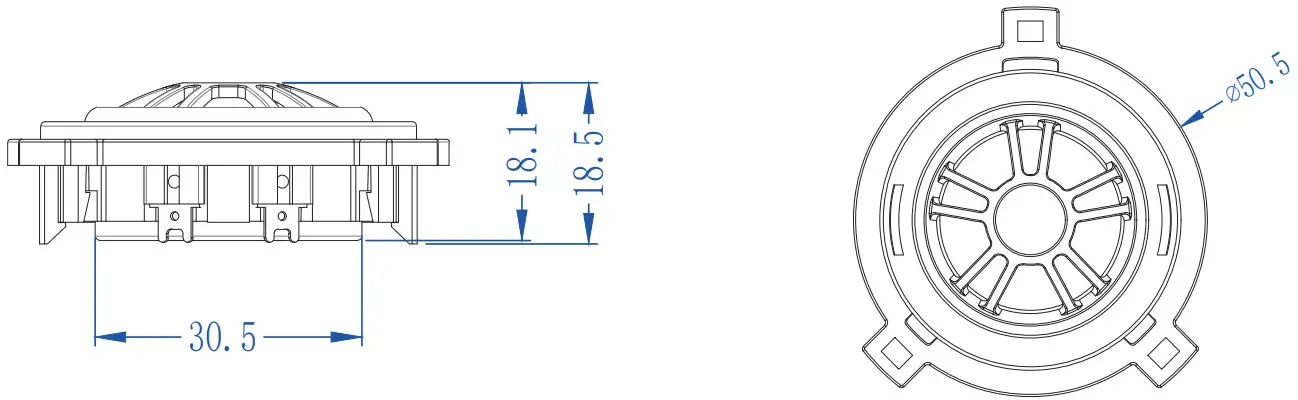

DLS DRIVE CRPP-2.6 Tweeter
Technical Specification

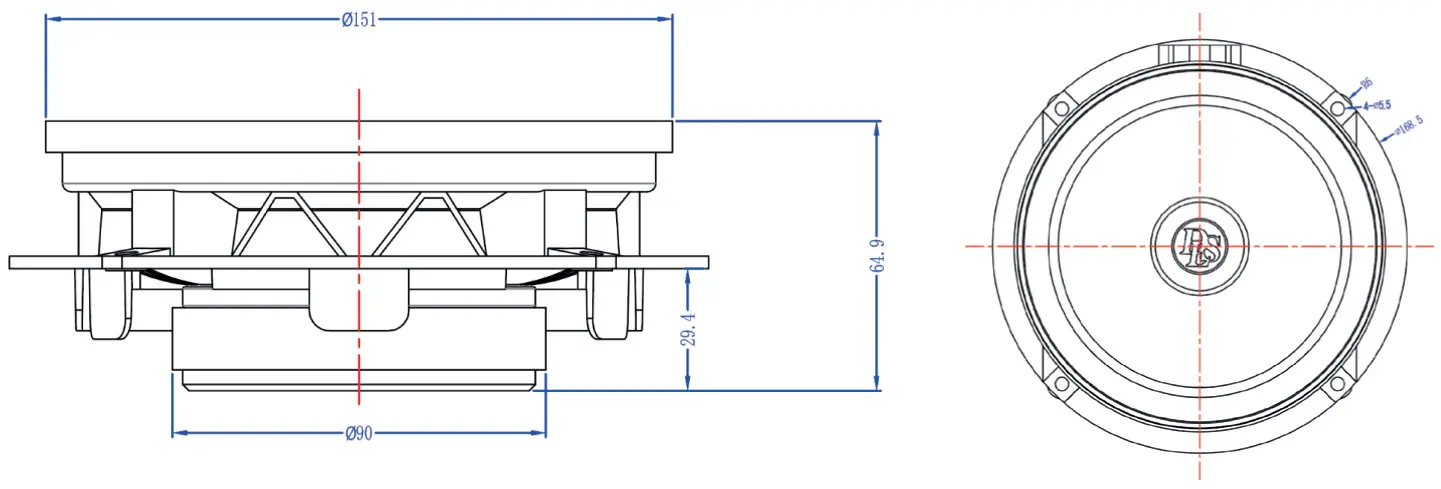

DLS DRIVE CRPP-2.6 Woofer
Technical Specification

Electro-Acoustic Parameters

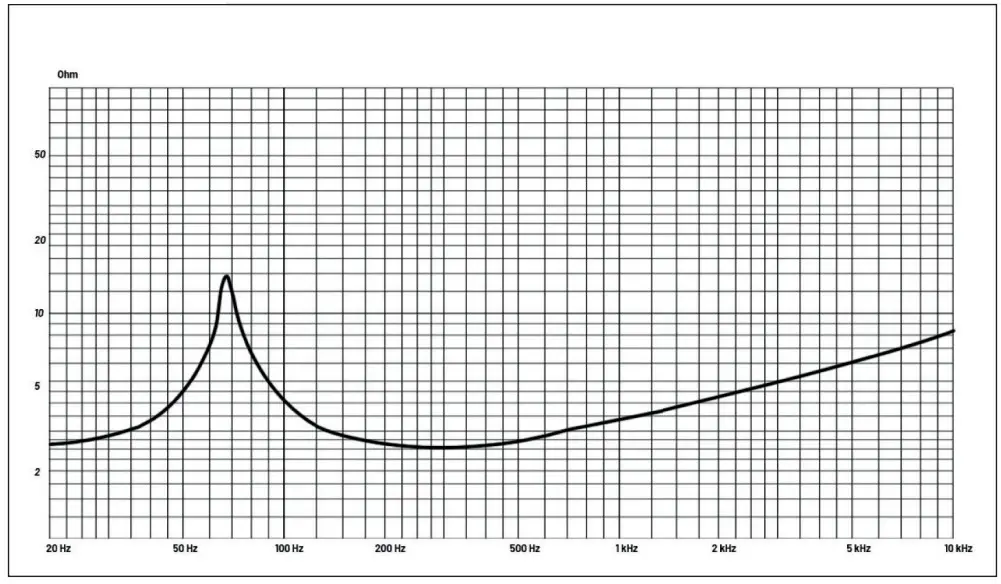

Impedance VS Frequency

DLS Cruise CRPP-2.6 compatible car models

Disclaimer
* DLS CRPP-2.6 is not compatible if your vehicle is with the original Premium Hi-fi system/Dynaudio system/Fender Audio system, or sound system with 8” speakers.
** DLS Recommends CRPP-2.6CX as rear speaker. CRPP-2.6 kit may fit in rear doors if there is a tweeter location.

Product markings

The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority.
This product has been granted with the CE certification mark to show that the product follows the health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).
DLS products complies with the relevant provisions of the RoHS Directive for the European Union. In common with all Electrical and Electronic Equipment (EEE) the product should not be disposed of as household waste. Alternative arrangements may apply in other jurisdictions.
DLS is a global partner of the European Mobile Media Association, an organisation that focus on promoting the custom made mobile media installations to consumers.
We follow a policy of continuous advancement in development. For this reason all or part of specifications & designs may be changed without prior notice. We reserve for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.

DLS speakers are engineered by DLS Sweden, a part of:
Winn Scandinavia AB
Elementvägen 15 – SE-702 27 Örebro – Sweden
Tel: +46 19 20 67 65 – E-mail: [email protected]
www.dls.se
Designed & Sound tuned in Sweden.
