truke Fit Pro Power – B121
User Manual
Product Description
Welcome to use truke Fit Pro Power – True Wireless Stereo Bluetooth Earbuds
This product adopts the industry’s advanced single-chip solution, with excellent sound quality and simple operation, which will bring different surprises to your life, work and journey
You can simply connect a single earbud to make a call or listen to the mobile phone navigation tone when you are driving or riding, so that the journey is safe and worry-free.It can also be used in pars (stereo) to enter the wonderful world of music.

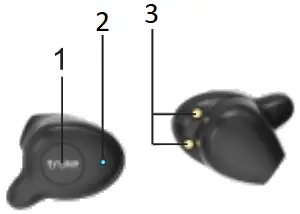

Overview
- Multifunction button
- Led indicator Red/Blue
- Charging pins
- Type-C charging port

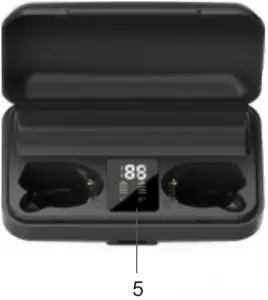

- Battery capacity digital display
Instructions for First Time Use
- Remove the protective plastic film from charging pins of the earbuds if present
- Place earbuds back in charging case to charge for 1 hour
Pairing procedure
- Take out the earbuds form case at same time, both earbuds will start blinking with red and blue led. In few seconds one of the earbud’s red/blue led will stop blinking and other will keep blinking
- Turn on mobile’s Bluetooth and search for new device. Then select truke Fit pro power, now your Fit pro power earbuds will be paired with mobile and ready to use
General Functions & Operations
| Power on | Press and hold the button for 2 seconds to turn it on, the red and blue lights flash |
| Earbuds Pairing | 1. Earbuds will automatically start & pair when it is taken out from the charging Case 2. Connected Tone is played when earbuds and mobile phone connect successful 3. Disconnected Tone is played when earbuds and mobile phone is disconnected |
| Power off | Earbuds turns off automatically when earbuds are placed into the charging case Both earbuds turn off, when any earbud is pressed for more than 5 seconds |
| Operating language | English |
| Bluetooth name | truke Fit pro power |
| Play / Pause | Press the earbuds button |
| Call answering | Press the earbuds button |
| Disconnect incoming call | Press and hold the earbuds button for 2 seconds |
| Automatic redial function | Double Press Right earbuds button to call back the last call |
| Earbuds Remaining Battery | Earbuds Remaining Battery will be displayed on supported mobile device Earbuds Remaining Battery will be indicated with battery capacity digital display with charging case |
| Low Battery Prompt | Red LED starts flashing when voltage is lower than 3.3v |
| Previous & next song | Previous song: Press left earbuds for 2 seconds Next song: Press right earbuds for 2 seconds |
| Google Assistant / Siri | Double Press Left Earbud |
| Call Redial | Double Press Right Earbud |
| Volume adjustment | Not Supported through Earbuds |
| Charging indication | Earbuds Charging: The red light of Earbuds is always on while charging When the earbuds is fully charged, the blue light will be displayed and the blue light will goes out after 30 secondsCharging Case: During the charging process of the charging Case, The Red Light of the LED in the Charging Case is always on and the battery capacity digital display will show charging state. When the Charging Case Battery is fully charged, the red light turns always on and battery capacity display will display will show charging state |
Troubleshooting
- Unable to start
Charge the earbuds for 30 minutes and then turn it on - Earbuds Cannot Pair
Go to the mobile’s menu and forget/unpair the truke Fit Pro Power. Pair the device again. - Cannot Connect to Mobile Device
Turn off the earbuds by putting them in charging case. Turn off Mobile Device Bluetooth function then turn it on again. Take out the earbuds from case and connect - The earbuds can’t be charged
Press the button on the case if no led is lit or only one is blinking charge the case first Make sure earbud are placed in case with right orientation, gently press them in place
Performance Parameters
| Model Number Bluetooth version | B121 | Charging input | 5V 1A |
| 5.0 | Operating Voltage | 3.7V | |
| Talk-Time | 4 hours* | Headphone Battery | 40mAh 3.7V |
| Music Playback Time | 4-5 hours* | Charging Case Battery | 2000mAh 3.7V |
| Standby duration | 72 hours* | Charging Interface | Type-C |
| Net weight | 74 grams | Charging time | Earbuds charging time :27 minutes* Charging case charging time :150 minutes |
| Waterproof Level | Splash proof | Dimension | Charging Case: 77*47*27mm Earbuds: 26*20*17mm |
*Talk-Time, Music Playback & Charging Time are mentionectlen ideal lab conditions Under daily usage, actual time may vary
Precautions
- Do not use this product under high temperature, high humidity, high cold, high dust, high electromagnetic radiation and lightning environment
- Do not use non-original charging accessories to charge
- Charging time should not exceed 3 hours
- Recharge every 30 days when not in use for a long time
- Do not exceed 60 decibels when used for a long time to avoid hearing damage
- Do not disassemble by any unauthorized personnel, otherwise warranty will be void
- After the product has expired, it can be sent to a professional recycling agency. Do not discard it at will, so as not to pollute the environment
Customer Care
For any queries/complaints, please feel free to WhatsApp us on +91-9354170767
Or
Write to us at [email protected]
Mandatory Registration is required at www.truke.in within 10days of purchase
